Features
- Three phase 500VAC 30A
General purpose Low profile
Ultra high-attenuation type from 9kHz to 1MHz
1-stage filter - Maximum input voltage 528VAC: 10% fluctuations in voltage 480VAC
Selectable leakage current value
Push down type terminal block - The terminal cover is retracted inside the unit.

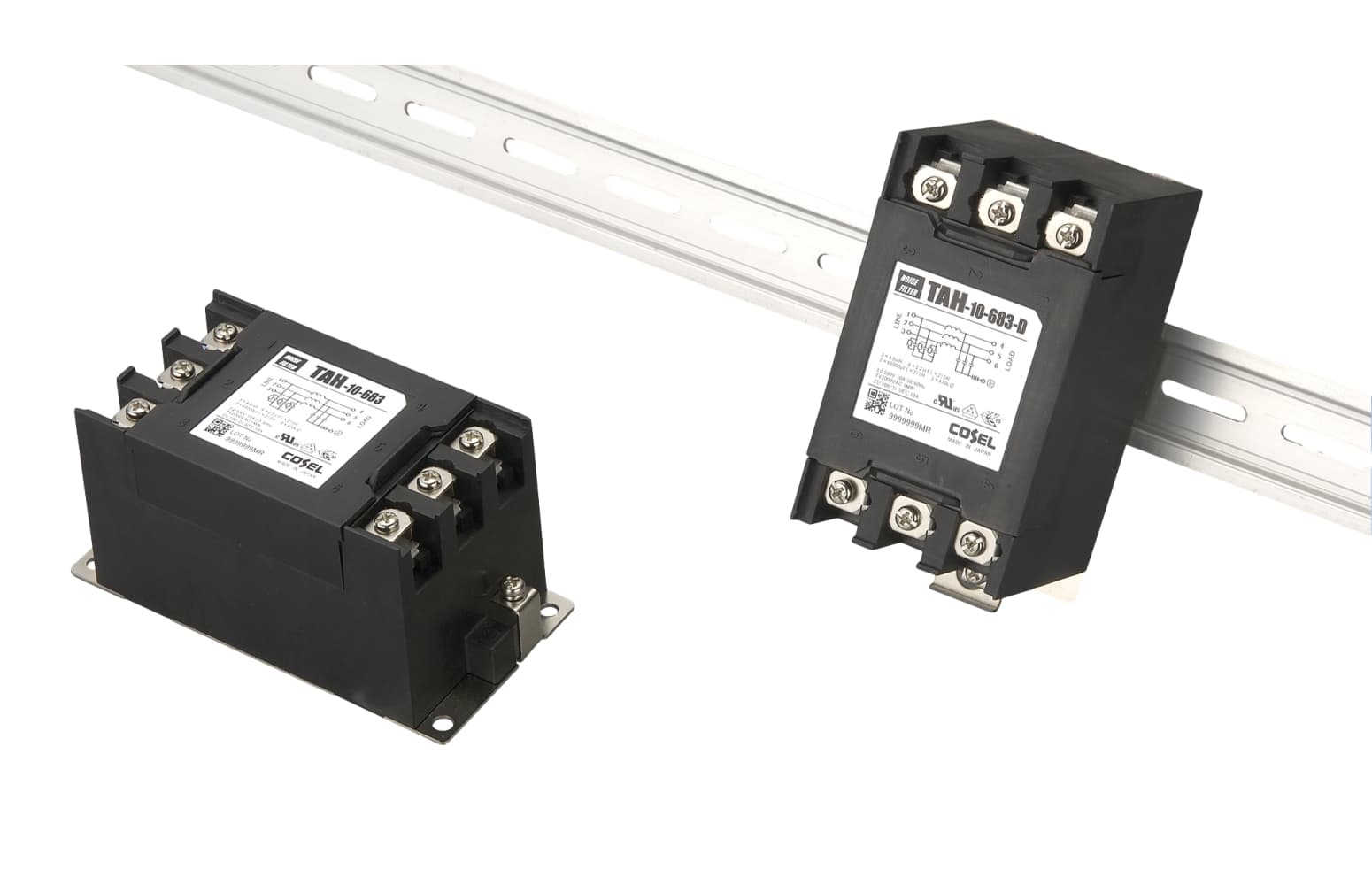

DIN rail installation type is option. - Alternative Energy, Factory Automation
Part Number Configuration
TAH(1) - 30(2) - 683(3) - □(4)
(1) Model Name(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
(4) Options
D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
