Features
- Single phase 277VAC / 300VDC 60A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter - ・Single phase 277VAC / 300VDC
This product is available 277VAC equipment in factory switchboards and building equipment
・Withstand voltage 4,000 VAC (Line to ground capacitor code -222 , -472) - Alternative Energy, Factory Automation, Railway
Part Number Configuration

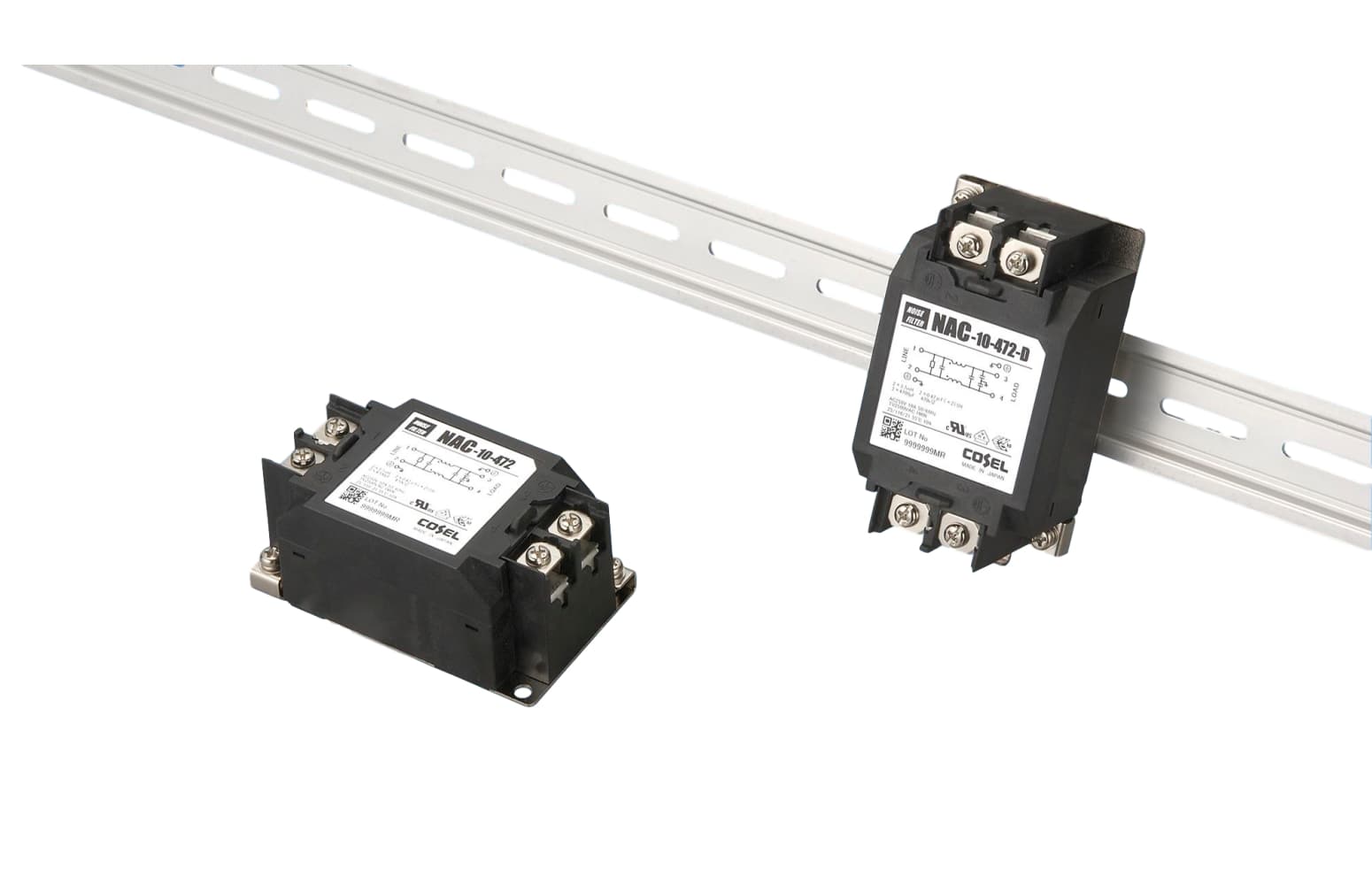

NAC(1) - 60(2) - 472(3) - □(4)
(1) Series Name(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Option
F:High input voltage (Rated voltage 500VAC/600VDC) Only 103, 223, 683 is applied.
