PRODUCTS EMI FILTERS JAC JAC-40

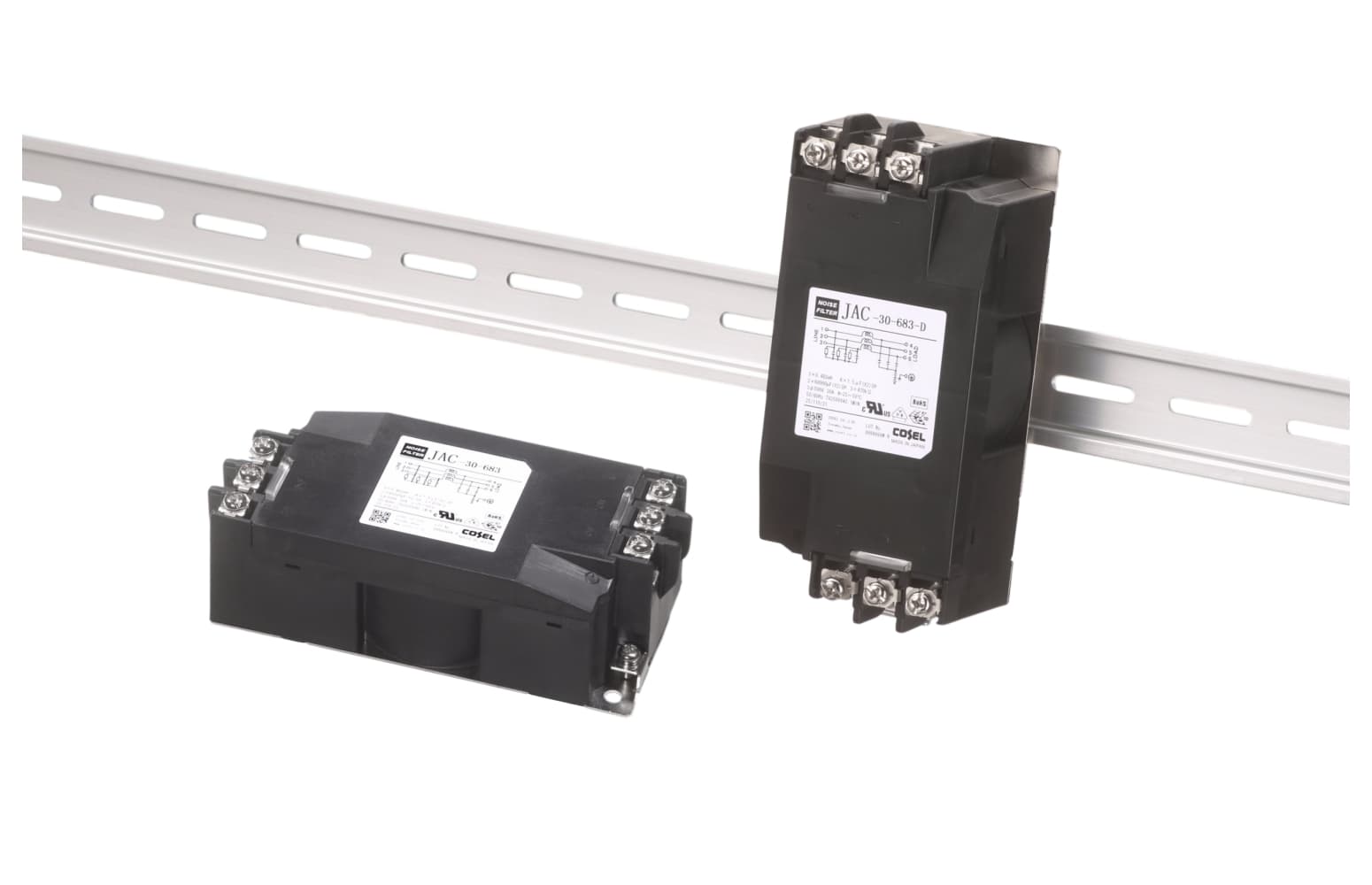

JAC Series

Features

  • Three-phase 500VAC　40A
    Compact and low profile
    High-attenuation from 150kHz to 1MHz
    1-stage filter
  • Maximum input voltage 528VAC: 10% fluctuations in voltage 480VAC
    Selectable leakage current value
  • Alternative Energy, Factory Automation

Documents

  • Datasheet
  • Instruction Manual
  • Technical Notes

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
  • 3D CAD Data (IGS)
  • Circuit diagram
  • Derating Curve

Part Number Configuration

JAC(1)  -  40(2)  -  683(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  H:Ultra high-attenuation type
    "103" , "223" , "683" is applied.
  U:lmprove differential mode attenuation (Rated voltage 250V)

⌅
