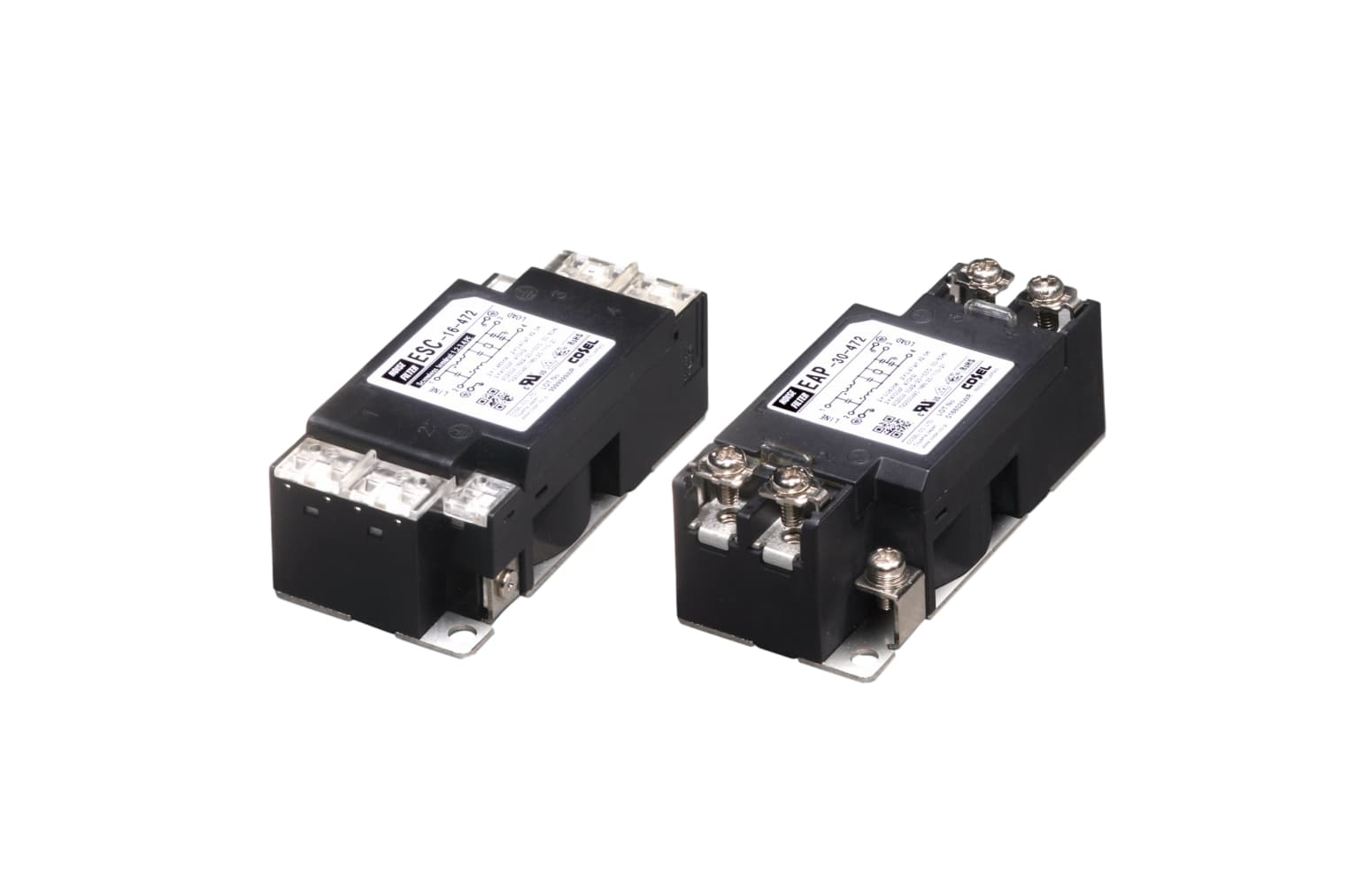

EAP Series

Features

  • Single phase 250VAC 20A
    Small size
    Outside impulse attenuation type
    1-stage filter
  • Small size
    Push down type terminal block
  • The terminal cover is retracted inside the unit.
    DIN rail installation type is option.
  • Alternative Energy, Factory Automation, Railway

Documents

  • Datasheet
  • Instruction Manual
  • Technical Notes

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
  • 3D CAD Data (IGS)
  • Circuit diagram
  • Derating Curve

Part Number Configuration

EAP(1)  -  20(2)  -  472(3)  -  □(4)

(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
    different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

⌅
