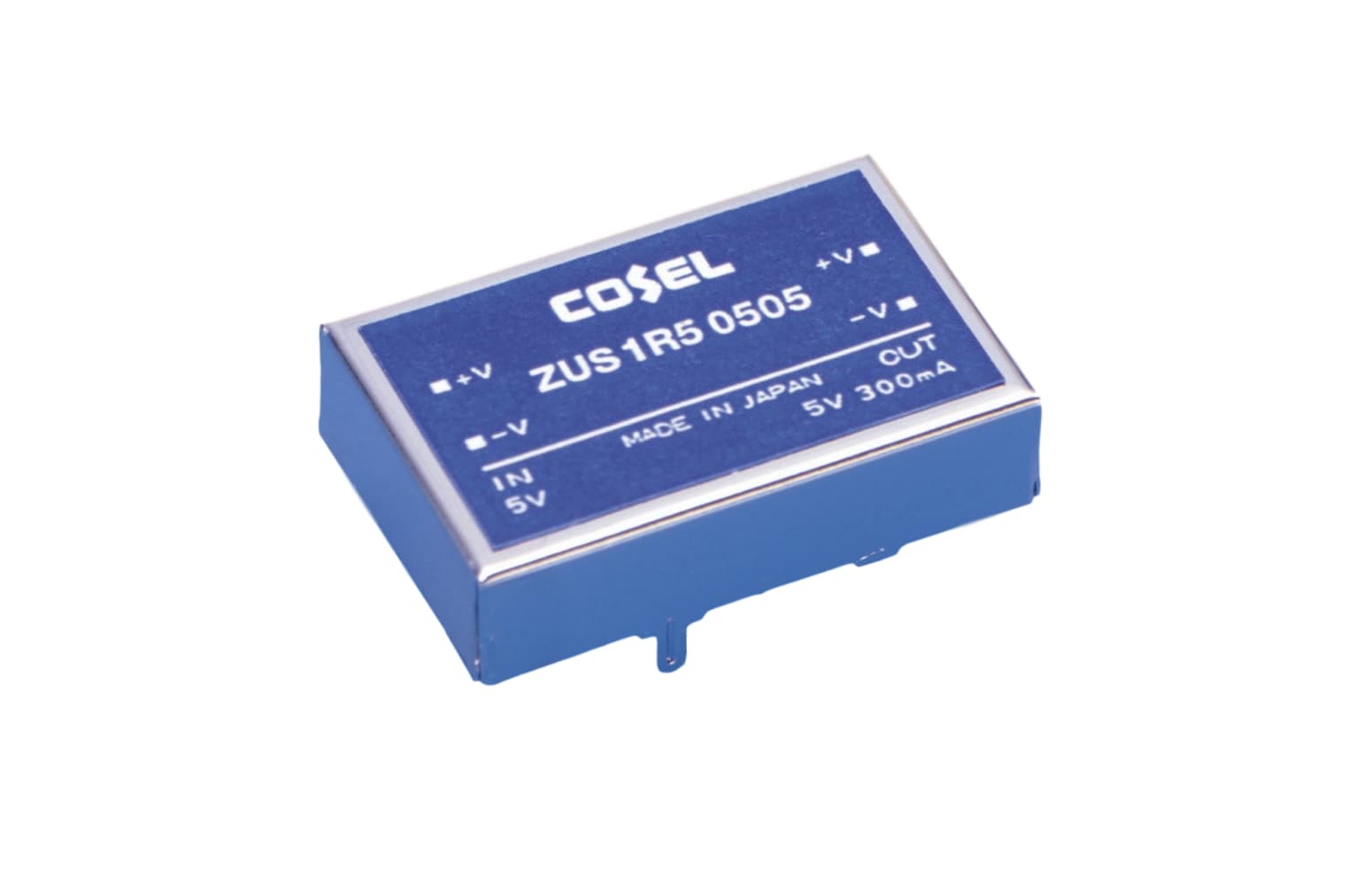

ZUS1R5

ZUS1R5

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGS series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

ZU(1)  S(2)  1R5(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
string(267) "
ZU(1)  S(2)  1R5(3)  12(4)  05(5)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  S(2)  1R5(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZUS1R50505 ZUS1R50512 ZUS1R50515 ZUS1R51205 ZUS1R51212 ZUS1R51215 ZUS1R52405 ZUS1R52412 ZUS1R52415 ZUS1R54805 ZUS1R54812 ZUS1R54815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A 5V 0.30A 12V 0.13A 15V 0.10A
Output Power 1.50W 1.56W 1.50W 1.56W 1.50W 1.56W 1.50W 1.56W 1.50W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 27.5x7x18mm 27.5x7x18mm 27.5x7x18mm 27.5x7x18mm
Safety Agency Approvals UL60950-1, IEC60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUS1R50505 ZUS1R50512 ZUS1R50515 ZUS1R51205 ZUS1R51212 ZUS1R51215 ZUS1R52405 ZUS1R52412 ZUS1R52415 ZUS1R54805 ZUS1R54812 ZUS1R54815
Performance Data
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data


⌅
