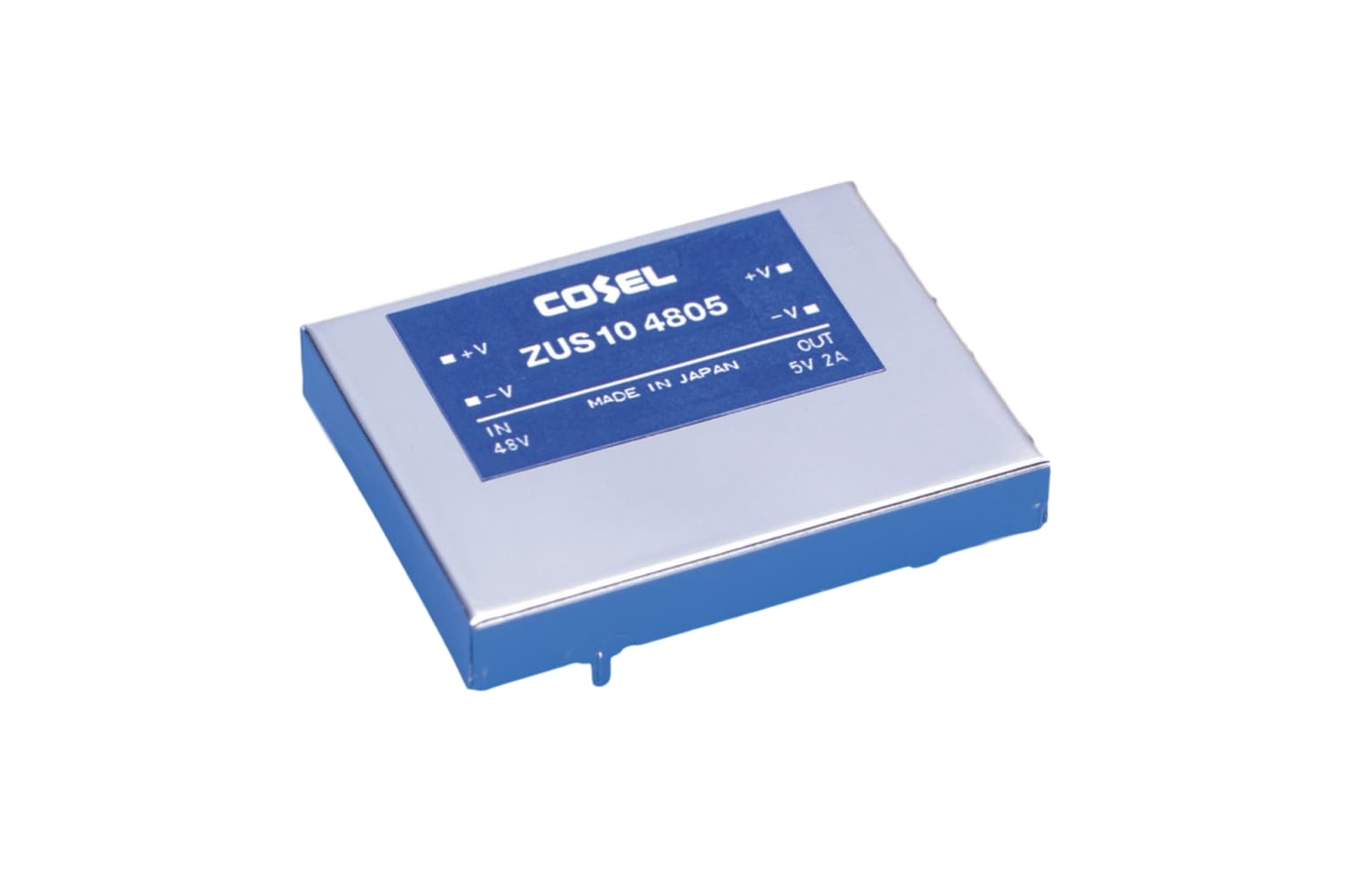

ZUS10

ZUS10

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGS series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

ZU(1)  S(2)  10(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
string(266) "
ZU(1)  S(2)  10(3)  12(4)  05(5)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  S(2)  10(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZUS10053R3 ZUS100505 ZUS100512 ZUS100515 ZUS101205 ZUS101212 ZUS101215 ZUS102405 ZUS102412 ZUS102415 ZUS10483R3 ZUS104805 ZUS104812 ZUS104815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V DC36 - 72V
Output Voltage / Current 3.3V 1.6A 5V 1.6A 12V 0.7A 15V 0.6A 5V 2.0A 12V 0.9A 15V 0.7A 5V 2.0A 12V 0.9A 15V 0.7A 3.3V 2.0A 5V 2.0A 12V 0.9A 15V 0.7A
Output Power 5.28W 8.0W 8.4W 9.0W 10.0W 10.8W 10.5W 10.0W 10.8W 10.5W 6.6W 10.0W 10.8W 10.5W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection Convection
Dimensions (W x H x D) 45x7x35mm 45x7x35mm 45x7x35mm 45x7x35mm 45x7x35mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUS10053R3 ZUS100505 ZUS100512 ZUS100515 ZUS101205 ZUS101212 ZUS101215 ZUS102405 ZUS102412 ZUS102415 ZUS10483R3 ZUS104805 ZUS104812 ZUS104815
Performance Data On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request
