PRODUCTS DC-DC SUTW SERIES SUTW6
Enquire

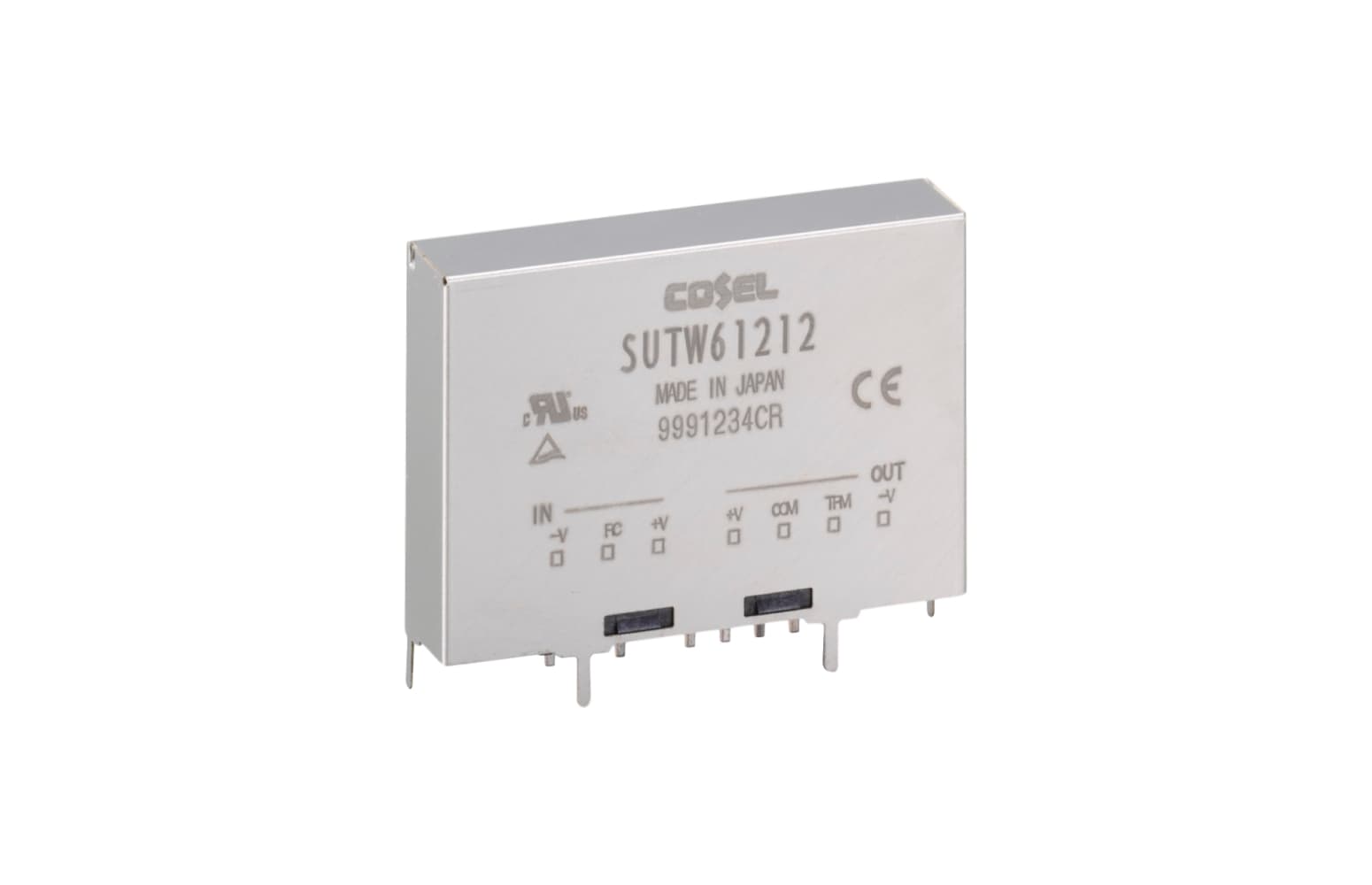

SUTW6

SUTW6

NRND

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(400) "
SUT(1)  W(2)  6(3)  12(4)  12(5)  -  □(6)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SUT(1)  W(2)  6(3)  12(4)  12(5)  -  □(6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification SUTW60512 SUTW60515 SUTW61212 SUTW61215 SUTW62412 SUTW62415 SUTW64812 SUTW64815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 76V
Output Voltage / Current ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A
Output Power 6W 6W 6W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 37.6x26.4x9.15mm 37.6x26.4x9.15mm 37.6x26.4x9.15mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
Technical Data SUTW60512 SUTW60515 SUTW61212 SUTW61215 SUTW62412 SUTW62415 SUTW64812 SUTW64815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
