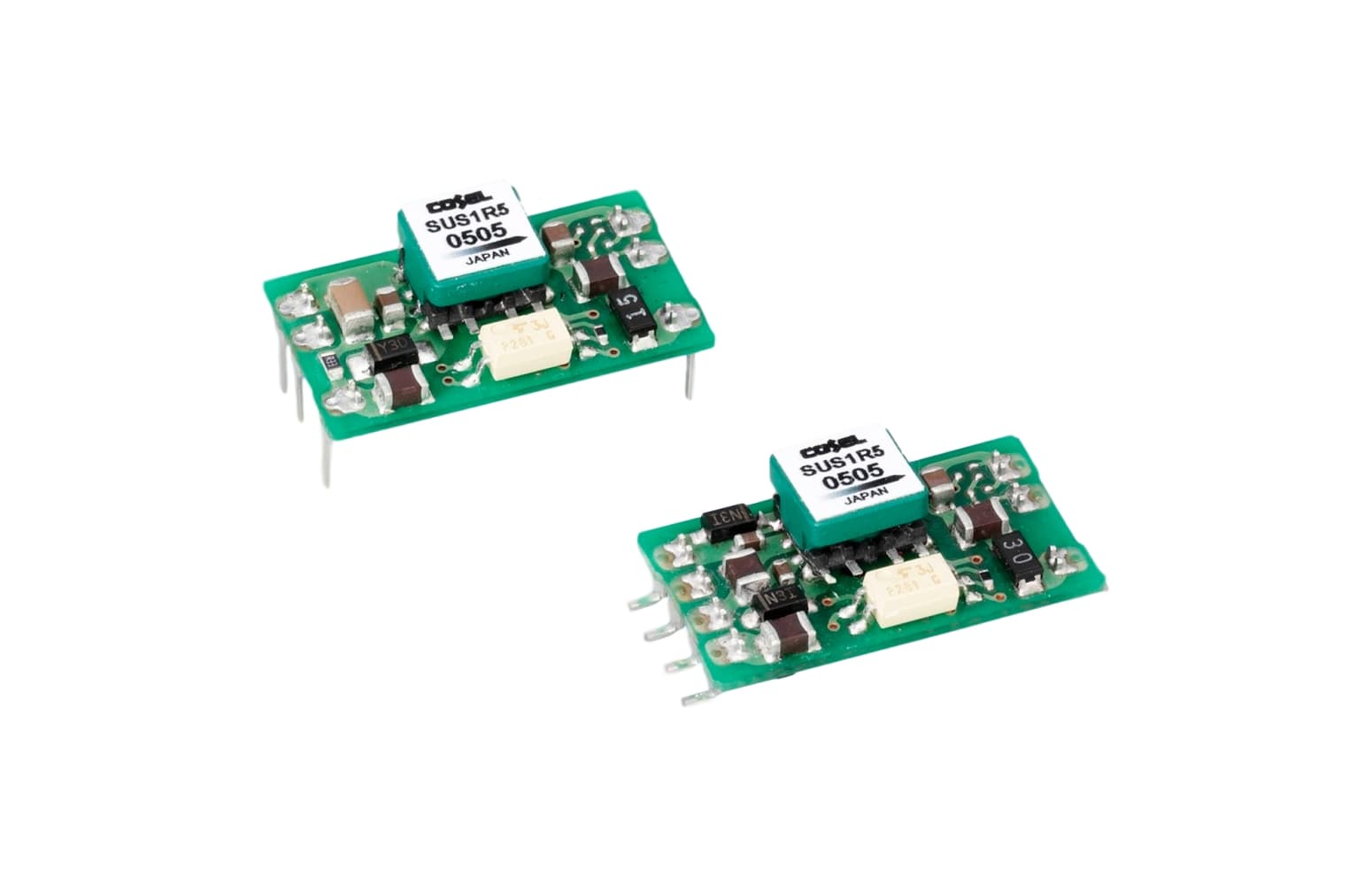

SUS1R5

Key Product Features

  • Low Power DC-DC Converter
  • Operating Temperature (-40 to +85 °C)
  • Various Input/Output Combinations
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High

Options

(For detailed information, please refer to the instruction manual)

SU(1)  S(2)  1R5(3)  12(4)  05(5)  B(6)  P(7)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
string(488) "

SU(1)  S(2)  1R5(3)  12(4)  05(5)  B(6)  P(7)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SU(1)  S(2)  1R5(3)  12(4)  05(5)  B(6)  P(7)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
Basic Specification SUS1R5053R3 SUS1R50505 SUS1R50512 SUS1R50515 SUS1R5123R3 SUS1R51205 SUS1R51212 SUS1R51215 SUS1R5243R3 SUS1R52405 SUS1R52412 SUS1R52415 SUS1R5483R3 SUS1R54805 SUS1R54812 SUS1R54815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Voltage / Current 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A
Output Power 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 21.4x6.5x12.2mm 21.4x6.5x12.2mm 21.4x6.5x12.2mm 21.4x6.5x12.2mm 21.4x6.5x12.2mm 21.4x6.5x12.2mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
Technical Data SUS1R5053R3 SUS1R50505 SUS1R50512 SUS1R50515 SUS1R5123R3 SUS1R51205 SUS1R51212 SUS1R51215 SUS1R5243R3 SUS1R52405 SUS1R52412 SUS1R52415 SUS1R5483R3 SUS1R54805 SUS1R54812 SUS1R54815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
