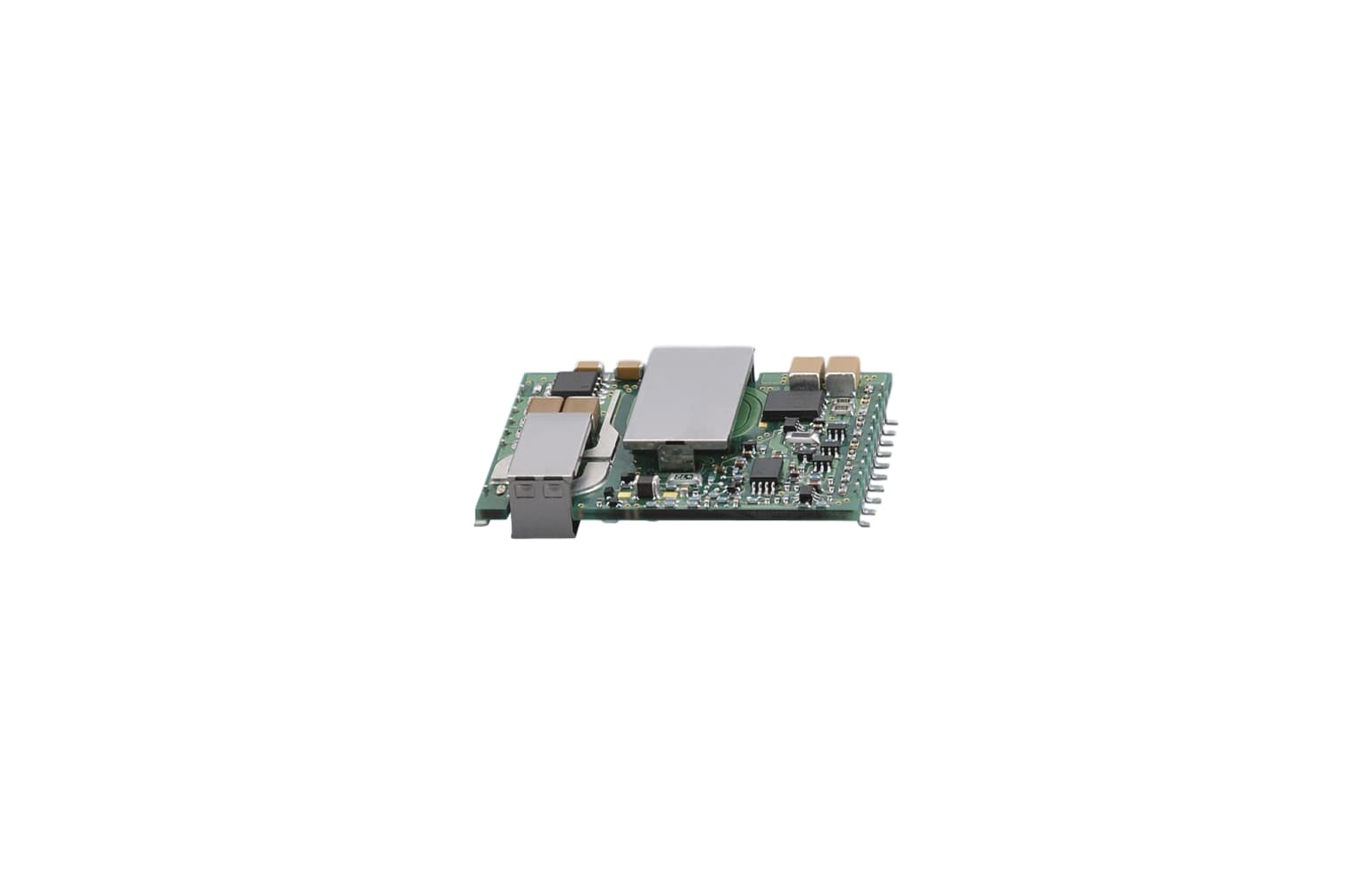

SFS30

SFS30

Discontinued

Options

(For detailed information, please refer to the instruction manual)

SF(1)  S(2)  30(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18 - 36V
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
string(525) "
SF(1)  S(2)  30(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18 - 36V
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SF(1)  S(2)  30(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18 - 36V
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
Basic Specification SFS30242R5 SFS30243R3 SFS302405 SFS302412 SFS302415 SFS30481R2 SFS30481R5 SFS30481R8 SFS30482R5 SFS30483R3 SFS304805 SFS304810 SFS304812 SFS304815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V
Output Voltage / Current 2.5V 9.0A 3.3V 9.0A 5.0V 6.0A 12V 2.5A 15V 2.0A 1.2V 10.4A 1.5V 10.4A 1.8V 9.0A 2.5V 9.0A 3.3V 9.0A 5.0V 6.0A 10V 3.0A 12V 2.5A 15V 2.0A
Output Power 22.5W 29.7W 30.0W 12.48W 15.6W 16.2W 22.5W 29.7W 30.0W 30.0W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 38.7x8.0x31.2mm 38.7x8.0x31.2mm 38.7x8.0x31.2mm 38.7x8.0x31.2mm 38.7x8.0x31.2mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data SFS30242R5 SFS30243R3 SFS302405 SFS302412 SFS302415 SFS30481R2 SFS30481R5 SFS30481R8 SFS30482R5 SFS30483R3 SFS304805 SFS304810 SFS304812 SFS304815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
