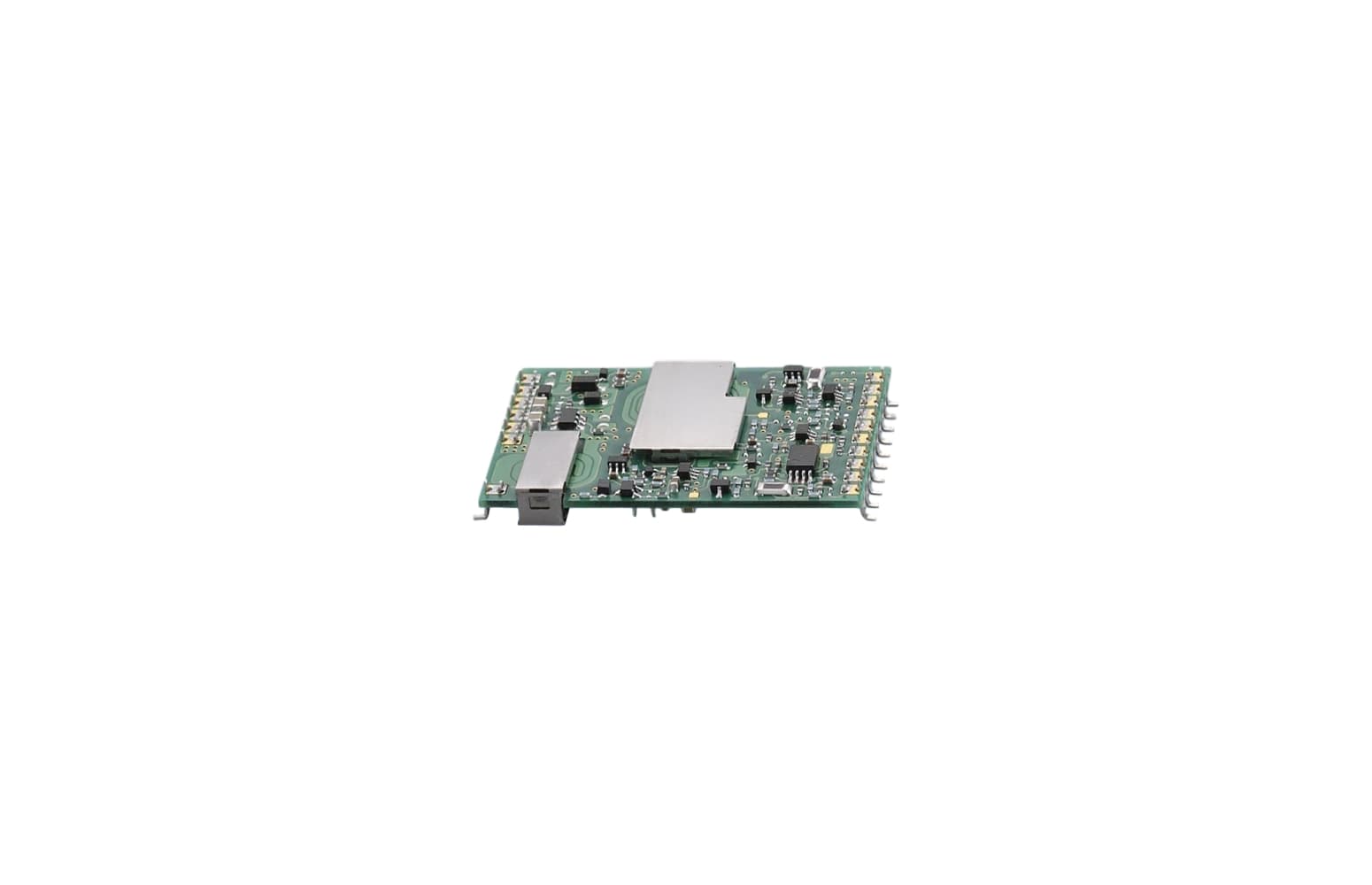

SFS15

SFS15

Discontinued

Options

(For detailed information, please refer to the instruction manual)

SF(1)  S(2)  15(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18+AD17: AD26 48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
string(507) "
SF(1)  S(2)  15(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18+AD17: AD26 48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SF(1)  S(2)  15(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   24: DC18+AD17: AD26 48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
Basic Specification SFS15242R5 SFS15243R3 SFS152405 SFS152412 SFS152415 SFS15481R2 SFS15481R5 SFS15481R8 SFS15482R5 SFS15483R3 SFS154805 SFS154812 SFS154815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V
Output Voltage / Current 2.5V 4.5A 3.3V 4.5A 5.0V 3.0A 12V 1.25A 15V 1.0A 1.2V 5.2A 1.5V 5.2A 1.8V 4.5A 2.5V 4.5A 3.3V 4.5A 5.0V 3.0A 12V 1.25A 15V 1.0A
Output Power 11.25W 14.85W 15.0W 6.24W 7.8W 8.1W 11.25W 14.85W 15.0W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing)
Cooling Method Convection Convection Convection Convection Convection
Dimensions (W x H x D) 38.7x5.0x27.2mm 38.7x5.0x27.2mm 38.7x5.0x27.2mm 38.7x5.0x27.2mm 38.7x5.0x27.2mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data SFS15242R5 SFS15243R3 SFS152405 SFS152412 SFS152415 SFS15481R2 SFS15481R5 SFS15481R8 SFS15482R5 SFS15483R3 SFS154805 SFS154812 SFS154815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
