PRODUCTS DC-DC SFS SERIES SFS10
Enquire

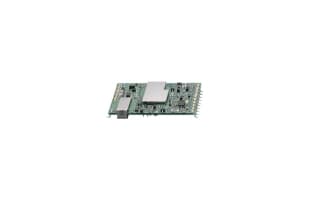

SFS10

SFS10

Discontinued

Options

(For detailed information, please refer to the instruction manual)

SF(1)  S(2)  10(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
string(487) "
SF(1)  S(2)  10(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SF(1)  S(2)  10(3)  48(4)  3R3(5)  B(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
   48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  (Soldering process)
   B: SMD (Pb-free solder)
   C: DIP (Pb-free solder)
Basic Specification SFS10481R2 SFS10481R5 SFS10481R8 SFS10482R5 SFS10483R3 SFS104805 SFS104812 SFS104815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC36 - 76V DC36 - 76V DC36 - 76V
Output Voltage / Current 1.2V 3.5A 1.5V 3.5A 1.8V 3.0A 2.5V 3.0A 3.3V 3.0A 5.0V 2.0A 12V 0.9A 15V 0.7A
Output Power 4.2W 5.25W 5.4W 7.5W 9.9W 10.0W 10.8W 10.5W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing)
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 38.7x5.0x27.2mm 38.7x5.0x27.2mm 38.7x5.0x27.2mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data SFS10481R2 SFS10481R5 SFS10481R8 SFS10482R5 SFS10483R3 SFS104805 SFS104812 SFS104815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
