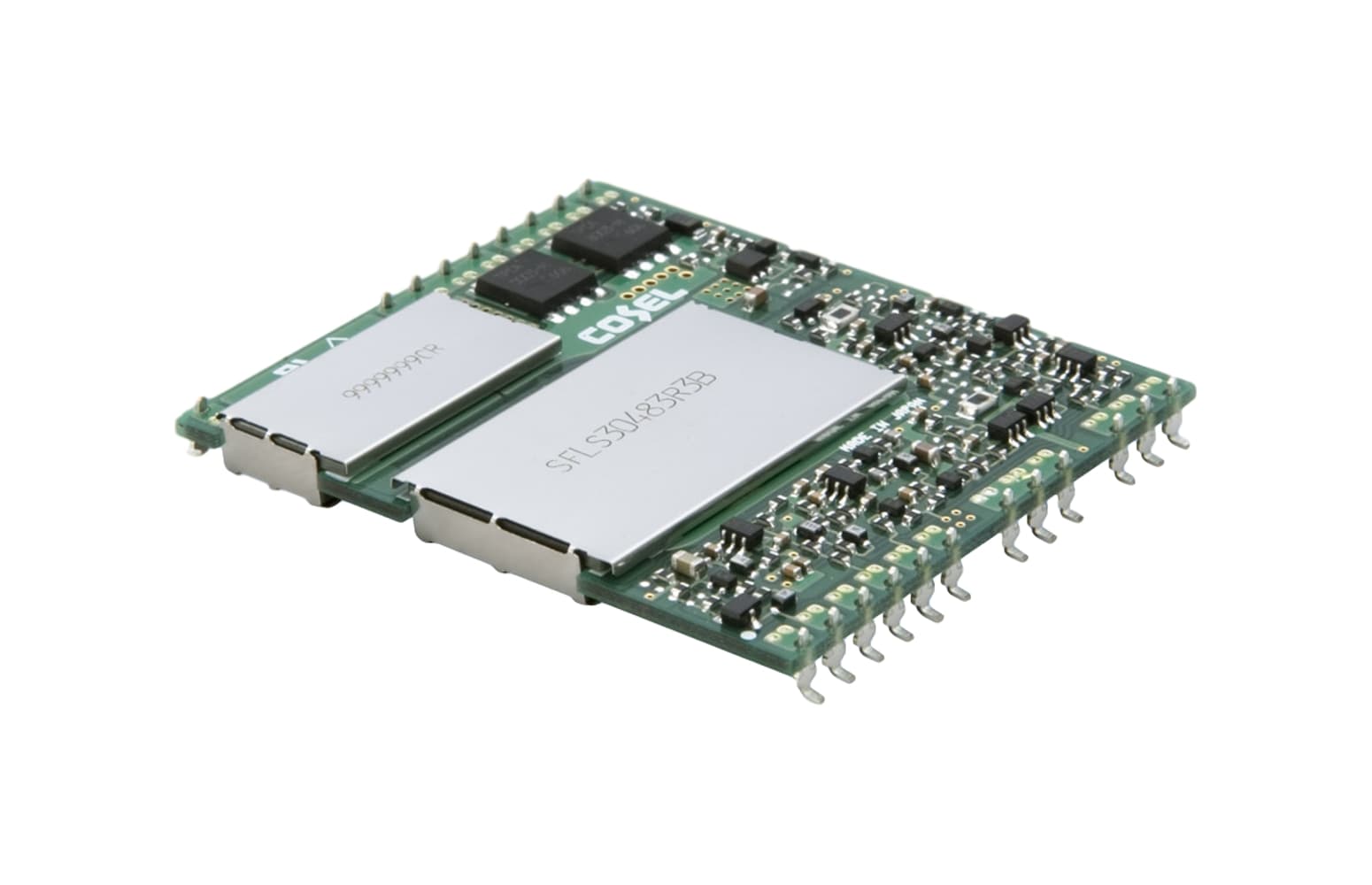

SFLS30
Discontinued
SFLS series will be discontinued May 2024.
Options
SFL(1) S(2) 30(3) 48(4) 3R3(5) B(6)
(1) Series name(2) Single output
(3) Output wattage
(4) Input voltage
48: DC36 - 76V
(5) Output voltage
(6) Mounting type
B: SMD
| Basic Specification | SFLS30481R2 | SFLS30481R5 | SFLS30481R8 | SFLS30482R5 | SFLS30483R3 | SFLS304805 |
|---|---|---|---|---|---|---|
| Check Stock | Check Stock | Check Stock | Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | DC36 - 76V | DC36 - 76V | ||||
| Output Voltage / Current | 1.2V 12A | 1.5V 11A | 1.8V 11A | 2.5V 10A | 3.3V 9A | 5V 6A |
| Output Power | 14.4W | 16.5W | 19.8W | 25.0W | 29.7W | 30.0W |
| Output Voltage Adj Range | ||||||
| Operating Temp (°C) | -40 to +85℃, 20 - 95%RH (Non condensing) | -40 to +85℃, 20 - 95%RH (Non condensing) | ||||
| Cooling Method | Convection | Convection | ||||
| Dimensions (W x H x D) | 41.2x4.4x36.2mm | 41.2x4.4x36.2mm | ||||
| Safety Agency Approvals | UL60950-1, C-UL (CSA60950-1) , EN62368-1 | UL60950-1, C-UL (CSA60950-1) , EN62368-1 | ||||
| Technical Data | SFLS30481R2 | SFLS30481R5 | SFLS30481R8 | SFLS30482R5 | SFLS30483R3 | SFLS304805 |
| Performance Data | ||||||
| EMC Data | ||||||
| Expected Life | N/A | N/A | N/A | N/A | N/A | N/A |
| MTBF | ||||||
| Reliability Data | ||||||
