PRODUCTS DC-DC SFCS SERIES SFCS30
Enquire

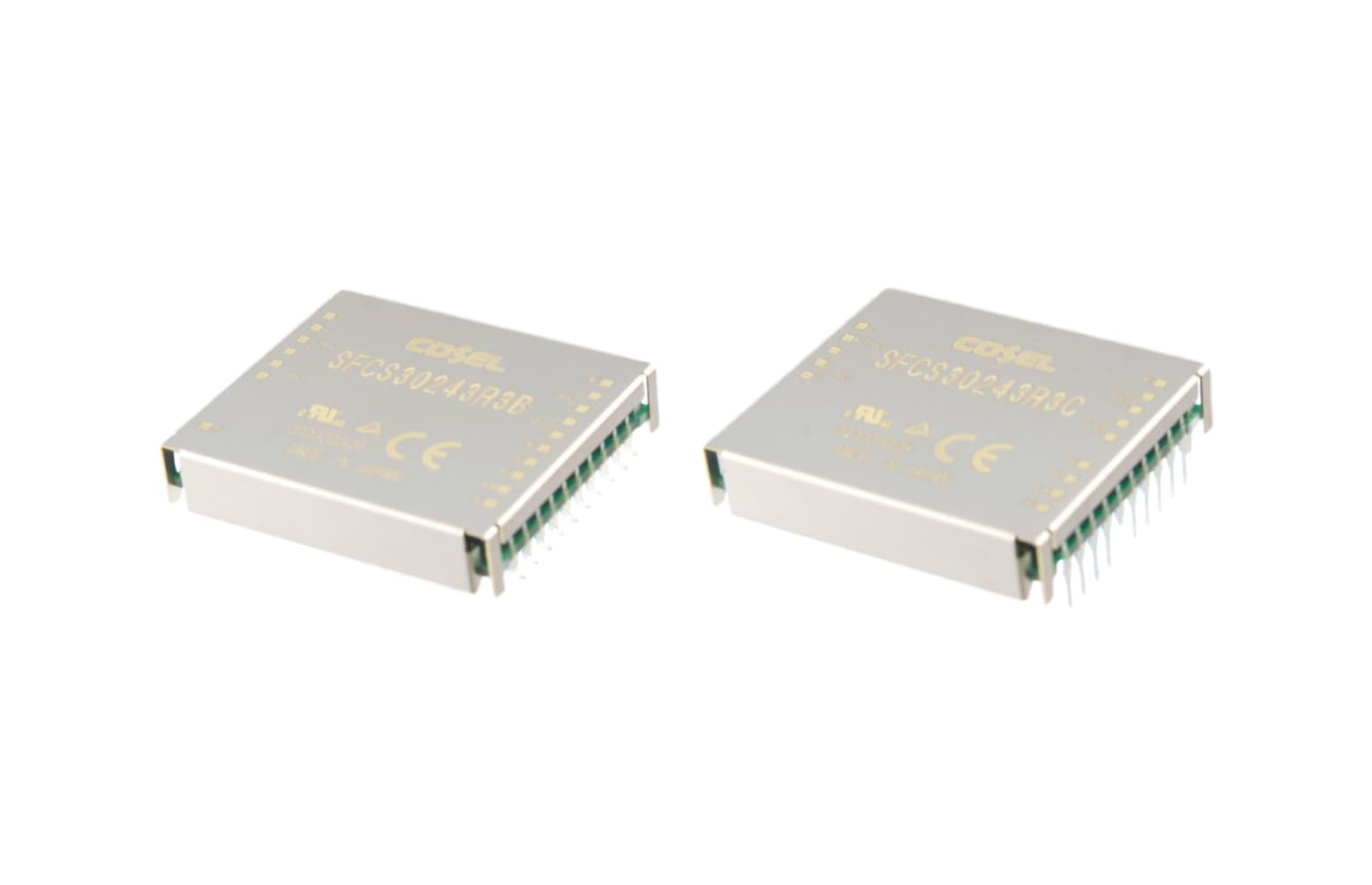

SFCS30

SFCS30

NRND

Options

(For detailed information, please refer to the instruction manual)

SFC(1)  S(2)  30(3)  24(4)  3R3(5)  C(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
string(430) "
SFC(1)  S(2)  30(3)  24(4)  3R3(5)  C(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SFC(1)  S(2)  30(3)  24(4)  3R3(5)  C(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
Basic Specification SFCS30243R3 SFCS302405 SFCS302412 SFCS302415 SFCS30483R3 SFCS304805 SFCS304812 SFCS304815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Voltage / Current 3.3V 9A 5V 6A 12V 2.5A 15V 2A 3.3V 9A 5V 6A 12V 2.5A 15V 2A
Output Power 29.7W 30.0W 29.7W 30.0W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 39.3x8.8x33.5mm 39.3x8.8x33.5mm 39.3x8.8x33.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data SFCS30243R3 SFCS302405 SFCS302412 SFCS302415 SFCS30483R3 SFCS304805 SFCS304812 SFCS304815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
