PRODUCTS DC-DC SFCS SERIES SFCS15
Enquire

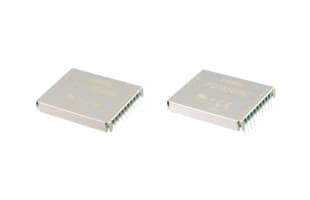

SFCS15

SFCS15

NRND

Options

(For detailed information, please refer to the instruction manual)

SFC(1)  S(2)  15(3)  24(4)  3R3(5)  C(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
string(430) "
SFC(1)  S(2)  15(3)  24(4)  3R3(5)  C(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SFC(1)  S(2)  15(3)  24(4)  3R3(5)  C(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
Basic Specification SFCS15243R3 SFCS152405 SFCS152412 SFCS152415 SFCS15483R3 SFCS154805 SFCS154812 SFCS154815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Voltage / Current 3.3V 4.5A 5V 3A 12V 1.25A 15V 1A 3.3V 4.5A 5V 3A 12V 1.25A 15V 1A
Output Power 14.85W 15.0W 14.85W 15.0W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing) -40 to +85℃, 20 - 95%RH (Non condensing)
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 39.1x6.8x29.5mm 39.1x6.8x29.5mm 39.1x6.8x29.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data SFCS15243R3 SFCS152405 SFCS152412 SFCS152415 SFCS15483R3 SFCS154805 SFCS154812 SFCS154815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
