PRODUCTS DC-DC PMP SERIES PMP10-5S
Enquire

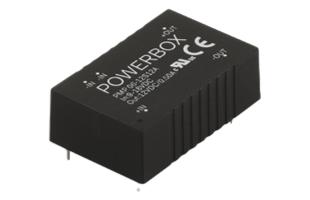

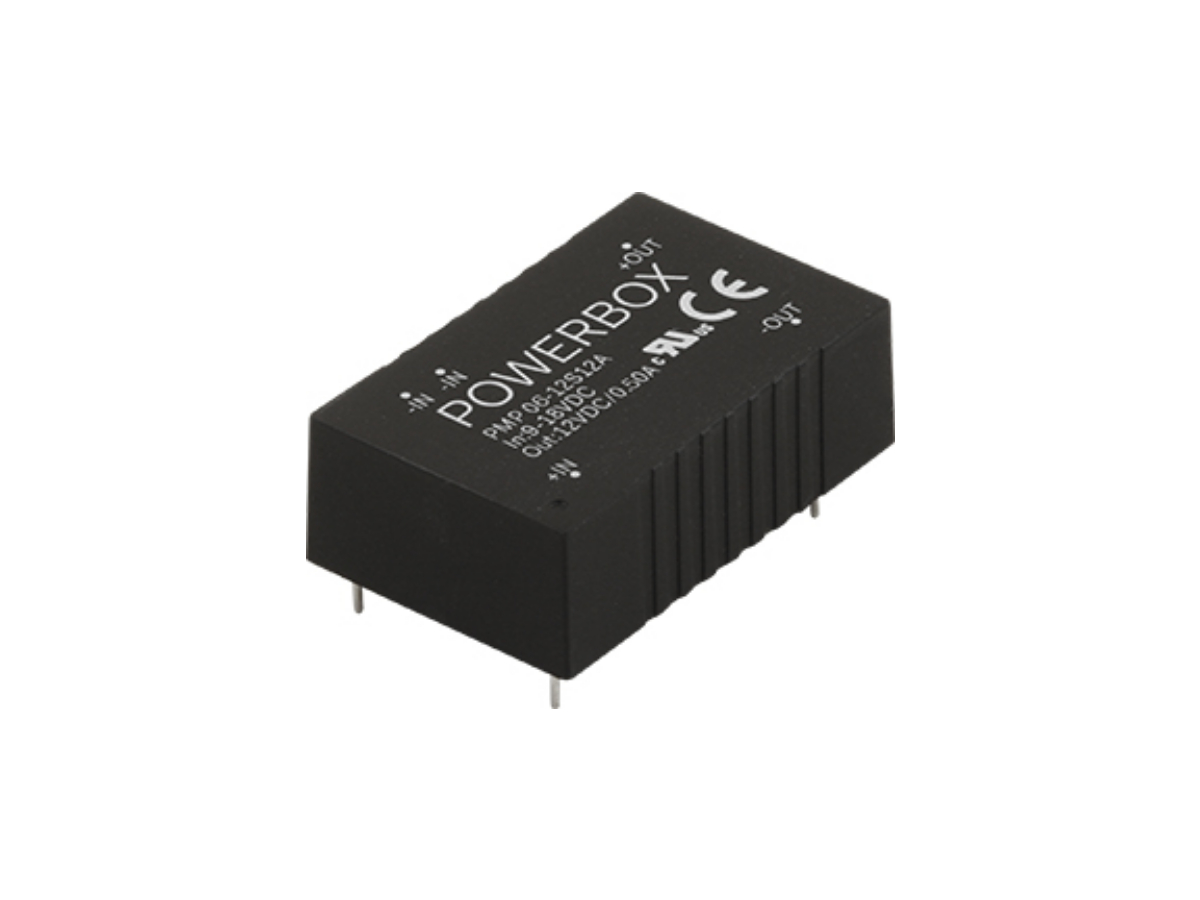

PMP10-5S

PMP10-5S

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOOP & 3kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 10W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMP10-05S3P3A PMP10-05S05A PMP10-05S12A PMP10-05S15A PMP10-05S24A PMP10-05S3P3B PMP10-05S05B PMP10-05S12B PMP10-05S15B PMP10-05S24B
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V
Output Voltage / Current 3.3V 2.5A 5V 2A 12V 0.83A 15V 0.67A 24V 0.416A 3.3V 2.5A 5V 2A 12V 0.83A 15V 0.67A 24V 0.416A
Output Power 10W 10W 10W 10W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 76℃ -40 to 76℃ -40 to 76℃ -40 to 76℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMP10-05S3P3A PMP10-05S05A PMP10-05S12A PMP10-05S15A PMP10-05S24A PMP10-05S3P3B PMP10-05S05B PMP10-05S12B PMP10-05S15B PMP10-05S24B
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
