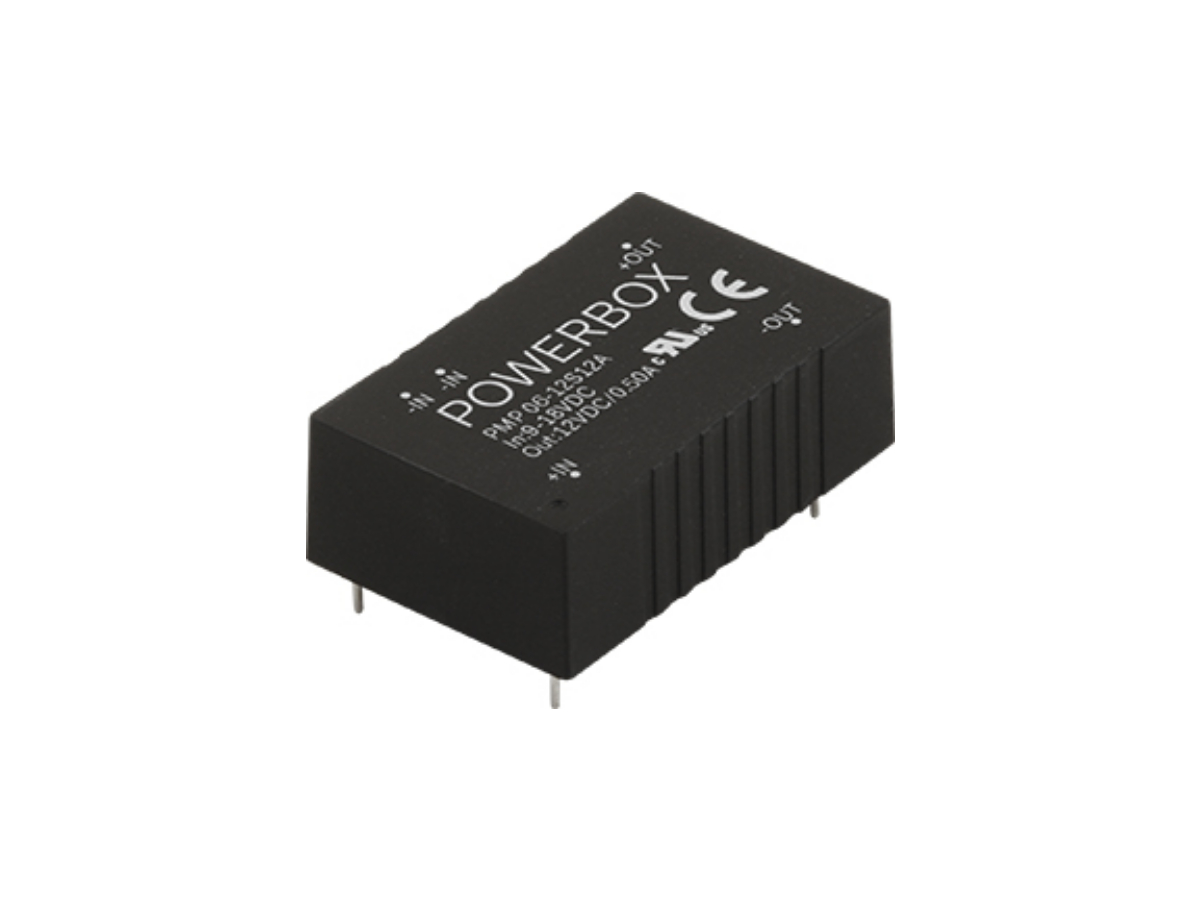

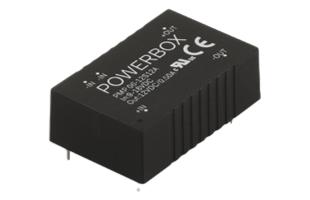

PMP03-24S

PMP03-24S

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOOP & 3kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 10W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMP03-24S3P3A PMP03-24S05A PMP03-24S12A PMP03-24S15A PMP03-24S24A PMP03-24S3P3WA PMP03-24S05WA PMP03-24S12WA PMP03-24S15WA PMP03-24S24WA PMP03-24S3P3B PMP03-24S05B PMP03-24S12B PMP03-24S15B PMP03-24S24B PMP03-24S3P3WB PMP03-24S05WB PMP03-24S12WB PMP03-24S15WB PMP03-24S24WB
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V
Output Voltage / Current 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A
Output Power 3W 3W 3W 3W 3W 3W 3W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃
Cooling Method Convection Convection Convection Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMP03-24S3P3A PMP03-24S05A PMP03-24S12A PMP03-24S15A PMP03-24S24A PMP03-24S3P3WA PMP03-24S05WA PMP03-24S12WA PMP03-24S15WA PMP03-24S24WA PMP03-24S3P3B PMP03-24S05B PMP03-24S12B PMP03-24S15B PMP03-24S24B PMP03-24S3P3WB PMP03-24S05WB PMP03-24S12WB PMP03-24S15WB PMP03-24S24WB
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
