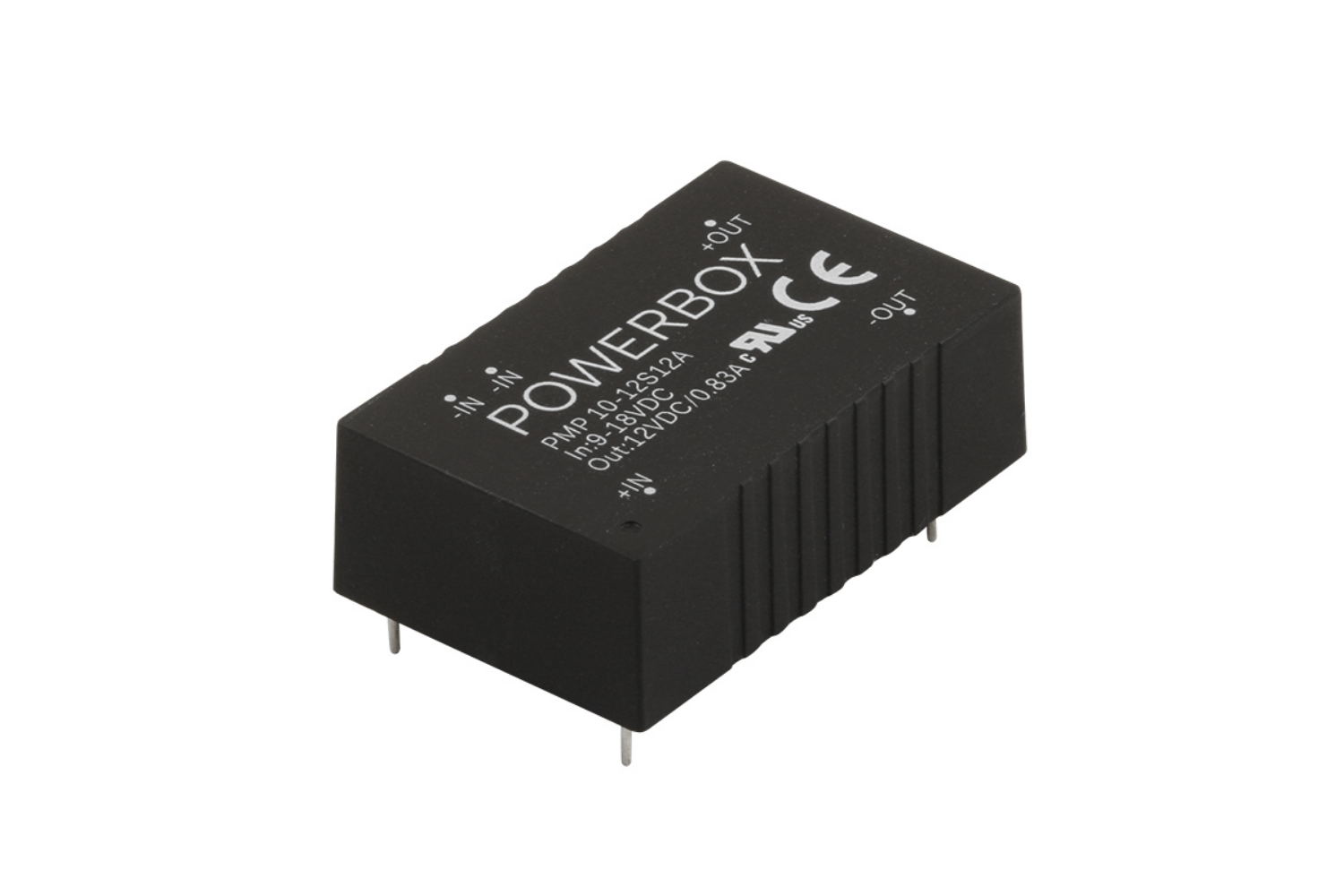

PMP Series
NEW
NRND
to be discontinued
NEW MODELS
Key Product Features
- Low Power Medical Approved DC-DC Converter
- 2 x MOOP & 3kV Isolation
- Low Leakage Current of just 2µA
- Single or Dual Outputs
- 3W to 10W Output Power
- Various Protection Features
Industries
- Industrial
- Medical
| PMP Models | Datasheet | Input Voltage | Output Type | Output Voltages | Output Power | Cooling Method | ||
|---|---|---|---|---|---|---|---|---|
| Convection | Conduction | Forced Air | ||||||
| PMP03-12D | DC9 - 18V | Dual | View Outputs | 3W | ||||
| PMP03-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V, 24V | 3W | ||||
| PMP03-24D | DC18 - 36V, DC9 - 36V | Dual | View Outputs | 3W | ||||
| PMP03-24S | DC18 - 36V, DC9 - 36V | Single | 3.3V, 5V, 12V, 15V, 24V | 3W | ||||
| PMP03-48D | DC36 - 75V | Dual | View Outputs | 3W | ||||
| PMP03-48S | DC36 - 75V | Single | 3.3V, 5V, 12V, 15V, 24V | 3W | ||||
| PMP03-5D | DC4.5 - 9V | Dual | View Outputs | 3W | ||||
| PMP03-5S | DC4.5 - 9V | Single | 3.3V, 5V, 12V, 15V, 24V | 3W | ||||
| PMP06-12D | DC9 - 18V | Dual | View Outputs | 6W | ||||
| PMP06-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V, 24V | 6W | ||||
| PMP06-24D | DC18 - 36V, DC9 - 36V | Dual | View Outputs | 6W | ||||
| PMP06-24S | DC18 - 36V, DC9 - 36V | Single | 3.3V, 5V, 12V, 15V, 24V | 6W | ||||
| PMP06-48D | DC36 - 75V | Dual | View Outputs | 6W | ||||
| PMP06-48S | DC36 - 75V | Single | 3.3V, 5V, 12V, 15V, 24V | 6W | ||||
| PMP06-5D | DC4.5 - 9V | Dual | View Outputs | 6W | ||||
| PMP06-5S | DC4.5 - 9V | Single | 3.3V, 5V, 12V, 15V, 24V | 6W | ||||
| PMP10-12D | DC9 - 18V | Dual | View Outputs | 10W | ||||
| PMP10-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V, 24V | 10W | ||||
| PMP10-24D | DC18 - 36V, DC9 - 36V | Dual | View Outputs | 10W | ||||
| PMP10-24S | DC18 - 36V, DC9 - 36V | Single | 3.3V, 5V, 12V, 15V, 24V | 10W | ||||
| PMP10-48D | DC36 - 75V | Dual | View Outputs | 10W | ||||
| PMP10-48S | DC36 - 75V | Single | 3.3V, 5V, 12V, 15V, 24V | 10W | ||||
| PMP10-5D | DC4.5 - 9V | Dual | View Outputs | 10W | ||||
| PMP10-5S | DC4.5 - 9V | Single | 3.3V, 5V, 12V, 15V, 24V | 10W | ||||
