PRODUCTS DC-DC PMM SERIES PMM30-24SW
Enquire

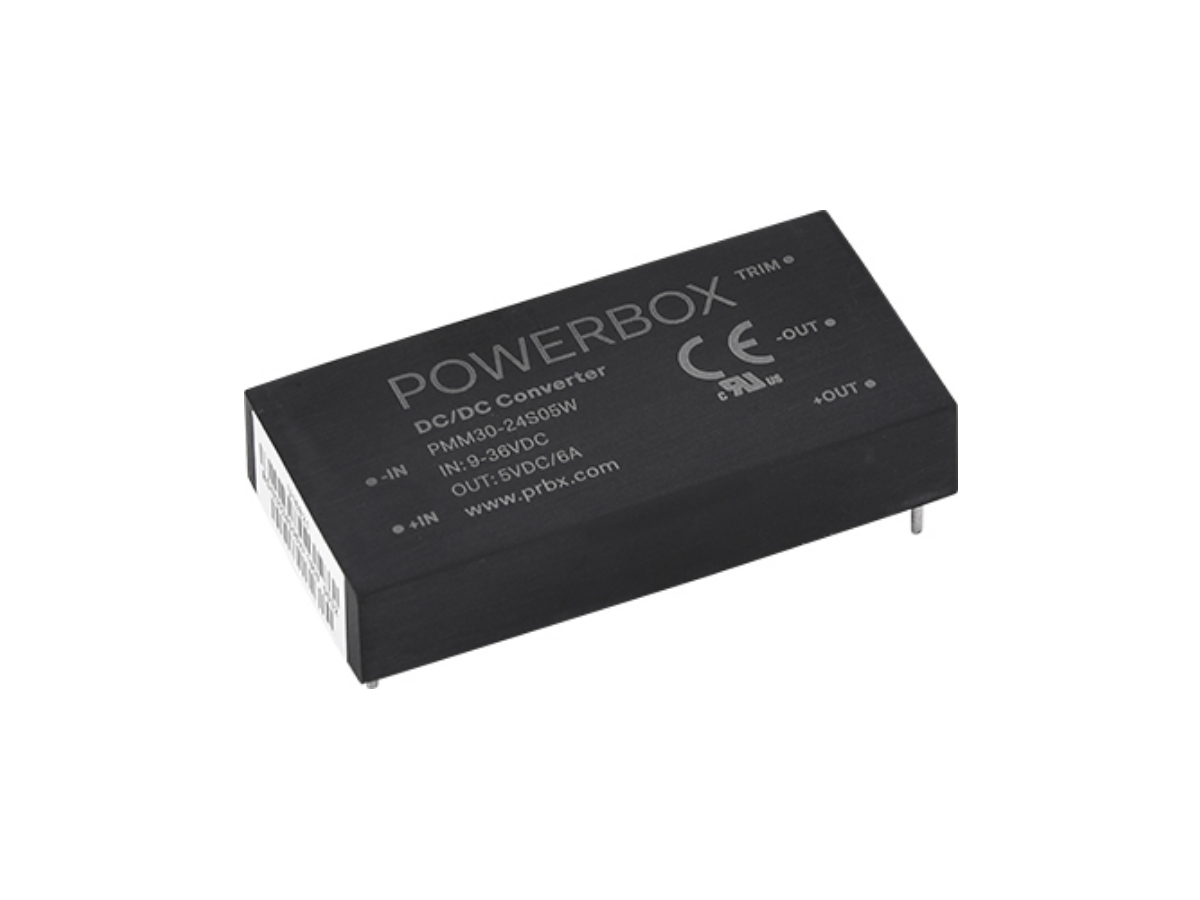

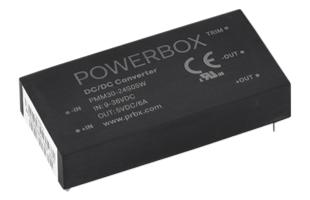

PMM30-24SW

PMM30-24SW

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM30-24S05W PMM30-24S12W PMM30-24S15W PMM30-24S24W
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 36V DC9 - 36V
Output Voltage / Current 5V 6A 12V 2.5A 15V 2A 24V 1.25A
Output Power 30W 30W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 105℃ -40 to 105℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x40.6mm 25.4x10.2x40.6mm
Safety Agency Approvals
Technical Data PMM30-24S05W PMM30-24S12W PMM30-24S15W PMM30-24S24W
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
Reliability Data
