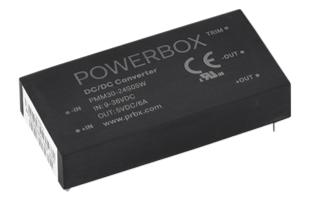

PMM30-24D

PMM30-24D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM30-24D05 PMM30-24D12 PMM30-24D15 PMM30-24D05W PMM30-24D12W PMM30-24D15W
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V, DC9 - 36V
Output Voltage / Current V1: 5V 3A
V2: -5V 3A		 V1: 12V 1.25A
V2: -12V 1.25A		 V1: 15V 1A
V2: -15V 1A		 V1: 5V 3A
V2: -5V 3A		 V1: 12V 1.25A
V2: -12V 1.25A		 V1: 15V 1A
V2: -15V 1A
Output Power 30W 30W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 105℃ -40 to 105℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x40.6mm 25.4x10.2x40.6mm
Safety Agency Approvals
Technical Data PMM30-24D05 PMM30-24D12 PMM30-24D15 PMM30-24D05W PMM30-24D12W PMM30-24D15W
Performance Data On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request
Reliability Data
