PRODUCTS DC-DC PMM SERIES PMM20-48D
Enquire

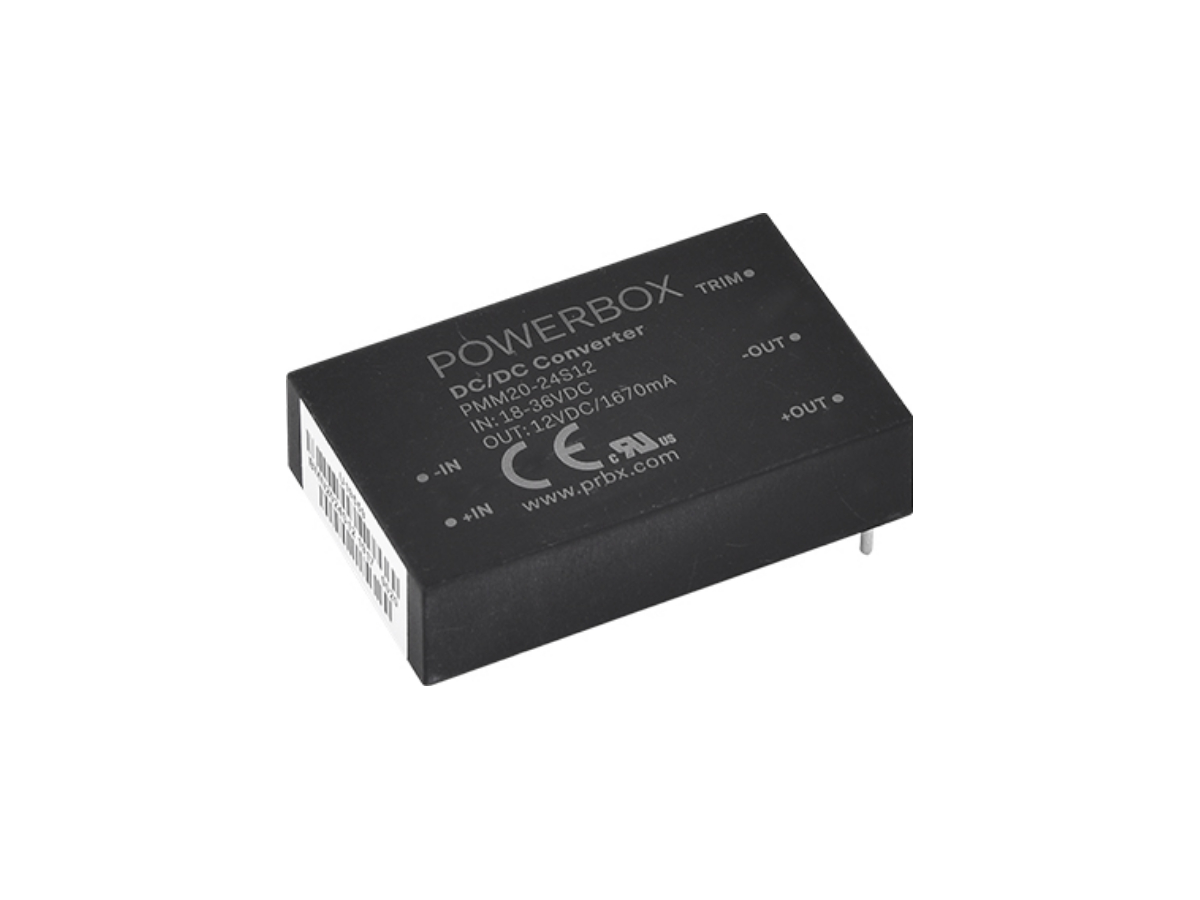

PMM20-48D

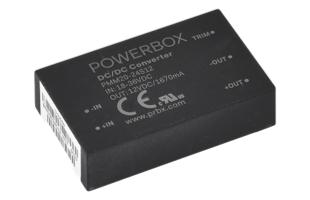

PMM20-48D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM20-48D05 PMM20-48D12 PMM20-48D15 PMM20-48D05W PMM20-48D12W PMM20-48D15W
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC36 - 75V DC36 - 75V, DC18 - 75V
Output Voltage / Current V1: 5V 2A
V2: -5V 2A		 V1: 12V 0.833A
V2: -12V 0.833A		 V1: 15V 0.667A
V2: -15V 0.667A		 V1: 5V 2A
V2: -5V 2A		 V1: 12V 0.833A
V2: -12V 0.833A		 V1: 15V 0.667A
V2: -15V 0.667A
Output Power 20W 20W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 105℃ -40 to 105℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x40.6mm 25.4x10.2x40.6mm
Safety Agency Approvals
Technical Data PMM20-48D05 PMM20-48D12 PMM20-48D15 PMM20-48D05W PMM20-48D12W PMM20-48D15W
Performance Data On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request
Reliability Data
