PRODUCTS DC-DC PMM SERIES PMM20-24DW
Enquire

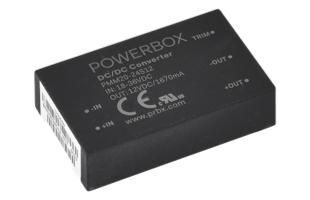

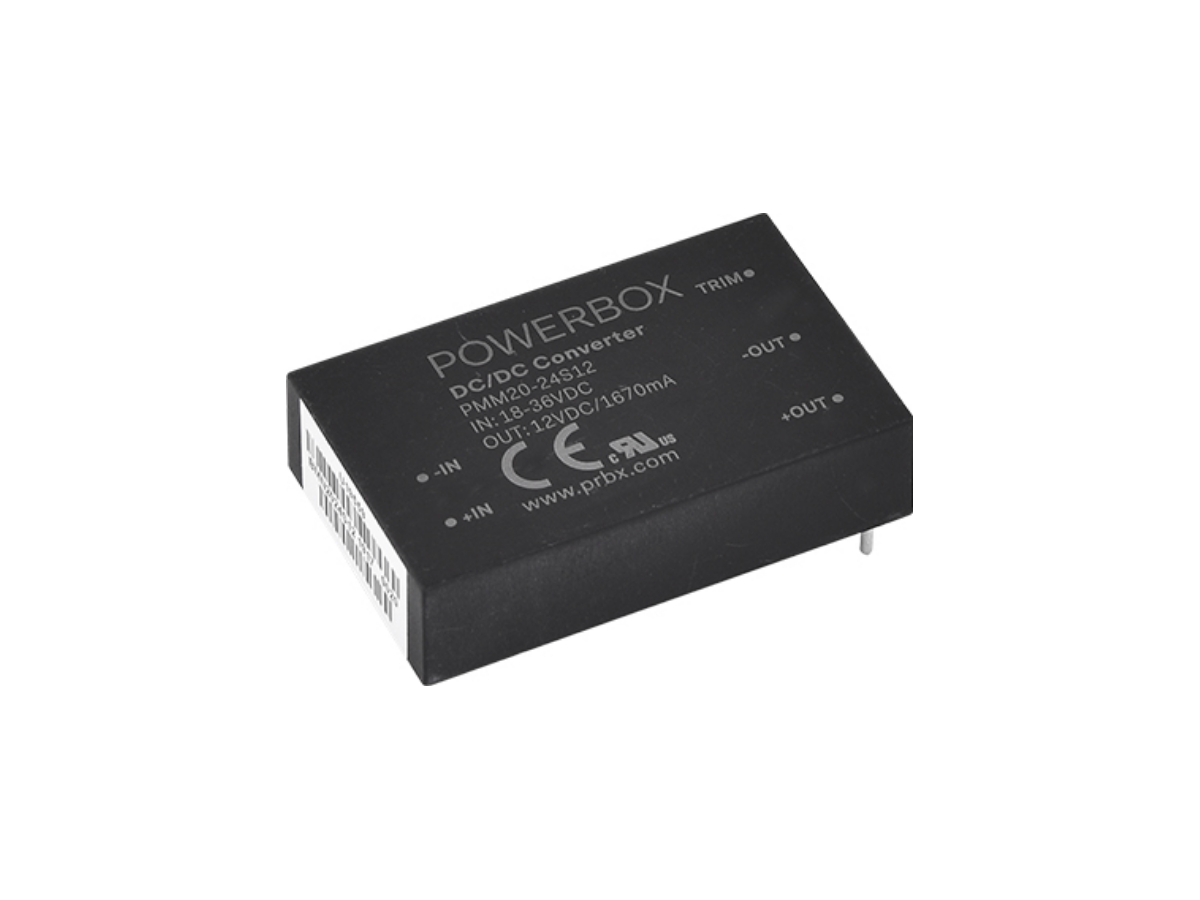

PMM20-24DW

PMM20-24DW

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM20-24D05W PMM20-24D12W PMM20-24D15W
  Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 36V
Output Voltage / Current V1: 5V 2A
V2: -5V 2A		 V1: 12V 0.833A
V2: -12V 0.833A		 V1: 15V 0.667A
V2: -15V 0.667A
Output Power 20W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to 105℃
Cooling Method Convection
Dimensions (W x H x D) 25.4x10.2x40.6mm
Safety Agency Approvals
Technical Data PMM20-24D05W PMM20-24D12W PMM20-24D15W
Performance Data On request On request On request
EMC Data On request On request On request
Expected Life N/A N/A N/A
MTBF On request On request On request
Reliability Data
