PRODUCTS DC-DC PMM SERIES PMM10-24SW
Enquire

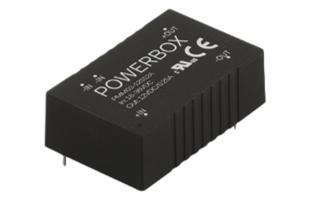

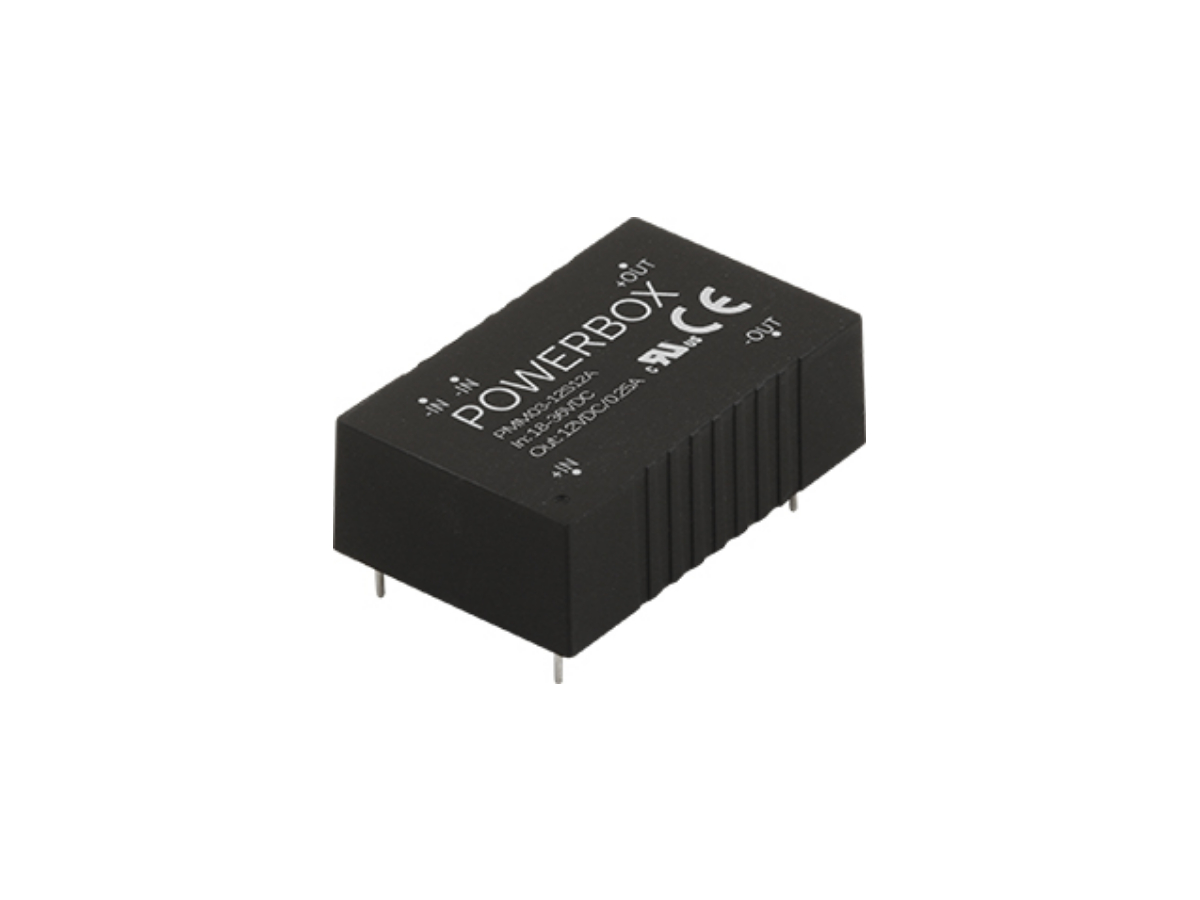

PMM10-24SW

PMM10-24SW

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM10-24S3P3WA PMM10-24S05WA PMM10-24S12WA PMM10-24S15WA PMM10-24S24WA PMM10-24S3P3WB PMM10-24S05WB PMM10-24S12WB PMM10-24S15WB PMM10-24S24WB
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 36V DC9 - 36V DC9 - 36V DC9 - 36V
Output Voltage / Current 3.3V 2.5A 5V 2A 12V 0.83A 15V 0.67A 24V 0.416A 3.3V 2.5A 5V 2A 12V 0.83A 15V 0.67A 24V 0.416A
Output Power 10W 10W 10W 10W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 76℃ -40 to 76℃ -40 to 76℃ -40 to 76℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMM10-24S3P3WA PMM10-24S05WA PMM10-24S12WA PMM10-24S15WA PMM10-24S24WA PMM10-24S3P3WB PMM10-24S05WB PMM10-24S12WB PMM10-24S15WB PMM10-24S24WB
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
