PRODUCTS DC-DC PMM SERIES PMM10-12D
Enquire

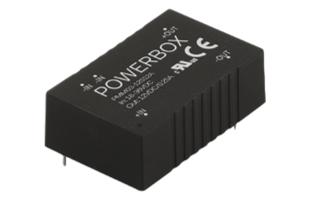

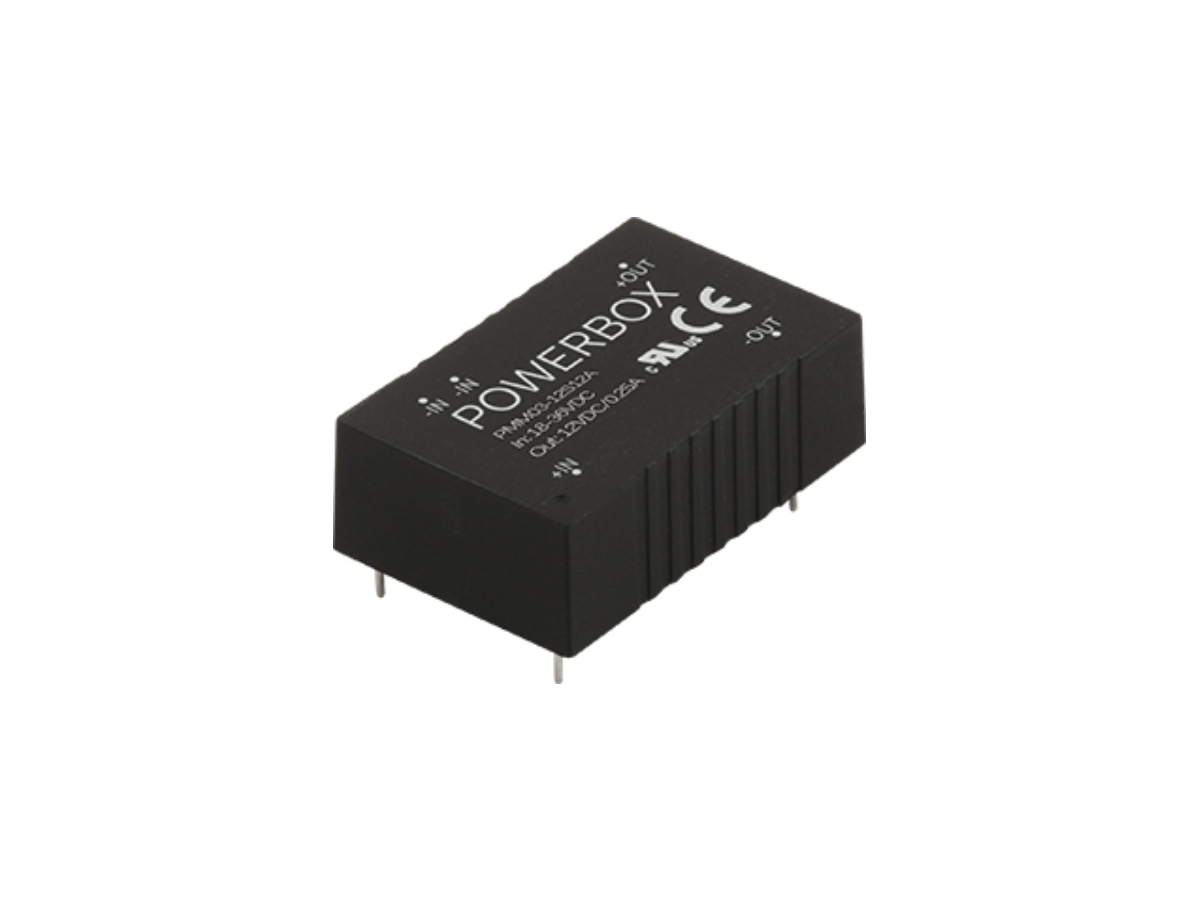

PMM10-12D

PMM10-12D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM10-12D05A PMM10-12D12A PMM10-12D15A PMM10-12D05B PMM10-12D12B PMM10-12D15B
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 18V DC9 - 18V
Output Voltage / Current V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A		 V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A
Output Power 10W 10W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 76℃ -40 to 76℃
Cooling Method Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMM10-12D05A PMM10-12D12A PMM10-12D15A PMM10-12D05B PMM10-12D12B PMM10-12D15B
Performance Data On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request
Reliability Data
