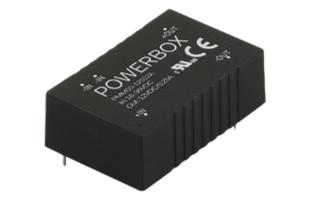

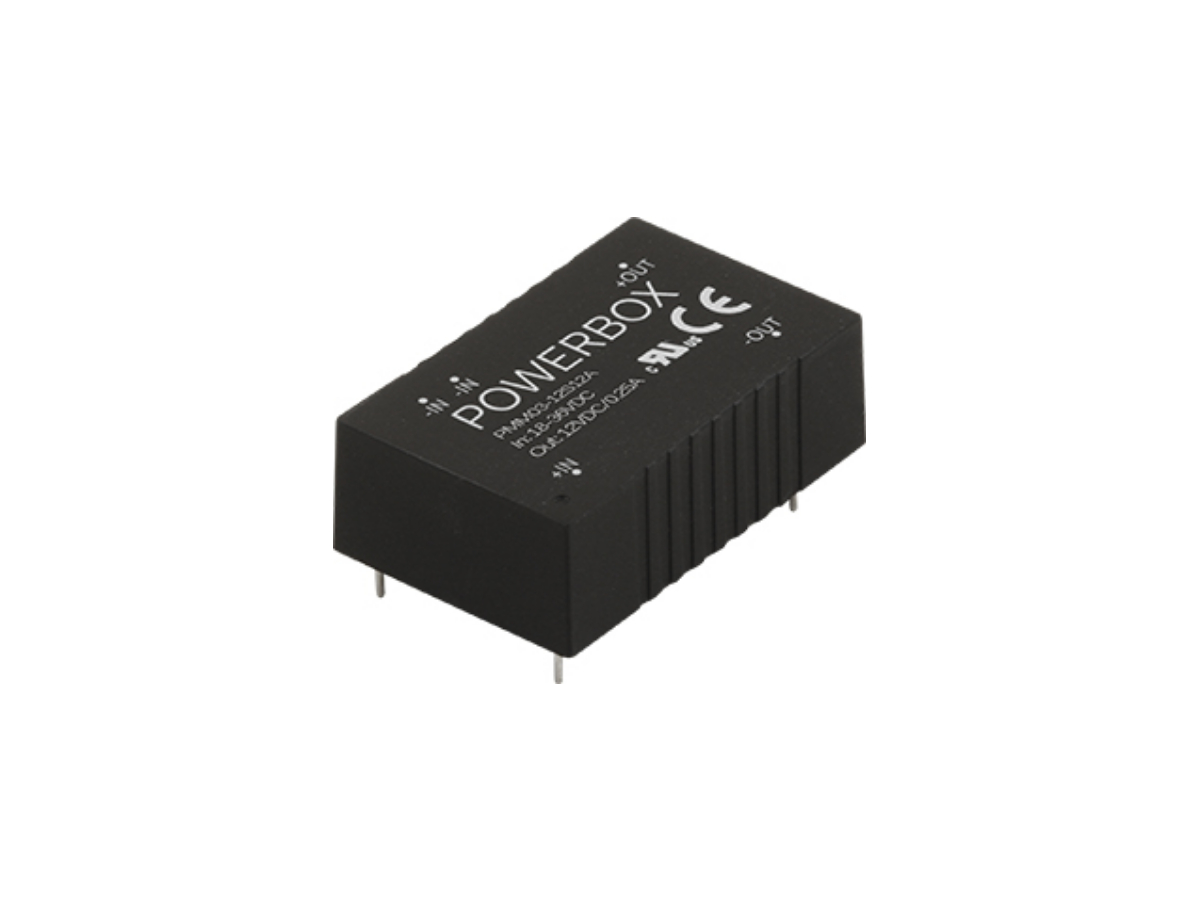

PMM06-24S

PMM06-24S

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM06-24S3P3A PMM06-24S05A PMM06-24S12A PMM06-24S15A PMM06-24S24A PMM06-24S3P3WA PMM06-24S05WA PMM06-24S12WA PMM06-24S15WA PMM06-24S24WA PMM06-24S3P3B PMM06-24S05B PMM06-24S12B PMM06-24S15B PMM06-24S24B PMM06-24S3P3WB PMM06-24S05WB PMM06-24S12WB PMM06-24S15WB PMM06-24S24WB
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V
Output Voltage / Current 3.3V 1.8A 5V 1.2A 12V 0.5A 15V 0.4A 24V 0.25A 3.3V 1.8A 5V 1.2A 12V 0.5A 15V 0.4A 24V 0.25A 3.3V 1.8A 5V 1.2A 12V 0.5A 15V 0.4A 24V 0.25A 3.3V 1.8A 5V 1.2A 12V 0.5A 15V 0.4A 24V 0.25A
Output Power 6W 6W 6W 6W 6W 6W 6W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 87℃ -40 to 87℃ -40 to 87℃ -40 to 87℃ -40 to 87℃ -40 to 87℃ -40 to 87℃
Cooling Method Convection Convection Convection Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMM06-24S3P3A PMM06-24S05A PMM06-24S12A PMM06-24S15A PMM06-24S24A PMM06-24S3P3WA PMM06-24S05WA PMM06-24S12WA PMM06-24S15WA PMM06-24S24WA PMM06-24S3P3B PMM06-24S05B PMM06-24S12B PMM06-24S15B PMM06-24S24B PMM06-24S3P3WB PMM06-24S05WB PMM06-24S12WB PMM06-24S15WB PMM06-24S24WB
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
