PRODUCTS DC-DC PMM SERIES PMM03-24D
Enquire

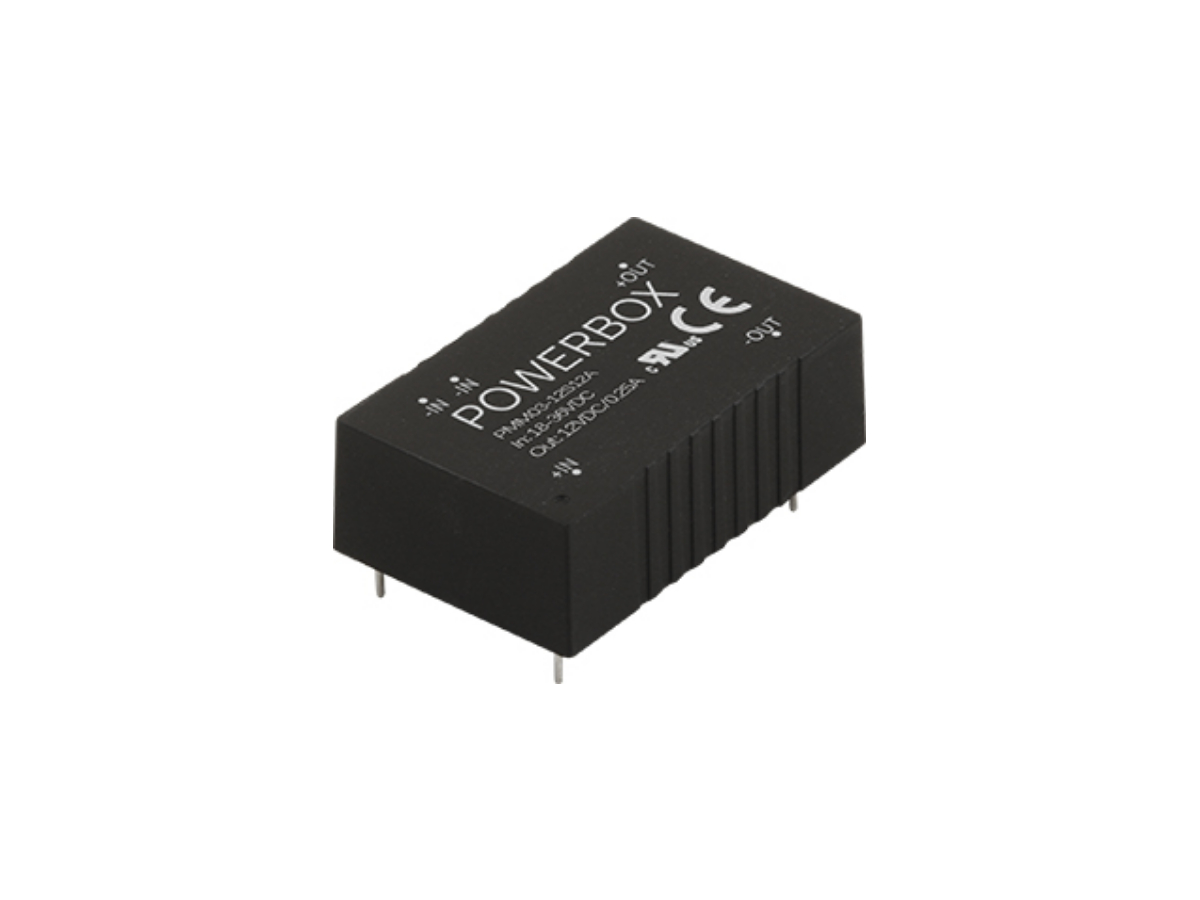

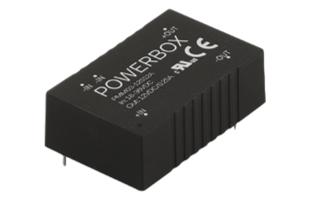

PMM03-24D

PMM03-24D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM03-24D05A PMM03-24D12A PMM03-24D15A PMM03-24D05WA PMM03-24D12WA PMM03-24D15WA PMM03-24D05B PMM03-24D12B PMM03-24D15B PMM03-24D05WB PMM03-24D12WB PMM03-24D15WB
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V
Output Voltage / Current V1: 5V 0.3A
V2: 5V 0.3A		 V1: 12V 0.125A
V2: 12V 0.125A		 V1: 15V 0.1A
V2: 15V 0.1A		 V1: 5V 0.3A
V2: 5V 0.3A		 V1: 12V 0.125A
V2: 12V 0.125A		 V1: 15V 0.1A
V2: 15V 0.1A		 V1: 5V 0.3A
V2: 5V 0.3A		 V1: 12V 0.125A
V2: 12V 0.125A		 V1: 15V 0.1A
V2: 15V 0.1A		 V1: 5V 0.3A
V2: 5V 0.3A		 V1: 12V 0.125A
V2: 12V 0.125A		 V1: 15V 0.1A
V2: 15V 0.1A
Output Power 3W 3W 3W 3W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMM03-24D05A PMM03-24D12A PMM03-24D15A PMM03-24D05WA PMM03-24D12WA PMM03-24D15WA PMM03-24D05B PMM03-24D12B PMM03-24D15B PMM03-24D05WB PMM03-24D12WB PMM03-24D15WB
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request
