PRODUCTS DC-DC PMM SERIES PMM03-12S
Enquire

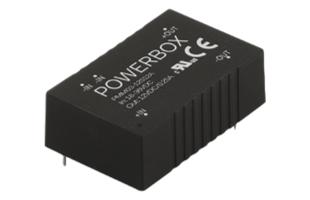

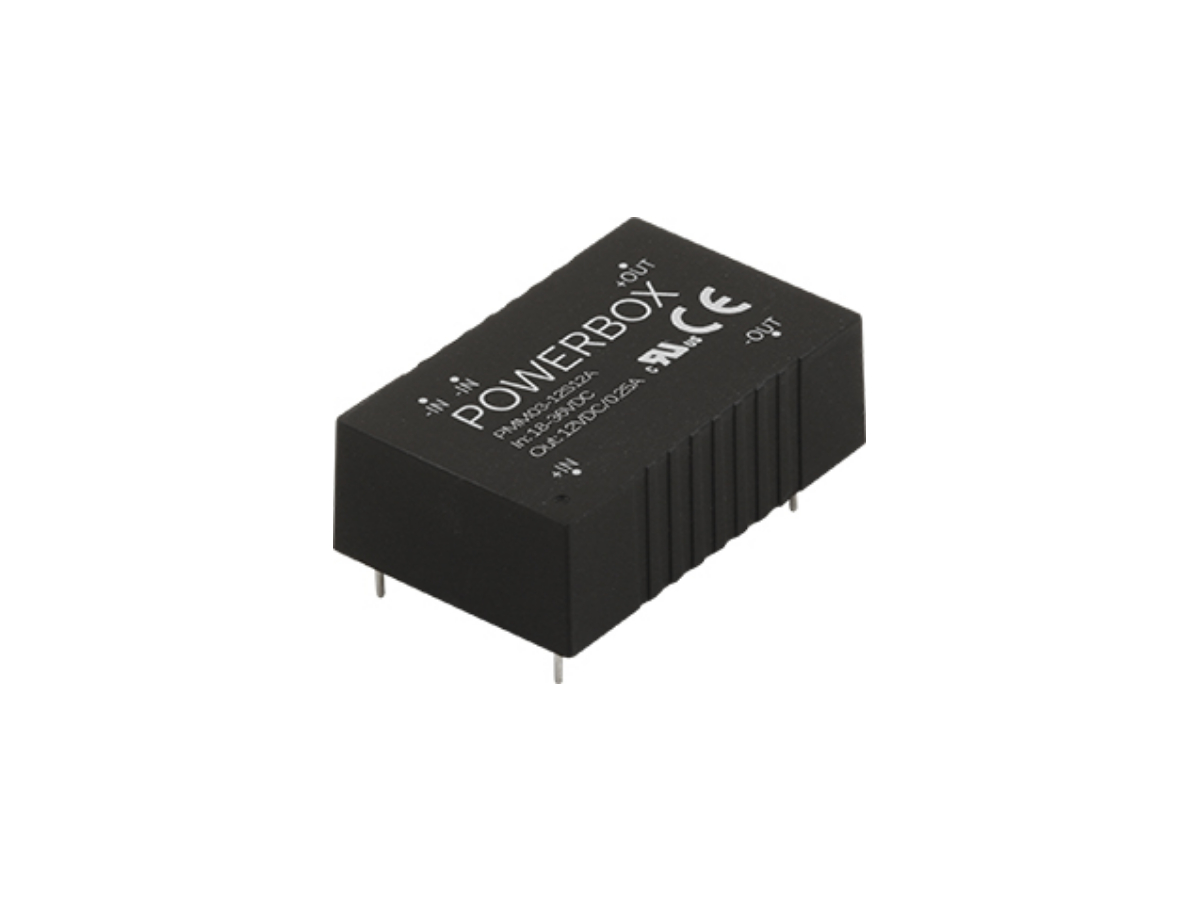

PMM03-12S

PMM03-12S

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM03-12S3P3A PMM03-12S05A PMM03-12S12A PMM03-12S15A PMM03-12S24A PMM03-12S3P3B PMM03-12S05B PMM03-12S12B PMM03-12S15B PMM03-12S24B
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V
Output Voltage / Current 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A 3.3V 1A 5V 0.6A 12V 0.25A 15V 0.2A 24V 0.125A
Output Power 3W 3W 3W 3W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 94℃ -40 to 94℃ -40 to 94℃ -40 to 94℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMM03-12S3P3A PMM03-12S05A PMM03-12S12A PMM03-12S15A PMM03-12S24A PMM03-12S3P3B PMM03-12S05B PMM03-12S12B PMM03-12S15B PMM03-12S24B
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
