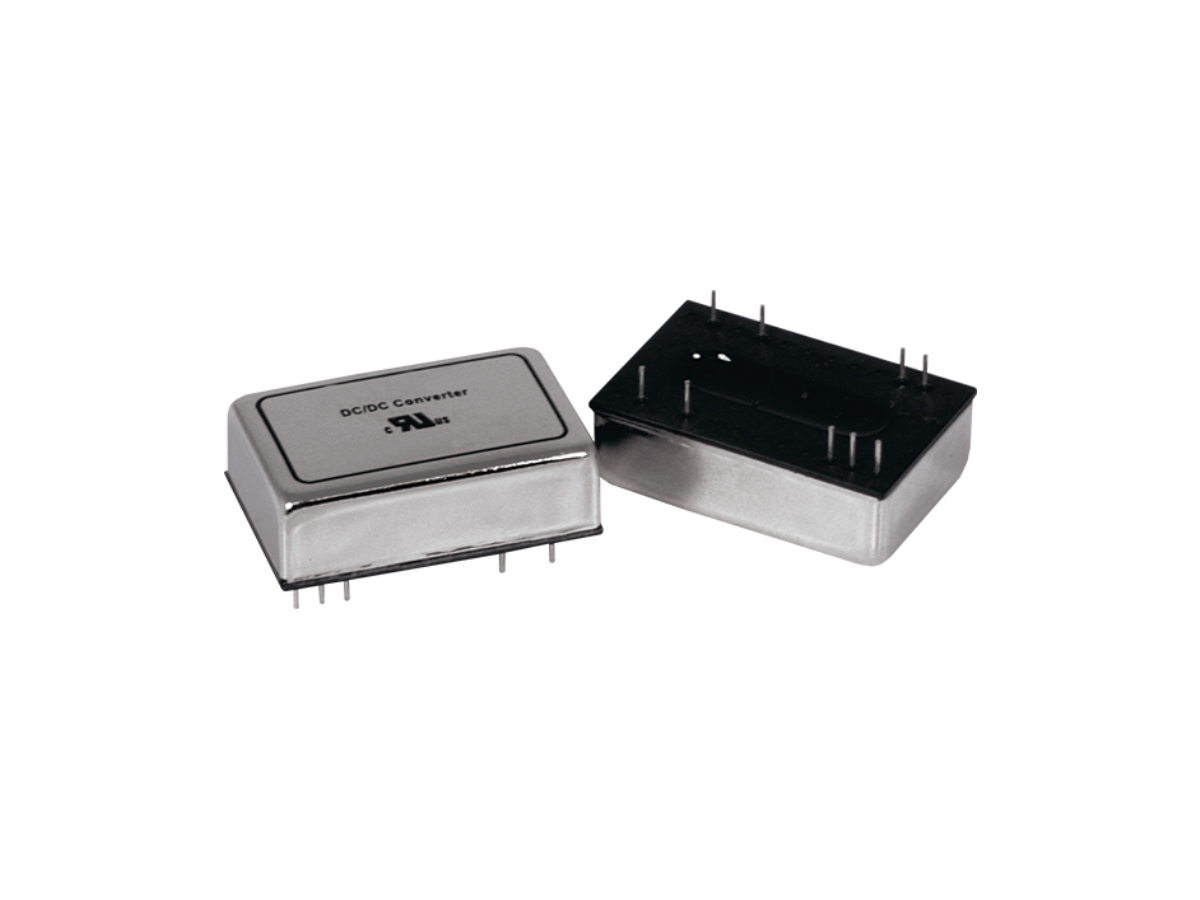

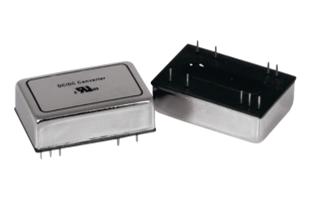

PME20-24DW
Options
Drawings
Safety Certificates
Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.
| Basic Specification | PME20-24D05W | PME20-24D12W | PME20-24D15W |
|---|---|---|---|
| Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | DC9 - 36V | ||
| Output Voltage / Current | V1: 5V 2A V2: -5V 2A |
V1: 12V 0.833A V2: -12V 0.833A |
V1: 15V 0.666A V2: -15V 0.666A |
| Output Power | 20W | ||
| Output Voltage Adj Range | Refer to datasheet | ||
| Operating Temp (°C) | -40 to 56.1℃ | ||
| Cooling Method | Convection | ||
| Dimensions (W x H x D) | 40.6x10.2x50.8mm | ||
| Safety Agency Approvals | |||
| Technical Data | PME20-24D05W | PME20-24D12W | PME20-24D15W |
| Performance Data | On request | On request | On request |
| EMC Data | On request | On request | On request |
| Expected Life | N/A | N/A | N/A |
| MTBF | On request | On request | On request |
| Reliability Data | |||
