PRODUCTS DC-DC PME SERIES PME20-12T
Enquire

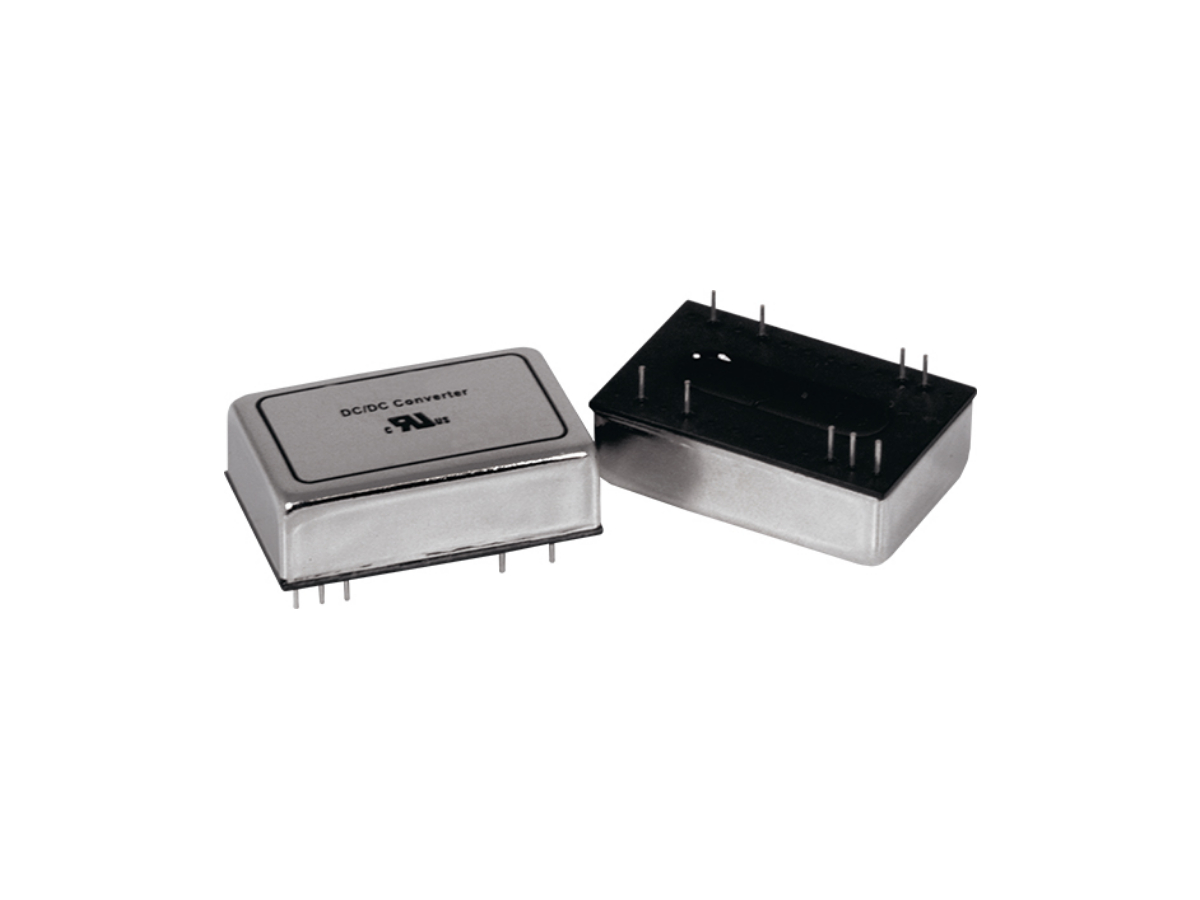

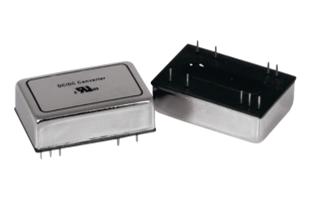

PME20-12T

PME20-12T

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single, Dual or Triple Outputs
  • 3W to 60W Output Power
  • SMD or TH Mounting
  • Various Protection Features

*PME03 and PME40 series will be discontinued on 31.08.2023

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PME20-12T3312 PME20-12T3315 PME20-12T0512 PME20-12T0515
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 18V DC9 - 18V
Output Voltage / Current V1: 3.3V 3A
V2: 12V 0.3A
V3: -12V 0.3A		 V1: 3.3V 3A
V2: 15V 0.25A
V3: -15V 0.25A		 V1: 5V 2A
V2: 12V 0.3A
V3: -12V 0.3A		 V1: 5V 2A
V2: 15V 0.25A
V3: -15V 0.25A
Output Power 20W 20W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 56.1℃ -40 to 56.1℃
Cooling Method Convection Convection
Dimensions (W x H x D) 40.6x10.2x50.8mm 40.6x10.2x50.8mm
Safety Agency Approvals
Technical Data PME20-12T3312 PME20-12T3315 PME20-12T0512 PME20-12T0515
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
Reliability Data
