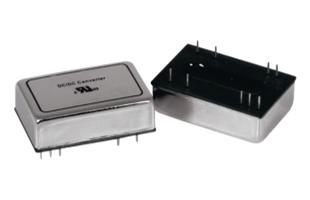

PME20-12S
Options
Drawings
Safety Certificates
Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.
| Basic Specification | PME20-12S33 | PME20-12S05 | PME20-12S12 | PME20-12S15 |
|---|---|---|---|---|
| Check Stock | Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | DC9 - 18V | DC9 - 18V | ||
| Output Voltage / Current | 3.3V 4A | 5V 4A | 12V 1.67A | 15V 1.33A |
| Output Power | 20W | 20W | ||
| Output Voltage Adj Range | Refer to datasheet | Refer to datasheet | ||
| Operating Temp (°C) | -40 to 56.1℃ | -40 to 56.1℃ | ||
| Cooling Method | Convection | Convection | ||
| Dimensions (W x H x D) | 40.6x10.2x50.8mm | 40.6x10.2x50.8mm | ||
| Safety Agency Approvals | ||||
| Technical Data | PME20-12S33 | PME20-12S05 | PME20-12S12 | PME20-12S15 |
| Performance Data | On request | On request | On request | On request |
| EMC Data | On request | On request | On request | On request |
| Expected Life | N/A | N/A | N/A | N/A |
| MTBF | On request | On request | On request | On request |
| Reliability Data | ||||
