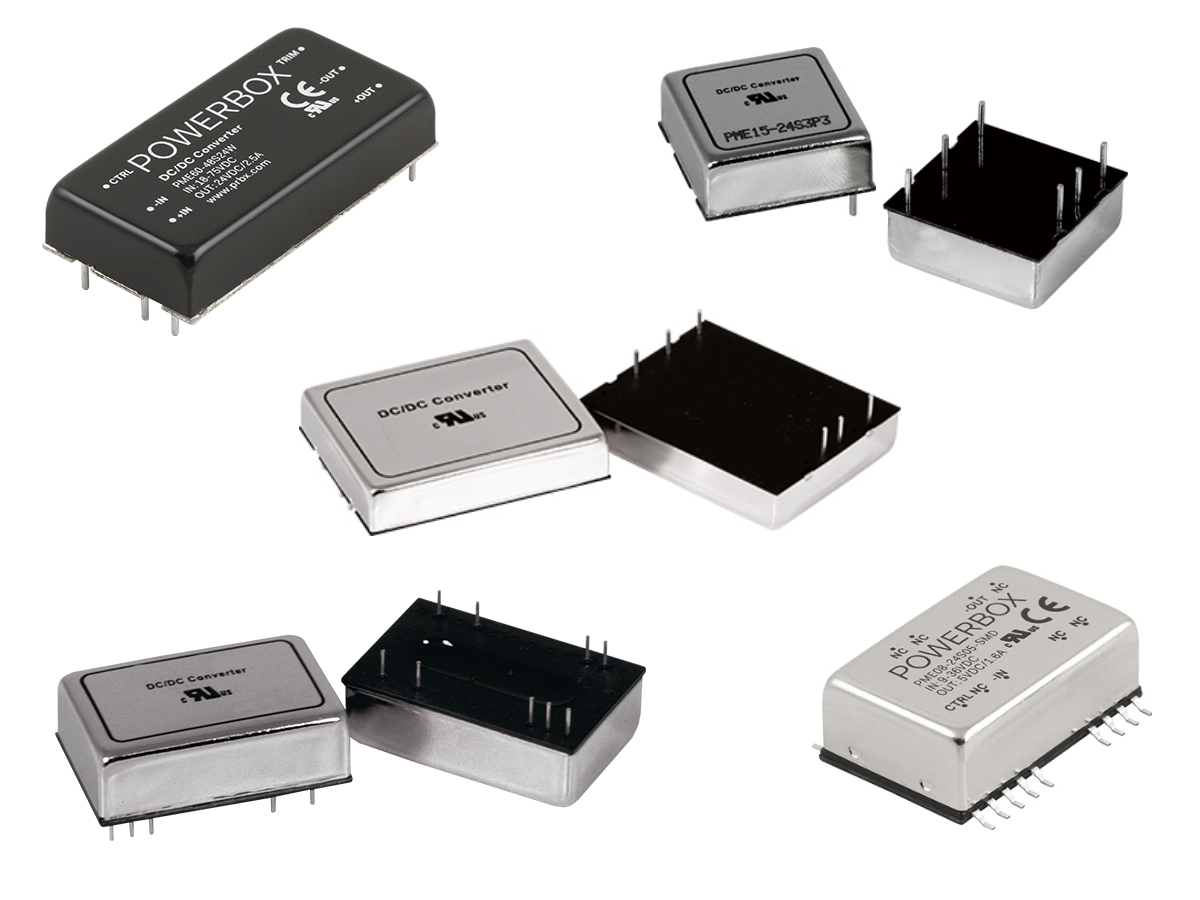

PME Series
NEW
NRND
to be discontinued
NEW MODELS
Key Product Features
- Low Power DC-DC Converter
- Various Input Voltages
- Single, Dual or Triple Outputs
- 3W to 60W Output Power
- SMD or TH Mounting
- Various Protection Features
*PME03 and PME40 series will be discontinued on 31.08.2023
Industries
- Industrial
- Mil Def Compliant
- Transportation
| PME Models | Datasheet | Input Voltage | Output Type | Output Voltages | Output Power | Cooling Method | ||
|---|---|---|---|---|---|---|---|---|
| Convection | Conduction | Forced Air | ||||||
| PME05-12D | View Outputs | W | ||||||
| PME05-12S | View Outputs | W | ||||||
| PME05-24D | View Outputs | W | ||||||
| PME05-24S | View Outputs | W | ||||||
| PME05-48D | View Outputs | W | ||||||
| PME05-48S | View Outputs | W | ||||||
| PME08-110DW | DC43 - 160V | Dual | View Outputs | 8W | ||||
| PME08-110SW | DC43 - 160V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME08-12D | DC9 - 18V | Dual | View Outputs | 8W | ||||
| PME08-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME08-24D | DC18 - 36V | Dual | View Outputs | 8W | ||||
| PME08-24DW | DC9 - 36V | Dual | View Outputs | 8W | ||||
| PME08-24S | DC18 - 36V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME08-24SW | DC9 - 36V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME08-48D | DC36 - 75V | Dual | View Outputs | 8W | ||||
| PME08-48DW | DC18 - 75V | Dual | View Outputs | 8W | ||||
| PME08-48S | DC36 - 75V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME08-48SW | DC18 - 75V | Single | 3.3V, 5V, 12V, 15V | 8W | ||||
| PME10-12D | DC9 - 18V | Dual | View Outputs | 10W | ||||
| PME10-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V | 10W | ||||
| PME10-24D | DC18 - 36V, DC9 - 36V | Dual | View Outputs | 10W | ||||
| PME10-24DW | DC9 - 36V | Dual | View Outputs | 10W | ||||
| PME10-24S | DC18 - 36V, DC9 - 36V | Single | 3.3V, 5V, 12V, 15V | 10W | ||||
| PME10-24SW | DC9 - 36V | Single | 3.3V, 5V, 12V, 15V | 10W | ||||
| PME10-48D | DC36 - 75V, DC18 - 75V | Dual | View Outputs | 10W | ||||
| PME10-48DW | DC18 - 75V | Dual | View Outputs | 10W | ||||
| PME10-48S | DC36 - 75V, DC18 - 75V | Single | 3.3V, 5V, 12V, 15V | 10W | ||||
| PME10-48SW | DC18 - 75V | Single | 3.3V, 5V, 12V, 15V | 10W | ||||
| PME15-12D | View Outputs | W | ||||||
| PME15-12S | View Outputs | W | ||||||
| PME15-24D | View Outputs | W | ||||||
| PME15-24DW | View Outputs | W | ||||||
| PME15-24S | View Outputs | W | ||||||
| PME15-24SW | View Outputs | W | ||||||
| PME15-48D | View Outputs | W | ||||||
| PME15-48DW | View Outputs | W | ||||||
| PME15-48S | View Outputs | W | ||||||
| PME15-48SW | View Outputs | W | ||||||
| PME20-12D | DC9 - 18V | Dual | View Outputs | 20W | ||||
| PME20-12S | DC9 - 18V | Single | 3.3V, 5V, 12V, 15V | 20W | ||||
| PME20-12T | DC9 - 18V | Triple | View Outputs | 20W | ||||
| PME20-24D | DC18 - 36V, DC9 - 36V | Dual | View Outputs | 20W | ||||
| PME20-24DW | DC9 - 36V | Dual | View Outputs | 20W | ||||
| PME20-24S | DC18 - 36V, DC9 - 36V | Single | 3.3V, 5V, 12V, 15V | 20W | ||||
| PME20-24SW | DC9 - 36V | Single | 3.3V, 5V, 12V, 15V | 20W | ||||
| PME20-24T | DC18 - 36V | Triple | View Outputs | 20W | ||||
| PME20-48D | DC36 - 75V, DC18 - 75V | Dual | View Outputs | 20W | ||||
| PME20-48DW | DC18 - 75V | Dual | View Outputs | 20W | ||||
| PME20-48S | DC36 - 75V, DC18 - 75V | Single | 3.3V, 5V, 12V, 15V | 20W | ||||
| PME20-48SW | DC18 - 75V | Single | 3.3V, 5V, 12V, 15V | 20W | ||||
| PME20-48T | DC36 - 75V | Triple | View Outputs | 20W | ||||
| PME40-12D | View Outputs | W | ||||||
| PME40-12S | View Outputs | W | ||||||
| PME40-12T | View Outputs | W | ||||||
| PME40-24D | View Outputs | W | ||||||
| PME40-24DW | View Outputs | W | ||||||
| PME40-24S | View Outputs | W | ||||||
| PME40-24SW | View Outputs | W | ||||||
| PME40-24T | View Outputs | W | ||||||
| PME40-48D | View Outputs | W | ||||||
| PME40-48DW | View Outputs | W | ||||||
| PME40-48S | View Outputs | W | ||||||
| PME40-48SW | View Outputs | W | ||||||
| PME40-48T | View Outputs | W | ||||||
| PME60-12D | View Outputs | W | ||||||
| PME60-12S | View Outputs | W | ||||||
| PME60-24D | View Outputs | W | ||||||
| PME60-24DW | View Outputs | W | ||||||
| PME60-24S | View Outputs | W | ||||||
| PME60-24SW | View Outputs | W | ||||||
| PME60-48D | View Outputs | W | ||||||
| PME60-48DW | View Outputs | W | ||||||
| PME60-48S | View Outputs | W | ||||||
| PME60-48SW | View Outputs | W | ||||||
