PRODUCTS DC-DC PMD SERIES PMD30-24SW

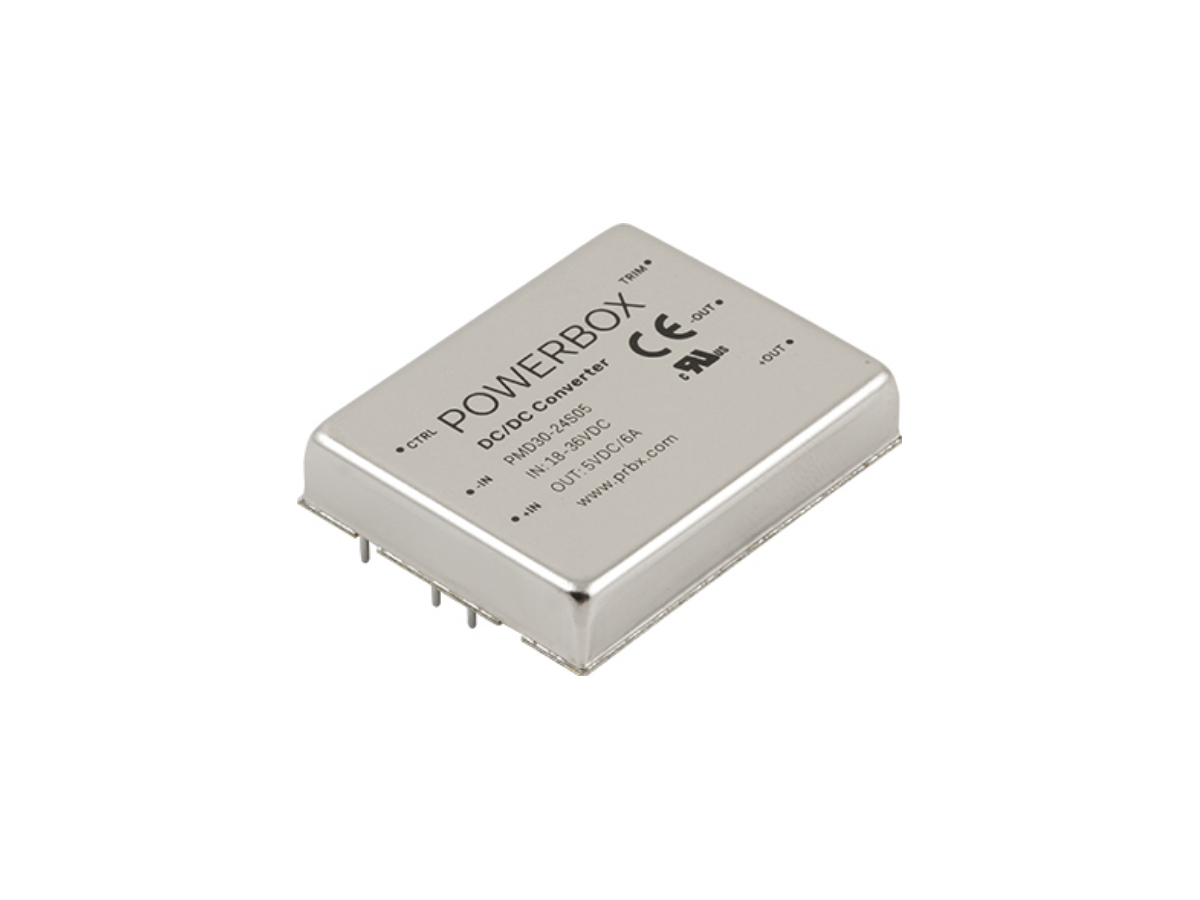

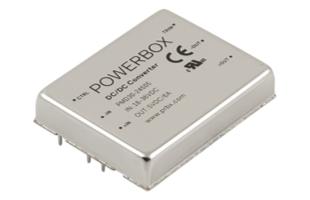

PMD30-24SW

Key Product Features

Low Power DC-DC Converter
Various Input Voltages
Single or Dual Outputs
12W to 30W Output Power
Various Protection Features
5 or 6 Side Fully Shielded

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	PMD30-24S1P5W	PMD30-24S1P8W	PMD30-24S2P5W	PMD30-24S3P3W	PMD30-24S05W	PMD30-24S12W	PMD30-24S15W
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC10 - 40V			DC10 - 40V			DC10 - 40V
Output Voltage / Current	1.5V 8A	1.8V 8A	2.5V 8A	3.3V 6A	5V 6A	12V 2.5A	15V 2A
Output Power	30W			30W			30W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 59℃			-40 to 59℃			-40 to 59℃
Cooling Method	Convection			Convection			Convection
Dimensions (W x H x D)	40.6x10.2x50.8mm			40.6x10.2x50.8mm			40.6x10.2x50.8mm
Safety Agency Approvals
Technical Data	PMD30-24S1P5W	PMD30-24S1P8W	PMD30-24S2P5W	PMD30-24S3P3W	PMD30-24S05W	PMD30-24S12W	PMD30-24S15W
Performance Data	On request	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request	On request
Reliability Data
