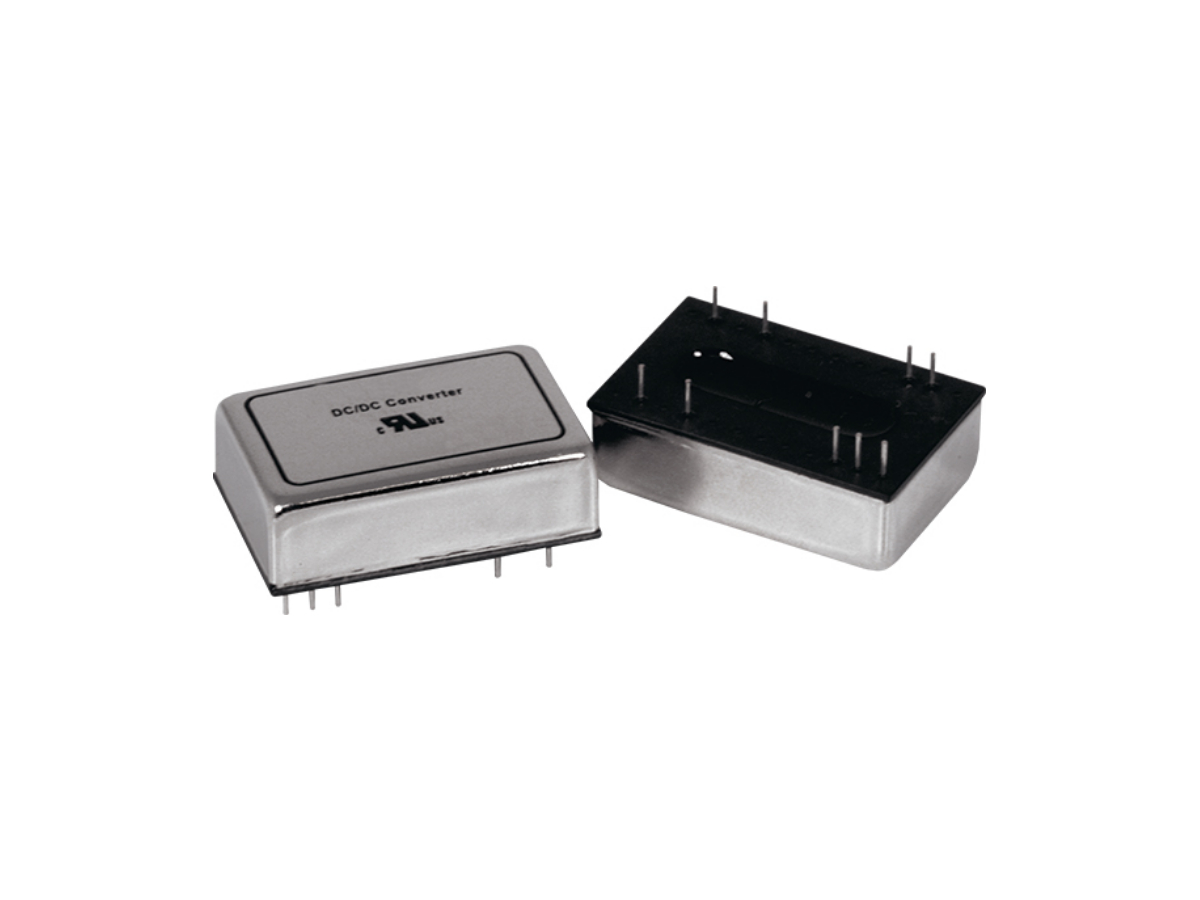

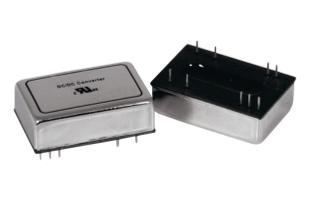

PMD15-48D
Options
Drawings
Safety Certificates
Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.
| Basic Specification | PMD15-48D05 | PMD15-48D12 | PMD15-48D15 |
|---|---|---|---|
| Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | DC36 - 75V | ||
| Output Voltage / Current | V1: 5V 1.5A V2: 5V 1.5A |
V1: 12V 0.625A V2: 12V 0.625A |
V1: 15V 0.5A V2: 15V 0.5A |
| Output Power | 15W | ||
| Output Voltage Adj Range | Refer to datasheet | ||
| Operating Temp (°C) | -40 to 63℃ | ||
| Cooling Method | Convection | ||
| Dimensions (W x H x D) | 25.4x10.2x50.8mm | ||
| Safety Agency Approvals | |||
| Technical Data | PMD15-48D05 | PMD15-48D12 | PMD15-48D15 |
| Performance Data | On request | On request | On request |
| EMC Data | On request | On request | On request |
| Expected Life | N/A | N/A | N/A |
| MTBF | On request | On request | On request |
| Reliability Data | |||
