PRODUCTS DC-DC PHB SERIES PHB50-48SW
Enquire

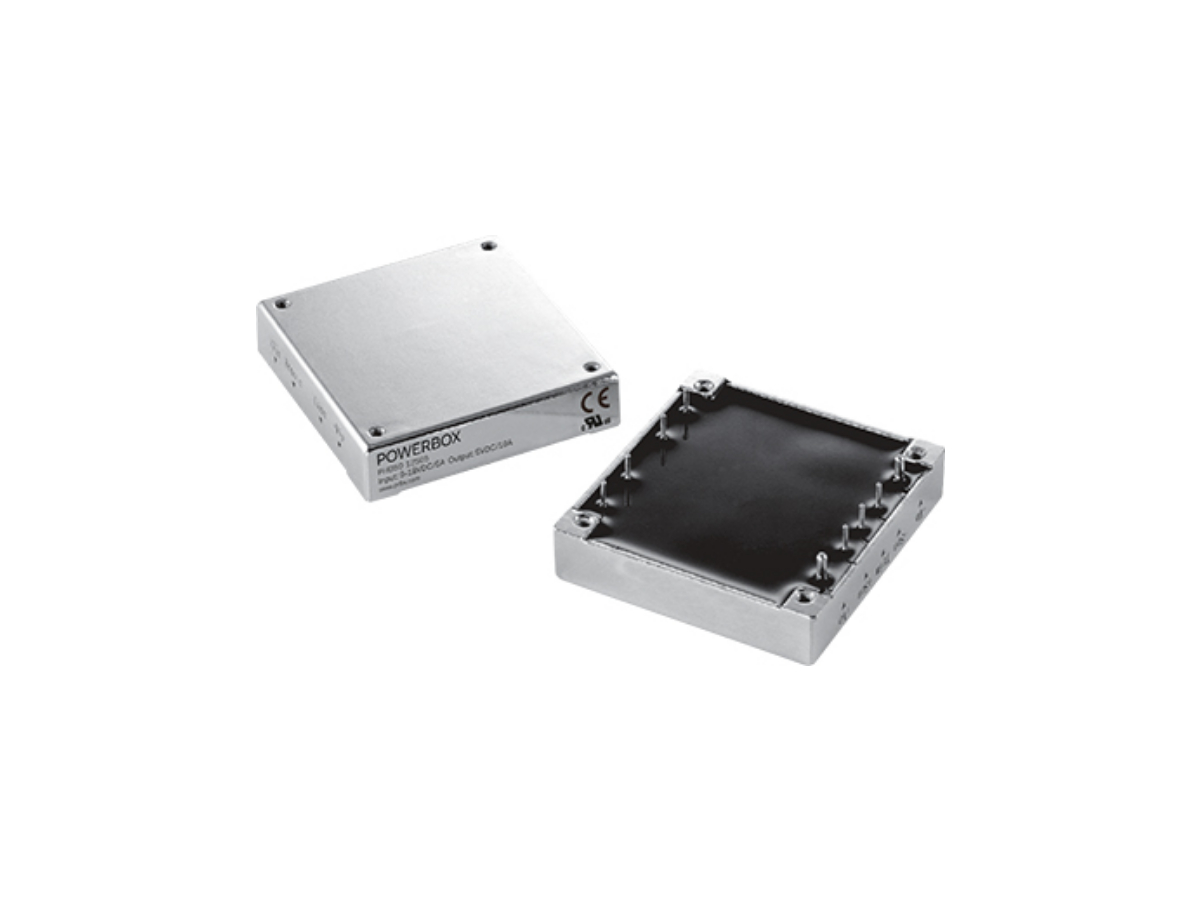

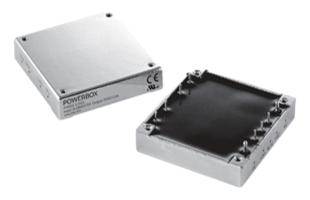

PHB50-48SW

PHB50-48SW

Key Product Features

  • 1/2 Brick Size DC-DC Converter
  • 33W - 350W Output Power
  • Up to 425V Input
  • Various Protection Features
  • Conduction Cooled
  • Up to 92% Efficiency

PHB150W series will be discontinued on 31.08.2023

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PHB50W-48S33 PHB50W-48S05 PHB50W-48S12 PHB50W-48S15 PHB50W-48S24 PHB50W-48S28 PHB50W-48S48 PHB50W-48S33N PHB50W-48S05N PHB50W-48S12N PHB50W-48S15N PHB50W-48S24N PHB50W-48S28N PHB50W-48S48N
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V DC18 - 75V DC18 - 75V DC18 - 75V
Output Voltage / Current 3.3V 10A 5V 10A 12V 4.16A 15V 3.33A 24V 2.08A 28V 1.78A 48V 1.04A 3.3V 10A 5V 10A 12V 4.16A 15V 3.33A 24V 2.08A 28V 1.78A 48V 1.04A
Output Power 33W 50W 50W 33W 50W 50W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃
Cooling Method Convection;Conduction/baseplate Convection;Conduction/baseplate Convection;Conduction/baseplate Convection;Conduction/baseplate Convection;Conduction/baseplate
Dimensions (W x H x D) 57.9x12.7x61mm 57.9x12.7x61mm 57.9x12.7x61mm 57.9x12.7x61mm 57.9x12.7x61mm
Safety Agency Approvals
Technical Data PHB50W-48S33 PHB50W-48S05 PHB50W-48S12 PHB50W-48S15 PHB50W-48S24 PHB50W-48S28 PHB50W-48S48 PHB50W-48S33N PHB50W-48S05N PHB50W-48S12N PHB50W-48S15N PHB50W-48S24N PHB50W-48S28N PHB50W-48S48N
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Reliability Data
