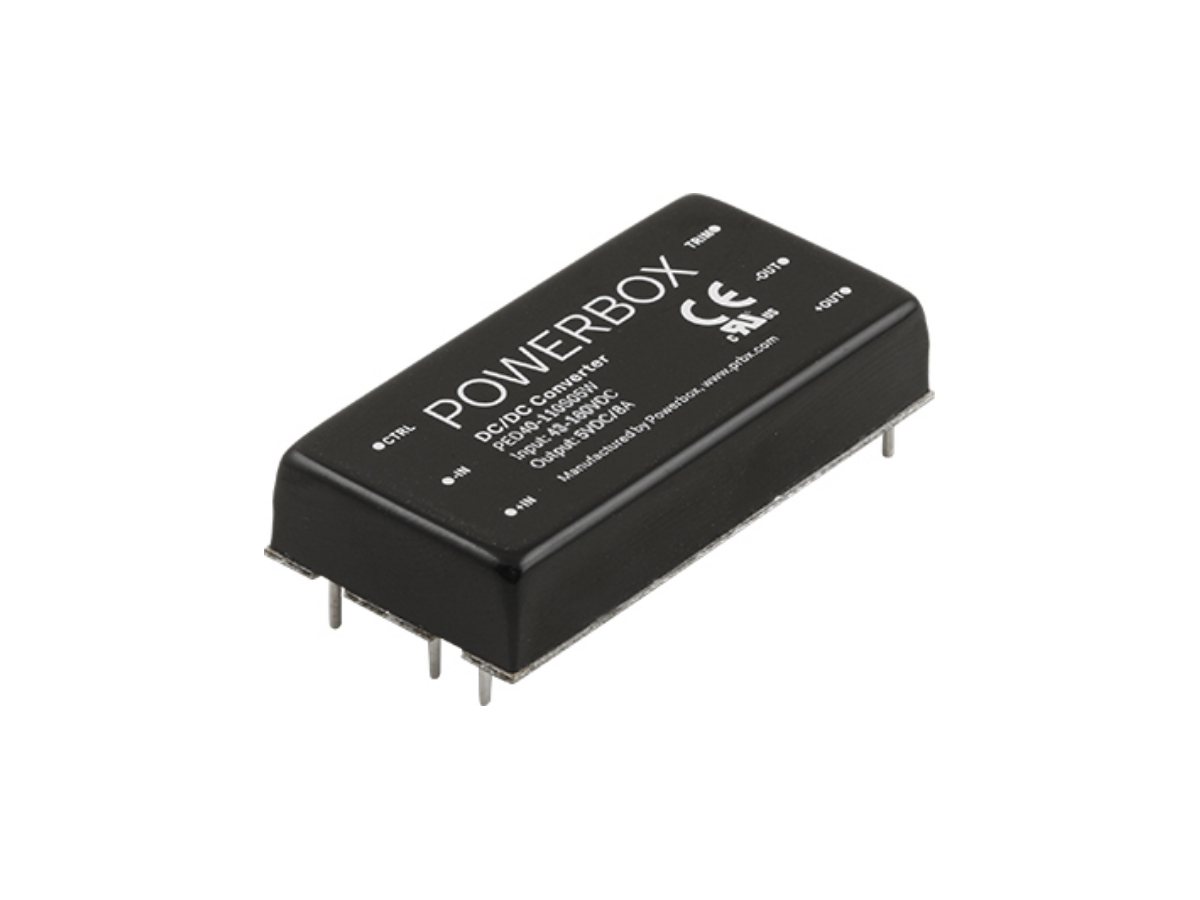

PRODUCTS DC-DC PED SERIES PED40-48DW

PED40-48DW

Key Product Features

Low Power DC-DC Converter
Various Input Voltages
Single or Dual Outputs
40W Output Power
Railway Certified
Industry Standard 2"x1" Package

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	PED40-48D12W	PED40-48D15W	PED40-48D24W
	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC18 - 75V
Output Voltage / Current	V1: 12V 1.666A V2: 12V 1.666A	V1: 15V 1.333A V2: 15V 1.333A	V1: 24V 0.833A V2: 24V 0.833A
Output Power	40W
Output Voltage Adj Range	Refer to datasheet
Operating Temp (°C)	-40 to 62℃
Cooling Method	Convection
Dimensions (W x H x D)	25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data	PED40-48D12W	PED40-48D15W	PED40-48D24W
Performance Data	On request	On request	On request
EMC Data	On request	On request	On request
Expected Life	N/A	N/A	N/A
MTBF	On request	On request	On request
Reliability Data
