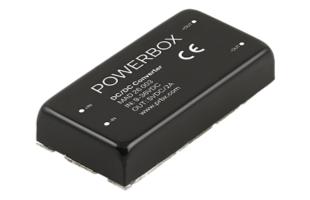

MAD26

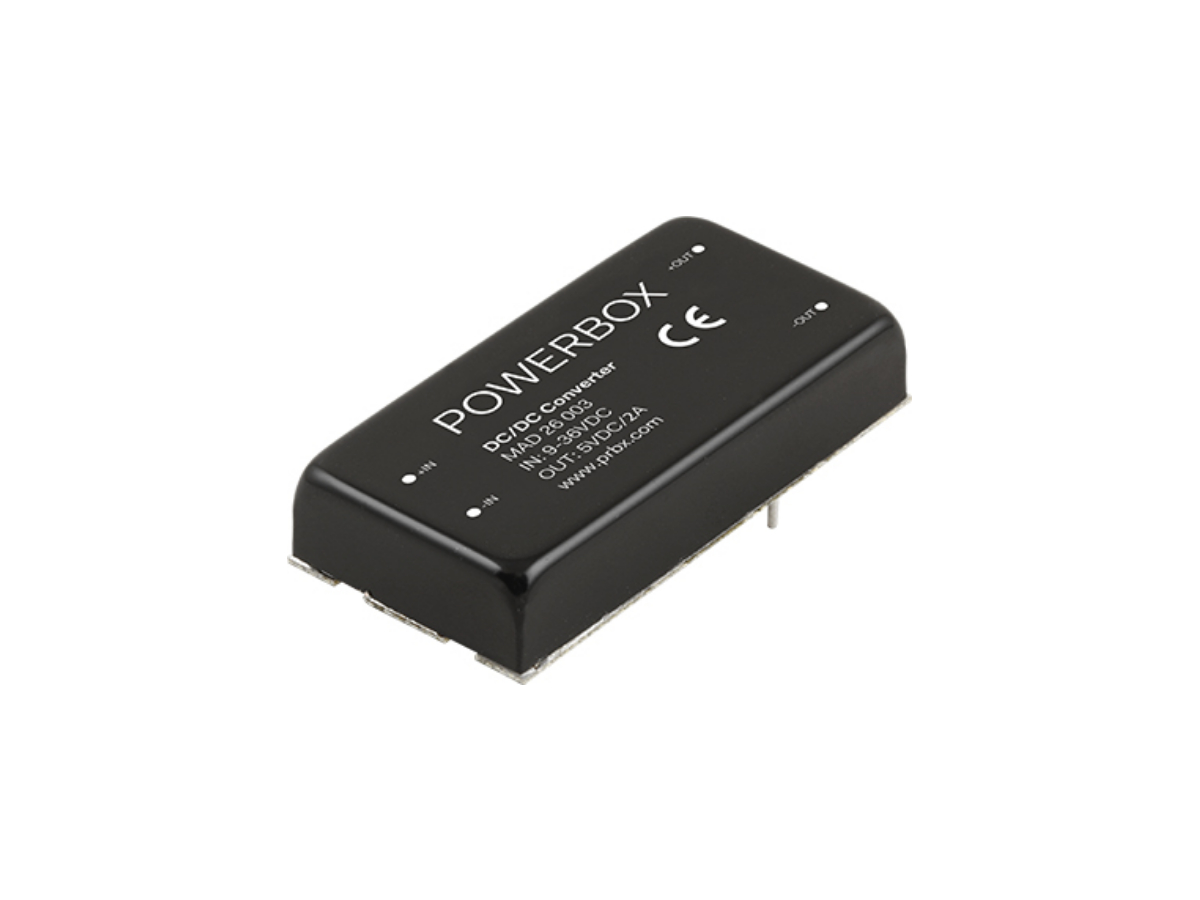

MAD26

Key Product Features

  • Low Power DC-DC Converter
  • SMD or TH Option
  • Various Input Voltages
  • Single or Dual Outputs
  • 5-10W Output Power

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification MAD26003 MAD26006 MAD26009 MAD26015 MAD26018 MAD26019 MAD26001 MAD26021 MAD26024 MAD26027 MAD26033 MAD26036 MAD26039 MAD26042
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC9 - 36V DC9 - 36V DC9 - 36V DC9 - 36V, DC18 - 72V DC9 - 36V, DC18 - 72V DC9 - 36V, DC18 - 72V
Output Voltage / Current 5V 2A 12V 0.83A 15V 0.666A V1: 12V 0.415A
V2: -12V 0.415A		 V1: 15V 0.333A
V2: -15V 0.333A		 V1: 5V 1A
V2: -5V 1A		 3.3V 2A 5V 2A 12V 0.83A 15V 0.666A V1: 12V 0.415A
V2: -12V 0.415A		 V1: 15V 0.333A
V2: -15V 0.333A		 V1: 5V 1A
V2: -5V 1A		 3.3V 2A
Output Power 10W 10W 6.6W 10W 10W 6.6W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃
Cooling Method Convection Convection Convection Convection Convection
Dimensions (W x H x D) 25.4x10.2x50.8mm 25.4x10.2x50.8mm 25.4x10.2x50.8mm 25.4x10.2x50.8mm 25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data MAD26003 MAD26006 MAD26009 MAD26015 MAD26018 MAD26019 MAD26001 MAD26021 MAD26024 MAD26027 MAD26033 MAD26036 MAD26039 MAD26042
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Reliability Data
