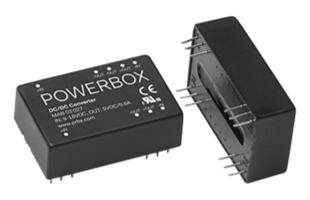

MAB06

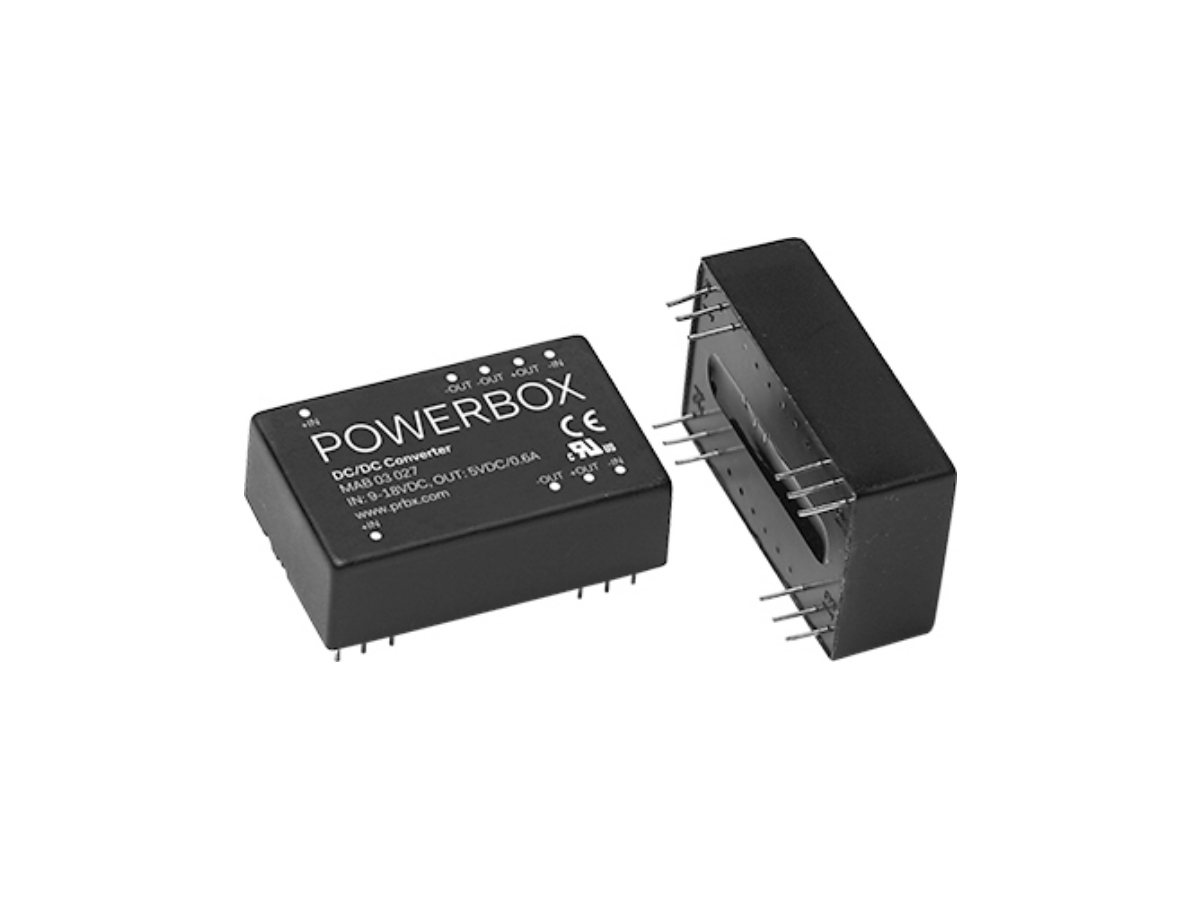

MAB06

Key Product Features

  • Low Power DC-DC Converter
  • SMD or TH Option
  • Various Input Voltages
  • Single or Dual Outputs
  • 2-3W Output Power
  • 3kV Optional Isolation

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification MAB06003 MAB06009 MAB06012 MAB06015 MAB06018 MAB06021 MAB06027 MAB06030 MAB06033 MAB06036 MAB06039 MAB06042 MAB06024 MAB06048 MAB06051 MAB06054 MAB06057 MAB06060 MAB06063 MAB06045 MAB06069 MAB06072 MAB06075 MAB06078 MAB06081 MAB06084 MAB06066 MAB06003M MAB06009M MAB06012M MAB06015M MAB06018M MAB06021M MAB06027M MAB06030M MAB06033M MAB06036M MAB06039M MAB06042M MAB06024M MAB06048M MAB06051M MAB06054M MAB06057M MAB06060M MAB06063M MAB06045M MAB06069M MAB06072M MAB06075M MAB06078M MAB06081M MAB06084M MAB06066M MAB06003HM MAB06009HM MAB06012HM MAB06015HM MAB06018HM MAB06021HM MAB06027HM MAB06030HM MAB06033HM MAB06036HM MAB06039HM MAB06042HM MAB06024HM MAB06048HM MAB06051HM MAB06054HM MAB06057HM MAB06060HM MAB06063HM MAB06045HM MAB06069HM MAB06072HM MAB06075HM MAB06078HM MAB06081HM MAB06084HM MAB06066HM MAB06003MS MAB06009MS MAB06012MS MAB06015MS MAB06018MS MAB06021MS MAB06027MS MAB06030MS MAB06033MS MAB06036MS MAB06039MS MAB06042MS MAB06024MS MAB06048MS MAB06051MS MAB06054MS MAB06057MS MAB06060MS MAB06063MS MAB06045MS MAB06069MS MAB06072MS MAB06075MS MAB06078MS MAB06081MS MAB06084MS MAB06066MS MAB06003HMS MAB06009HMS MAB06012HMS MAB06015HMS MAB06018HMS MAB06021HMS MAB06027HMS MAB06030HMS MAB06033HMS MAB06036HMS MAB06039HMS MAB06042HMS MAB06024HMS MAB06048HMS MAB06051HMS MAB06054HMS MAB06057HMS MAB06060HMS MAB06063HMS MAB06045HMS MAB06069HMS MAB06072HMS MAB06075HMS MAB06078HMS MAB06081HMS MAB06084HMS MAB06066HMS
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 6V DC4.5 - 6V DC4.5 - 6V, DC9 - 18V DC4.5 - 6V, DC9 - 18V DC4.5 - 6V, DC9 - 18V DC4.5 - 6V, DC9 - 18V, DC18 - 36V DC4.5 - 6V, DC9 - 18V, DC18 - 36V DC4.5 - 6V, DC9 - 18V, DC18 - 36V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V DC4.5 - 6V, DC9 - 18V, DC18 - 36V, DC36 - 72V
Output Voltage / Current 3.3V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.3A
V2: -5V 0.3A		 V1: 12V 0.125A
V2: -12V 0.125A		 V1: 15V 0.1A
V2: -15V 0.1A		 3.3V 0.6A
Output Power 2W 3W 3W 3W 3W 2W 3W 3W 2W 3W 3W 2W 3W 3W 3W 3W 2W 3W 3W 2W 3W 3W 2W 3W 3W 3W 3W 2W 3W 3W 2W 3W 3W 2W 3W 3W 3W 3W 2W 3W 3W 2W 3W 3W 2W 3W 3W 3W 3W 2W 3W 3W 2W 3W 3W 2W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃ -25 to 71℃
Cooling Method Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm 20.3x11.4x31.8mm
Safety Agency Approvals
Technical Data MAB06003 MAB06009 MAB06012 MAB06015 MAB06018 MAB06021 MAB06027 MAB06030 MAB06033 MAB06036 MAB06039 MAB06042 MAB06024 MAB06048 MAB06051 MAB06054 MAB06057 MAB06060 MAB06063 MAB06045 MAB06069 MAB06072 MAB06075 MAB06078 MAB06081 MAB06084 MAB06066 MAB06003M MAB06009M MAB06012M MAB06015M MAB06018M MAB06021M MAB06027M MAB06030M MAB06033M MAB06036M MAB06039M MAB06042M MAB06024M MAB06048M MAB06051M MAB06054M MAB06057M MAB06060M MAB06063M MAB06045M MAB06069M MAB06072M MAB06075M MAB06078M MAB06081M MAB06084M MAB06066M MAB06003HM MAB06009HM MAB06012HM MAB06015HM MAB06018HM MAB06021HM MAB06027HM MAB06030HM MAB06033HM MAB06036HM MAB06039HM MAB06042HM MAB06024HM MAB06048HM MAB06051HM MAB06054HM MAB06057HM MAB06060HM MAB06063HM MAB06045HM MAB06069HM MAB06072HM MAB06075HM MAB06078HM MAB06081HM MAB06084HM MAB06066HM MAB06003MS MAB06009MS MAB06012MS MAB06015MS MAB06018MS MAB06021MS MAB06027MS MAB06030MS MAB06033MS MAB06036MS MAB06039MS MAB06042MS MAB06024MS MAB06048MS MAB06051MS MAB06054MS MAB06057MS MAB06060MS MAB06063MS MAB06045MS MAB06069MS MAB06072MS MAB06075MS MAB06078MS MAB06081MS MAB06084MS MAB06066MS MAB06003HMS MAB06009HMS MAB06012HMS MAB06015HMS MAB06018HMS MAB06021HMS MAB06027HMS MAB06030HMS MAB06033HMS MAB06036HMS MAB06039HMS MAB06042HMS MAB06024HMS MAB06048HMS MAB06051HMS MAB06054HMS MAB06057HMS MAB06060HMS MAB06063HMS MAB06045HMS MAB06069HMS MAB06072HMS MAB06075HMS MAB06078HMS MAB06081HMS MAB06084HMS MAB06066HMS
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request On request
