PRODUCTS DC-DC ENA SERIES ENA30-24SW

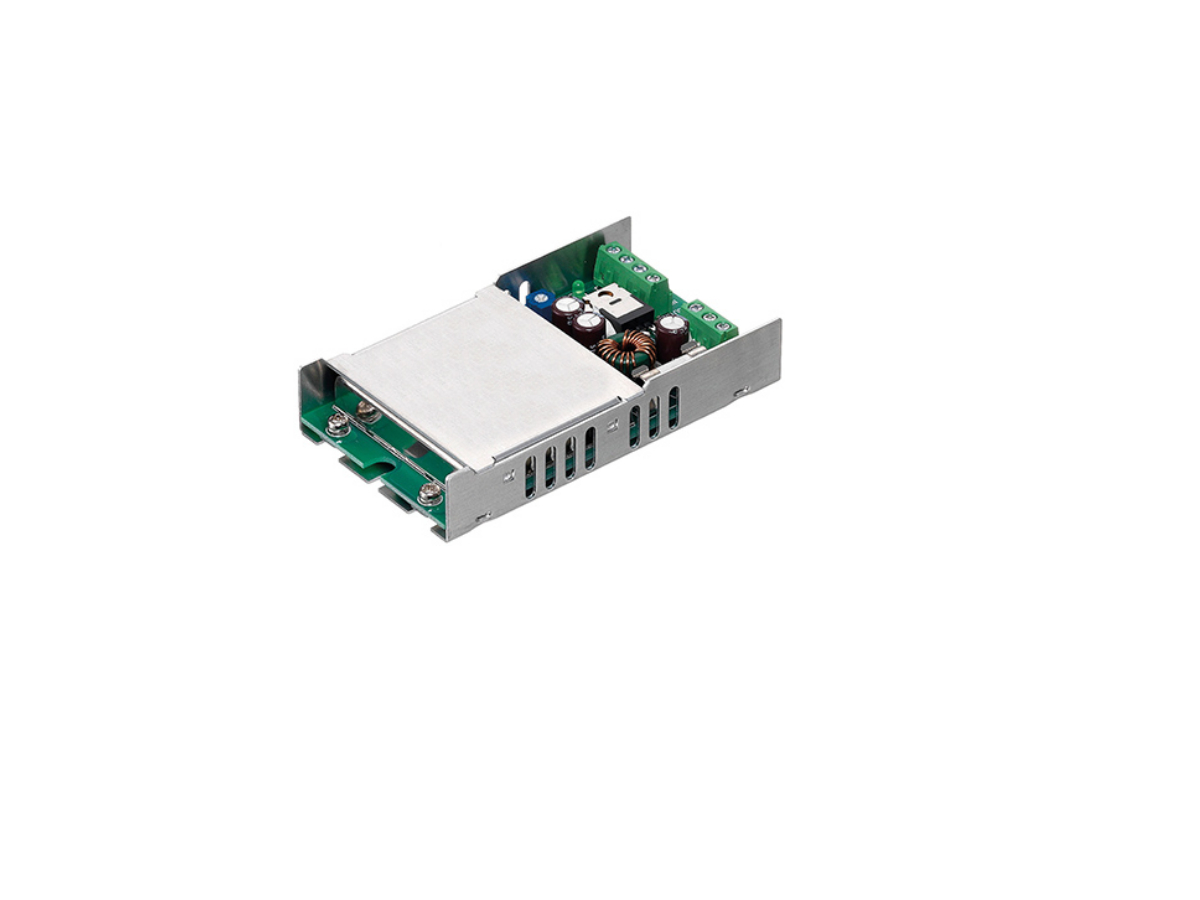

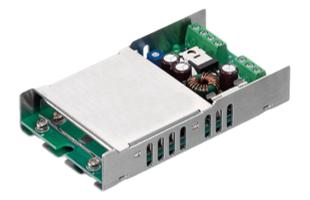

ENA30-24SW

Key Product Features

Suitable for Multiple Applications
Low Profile
Chassis or Wall Mountable
Wide Input Voltage Ranges
Full Plug & Play Solution
Up to 95% Efficiency

*ENA20W, ENA40 and ENA40W series will be discontinued on 31.08.2023

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	ENA30-24S3P3W	ENA30-24S05W	ENA30-24S12W	ENA30-24S15W	ENA30-24S24W	ENA30-24S28W
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC10 - 40V			DC10 - 40V
Output Voltage / Current	3.3V 6A	5V 6A	12V 2.5A	15V 2A	24V 1.25A	28V 1A
Output Power	30W			30W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 66℃			-40 to 66℃
Cooling Method	Convection			Convection
Dimensions (W x H x D)	57.2x19.1x101.6mm			57.2x19.1x101.6mm
Safety Agency Approvals
Technical Data	ENA30-24S3P3W	ENA30-24S05W	ENA30-24S12W	ENA30-24S15W	ENA30-24S24W	ENA30-24S28W
Performance Data	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request
Reliability Data
