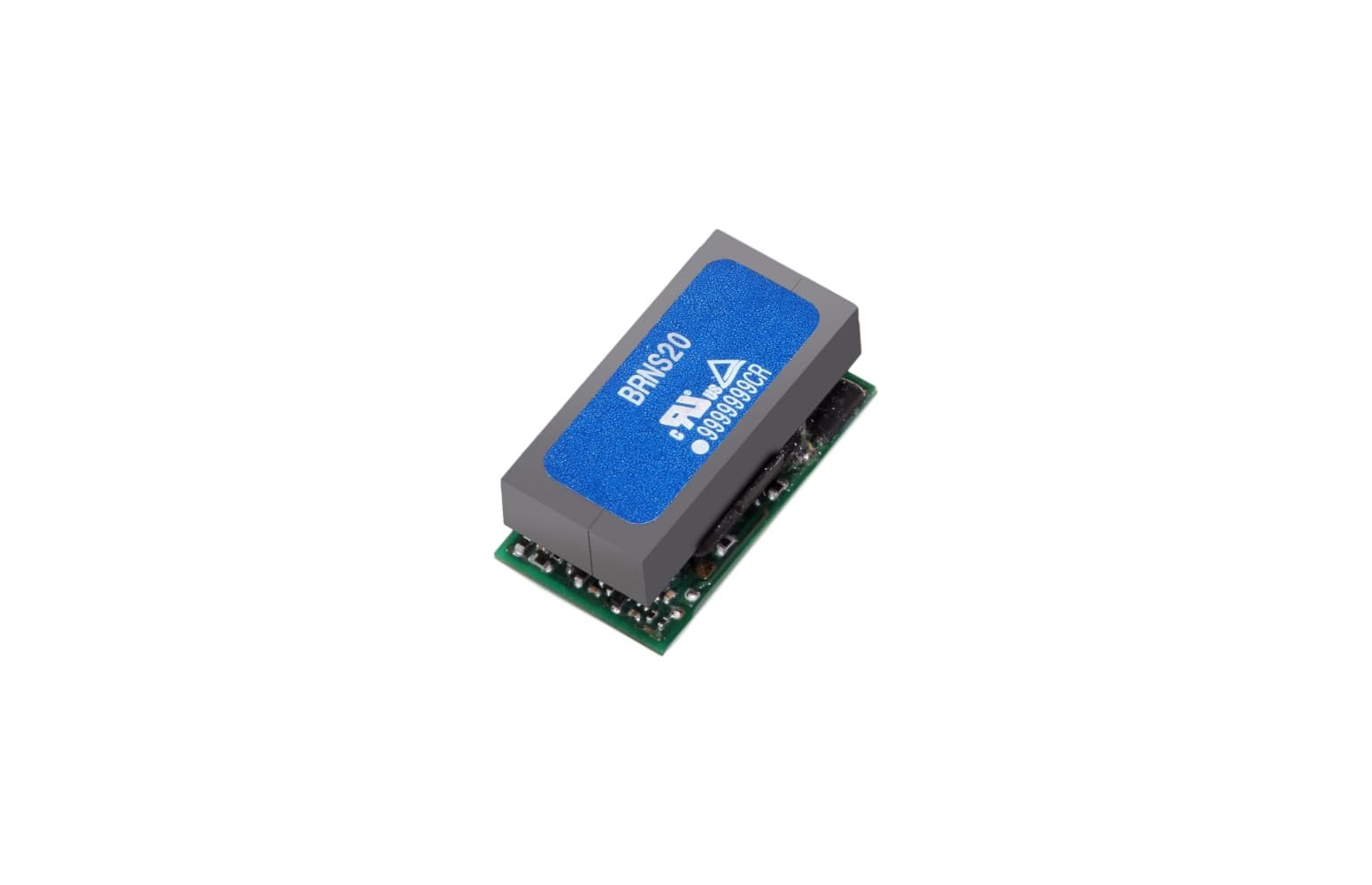

BRNS20

BRNS20

NRND

Options

(For detailed information, please refer to the instruction manual)

  R: Positive logic remote on/off
  I: No clock output for frequency synchronization
  Y1: Suitable control for external capacitor over 470 μF
string(495) "
BRN(1)  S(2)  20(3)  -  □(4)
(1) Series name
(2) Single output
(3) Output current
  6: 6A
  12: 12A
  20: 20A
(4) Optional
  R: Positive logic remote on/off
  I: No clock output for frequency synchronization
  Y1: Suitable control for external capacitor over 470 μF"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • How To Remove BRNS/BRFS Series From A PWB
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

BRN(1)  S(2)  20(3)  -  □(4)

(1) Series name
(2) Single output
(3) Output current
  6: 6A
  12: 12A
  20: 20A
(4) Optional
  R: Positive logic remote on/off
  I: No clock output for frequency synchronization
  Y1: Suitable control for external capacitor over 470 μF
Basic Specification BRNS20
  Check Stock
Input Voltage Range DC3.0 - 14.4V
Output Voltage / Current 1.2V 20.0A
Output Power
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 to 95%RH (Non condensing) *
Cooling Method Convection/Forced air
Dimensions (W x H x D) 20.3x8.5x11.4mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
