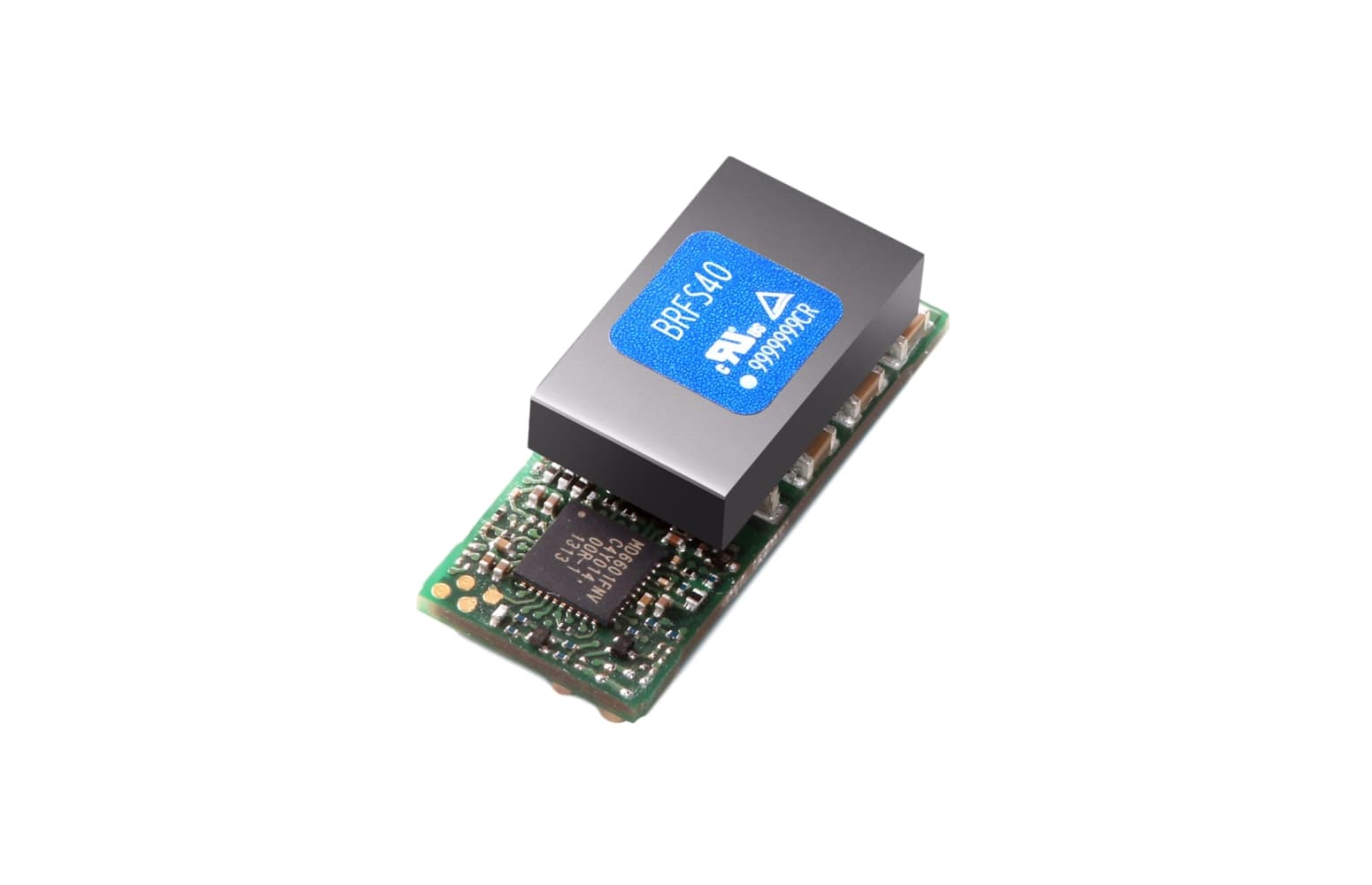

BRFS40

BRFS40

NRND

BRFS50 and BRFS50L models discontinued.
Please refer to the BRFS60 model as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100)
string(811) "
BRF(1)  S(2)  50(3)  L(4)  -  □(5)

(1) Series name
(2) Single output
(3) Output current
　　　30: 30A
　　　40: 40A
　　　50: 50A
　　　60: 60A
　　100: 100A
　　120: 120A
　　150: 150A
(4) Type
　　　Blank: Standard type
　　　L: Low profile type (only 50A)
　　　S: Small type (only 60A)
(5) Optional
　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100) "

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • How To Remove BRNS/BRFS Series From A PWB
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

BRF(1)  S(2)  50(3)  L(4)  -  □(5)


(1) Series name
(2) Single output
(3) Output current
　　　30: 30A
　　　40: 40A
　　　50: 50A
　　　60: 60A
　　100: 100A
　　120: 120A
　　150: 150A
(4) Type
　　　Blank: Standard type
　　　L: Low profile type (only 50A)
　　　S: Small type (only 60A)
(5) Optional
　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100)
Basic Specification BRFS40
  Check Stock
Input Voltage Range DC4.5 - 14.0V
Output Voltage / Current 1.2V 40.0A
Output Power
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air
Dimensions (W x H x D) 33.0x10.9x13.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data BRFS40
Performance Data
EMC Data
Expected Life N/A
MTBF
Reliability Data
