PRODUCTS DC-DC BRFS SERIES BRFS30
Enquire

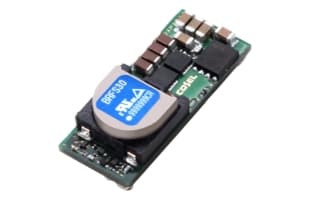

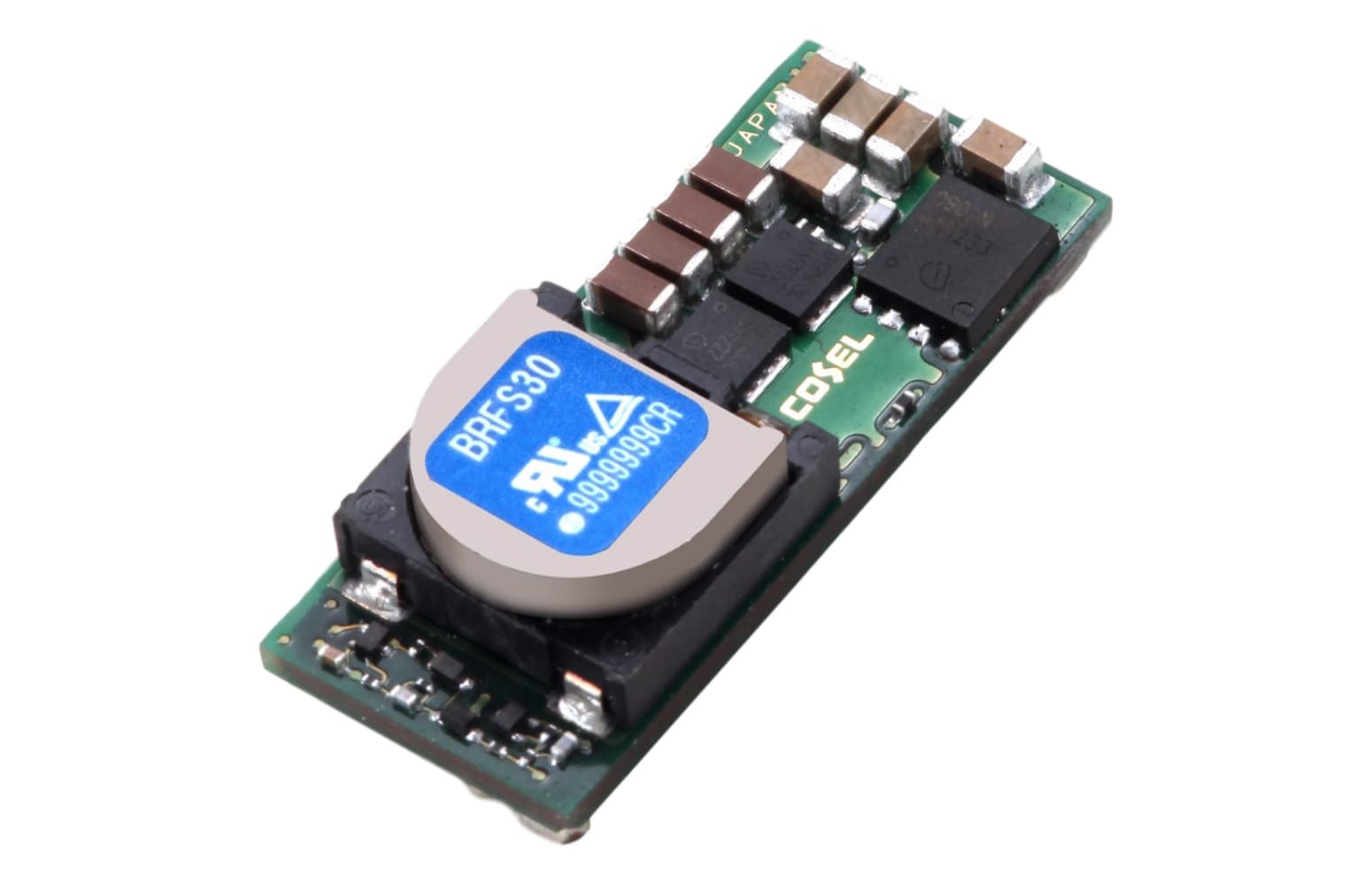

BRFS30

BRFS30

NRND

BRFS50 and BRFS50L models discontinued.
Please refer to the BRFS60 model as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100)
string(811) "
BRF(1)  S(2)  50(3)  L(4)  -  □(5)

(1) Series name
(2) Single output
(3) Output current
　　　30: 30A
　　　40: 40A
　　　50: 50A
　　　60: 60A
　　100: 100A
　　120: 120A
　　150: 150A
(4) Type
　　　Blank: Standard type
　　　L: Low profile type (only 50A)
　　　S: Small type (only 60A)
(5) Optional
　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100) "

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • How To Remove BRNS/BRFS Series From A PWB
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

BRF(1)  S(2)  50(3)  L(4)  -  □(5)


(1) Series name
(2) Single output
(3) Output current
　　　30: 30A
　　　40: 40A
　　　50: 50A
　　　60: 60A
　　100: 100A
　　120: 120A
　　150: 150A
(4) Type
　　　Blank: Standard type
　　　L: Low profile type (only 50A)
　　　S: Small type (only 60A)
(5) Optional
　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100)
Basic Specification BRFS30
  Check Stock
Input Voltage Range DC4.5 - 14.0V
Output Voltage / Current 1.2V 30.0A
Output Power
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air
Dimensions (W x H x D) 33.0x9.5x13.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data BRFS30
Performance Data
EMC Data
Expected Life N/A
MTBF
Reliability Data
