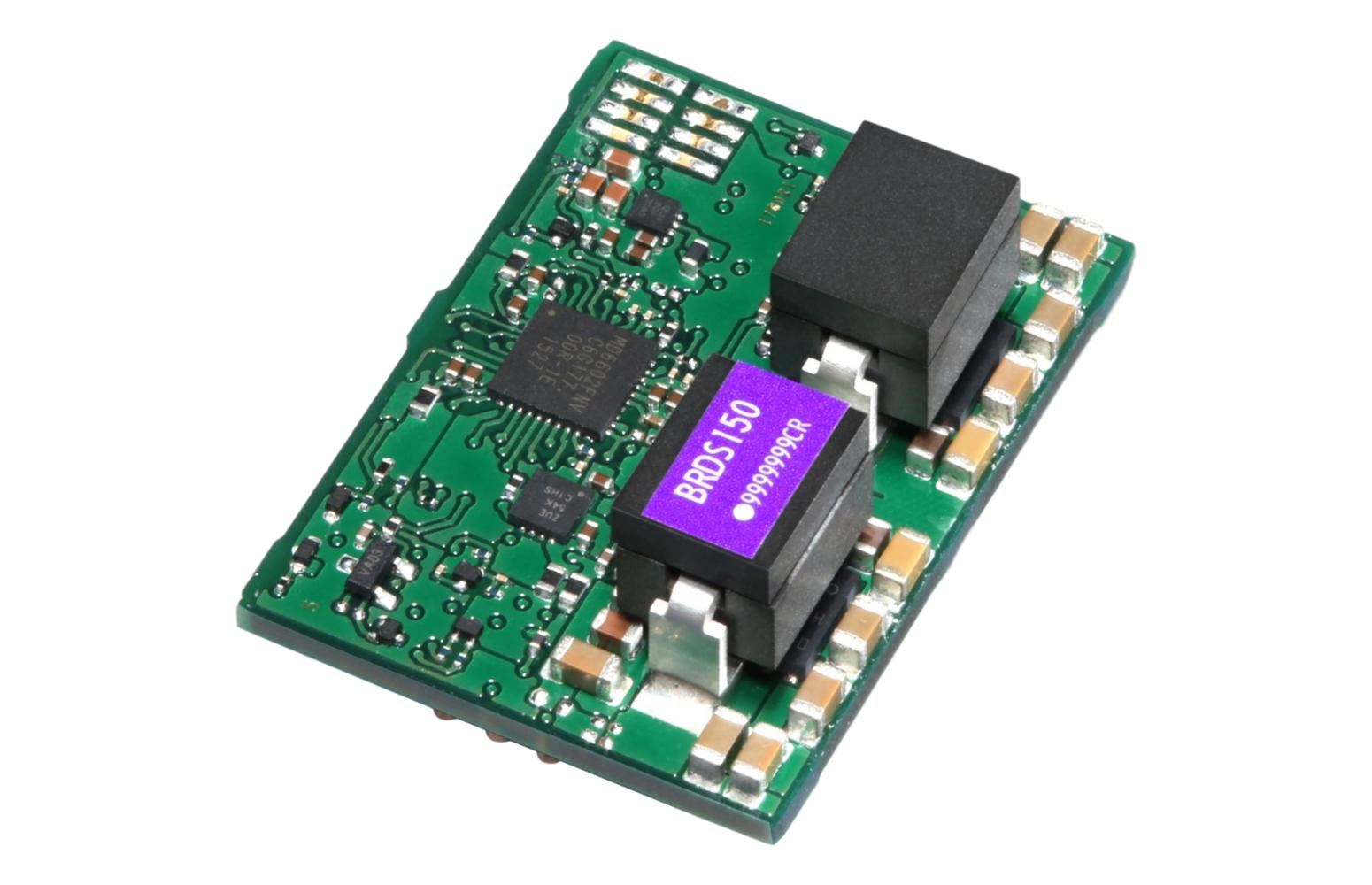

BRDS150

BRDS150

Key Product Features

  • Non-Isolated DC-DC Converter (POL)
  • Fast Transient Response
  • Built in Remote On/Off & Power Good
  • PMBus Interface
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • Remote On/Off
  • Constant Current
  • Alarm
  • Parallel Function
  • < 1U High
  • Communication Function
  • PMBus

Options

(For detailed information, please refer to the instruction manual)

 R: Positive logic remote on/off
string(451) "
BRD(1)　S(2)　60(3)　S(4)-　□(5)　


(1) Series name
(2) Single output
(3) Output current
 40: 40A
 60: 60A
 100: 100A
 120: 120A
 150: 150A
(4) Type
  Blank: Standard type
  S: Small type (only 60A)
(5) Optional
 R: Positive logic remote on/off
"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • How To Remove BRNS/BRFS Series From A PWB
  • PMBus Communication Manual
  • Application Software (PMBus)
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits
  • PMBus communication manual
  • Remove BRNS/BRFS series from a PWB



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

BRD(1)　S(2)　60(3)　S(4)-　□(5)　



(1) Series name
(2) Single output
(3) Output current
 40: 40A
 60: 60A
 100: 100A
 120: 120A
 150: 150A
(4) Type
  Blank: Standard type
  S: Small type (only 60A)
(5) Optional
 R: Positive logic remote on/off
Basic Specification BRDS150
  Check Stock
Input Voltage Range DC4.5 - 14.0V
Output Voltage / Current 1.2V 150.0A
Output Power
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air
Dimensions (W x H x D) 38.0x13.8x27.7mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data BRDS150
Performance Data
EMC Data
Expected Life N/A
MTBF
Reliability Data
