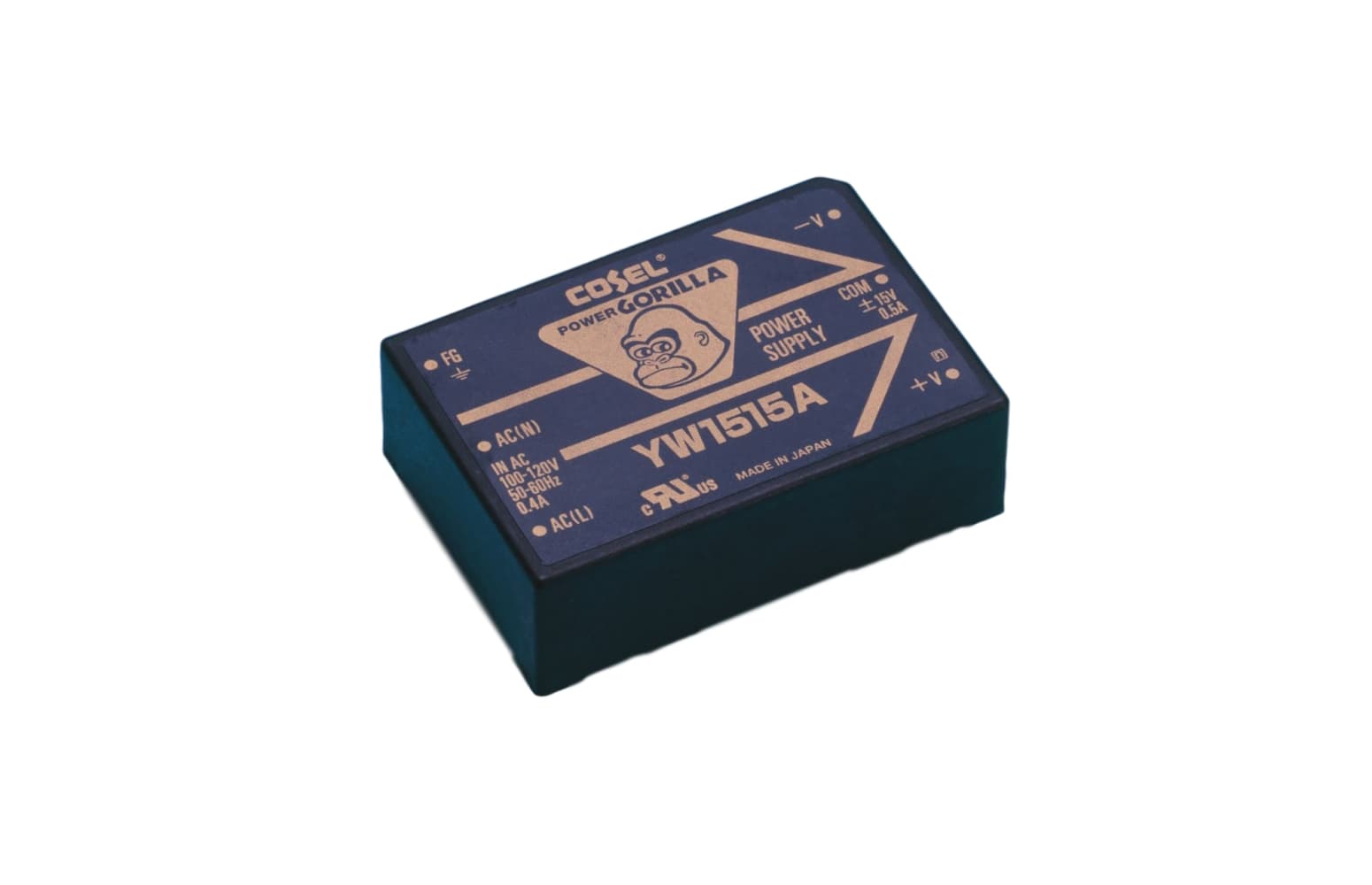

YW15

Discontinued

This series will be discontinued in May 2018. Please refer to the TUHS Series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

Y(1)  W(2)  15(3)  12A(4)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
string(213) "

Y(1)  W(2)  15(3)  12A(4)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Y(1)  W(2)  15(3)  12A(4)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
Basic Specification YW1512A YW1515A
  Check Stock Check Stock
Input Voltage Range AC85 - 132V 1Φ or DC110 - 170V
Output Voltage / Current ±12V (+24V) 0.65A ±15V (+30V) 0.5A
Output Power 15.6W 15.0W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection
Dimensions (W x H x D) 45x20.5x65mm
Safety Agency Approvals UL60950-1, C-UL
Technical Data YW1512A YW1515A
Performance Data
EMC Data On request On request
Expected Life N/A N/A
MTBF
Reliability Data
