PRODUCTS AC-DC YAS SERIES YAS10
Enquire

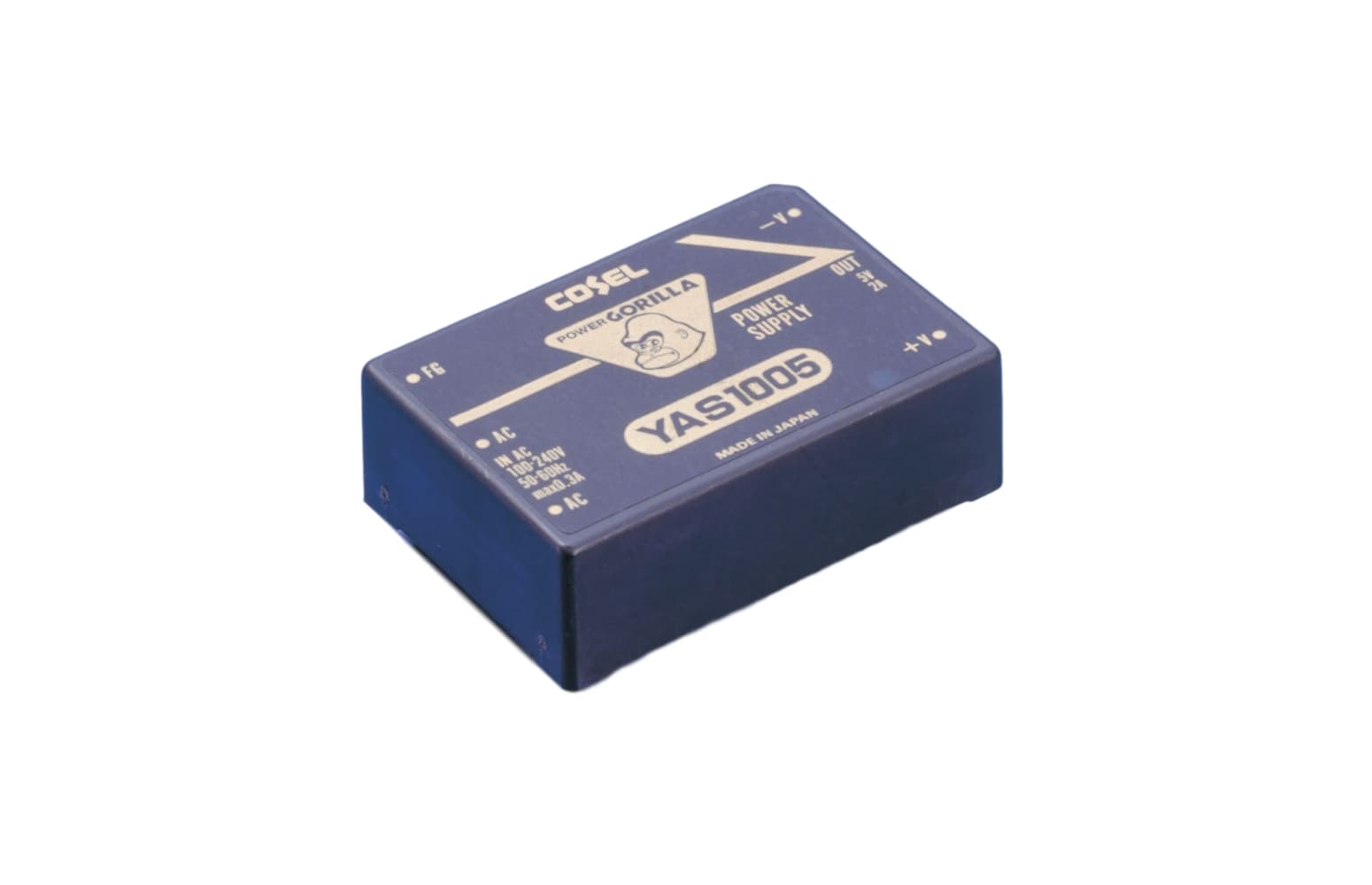

YAS10

YAS10

Discontinued

This series will be discontinued in May 2018. Please refer to the TUHS Series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

YA(1)  S(2)  10(3)  05(4)  □(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E
string(331) "
YA(1)  S(2)  10(3)  05(4)  □(5)
(1) Series name
(2) Single output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

YA(1)  S(2)  10(3)  05(4)  □(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E
Basic Specification YAS1005 YAS1012
  Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current 5V 2.0A 12V 0.9A
Output Power 10.0W 10.8W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection
Dimensions (W x H x D) 45x21.0x65mm
Safety Agency Approvals UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data YAS1005 YAS1012
Performance Data
EMC Data
Expected Life N/A N/A
MTBF
Reliability Data


⌅
