PRODUCTS AC-DC WMA SERIES WMA100F

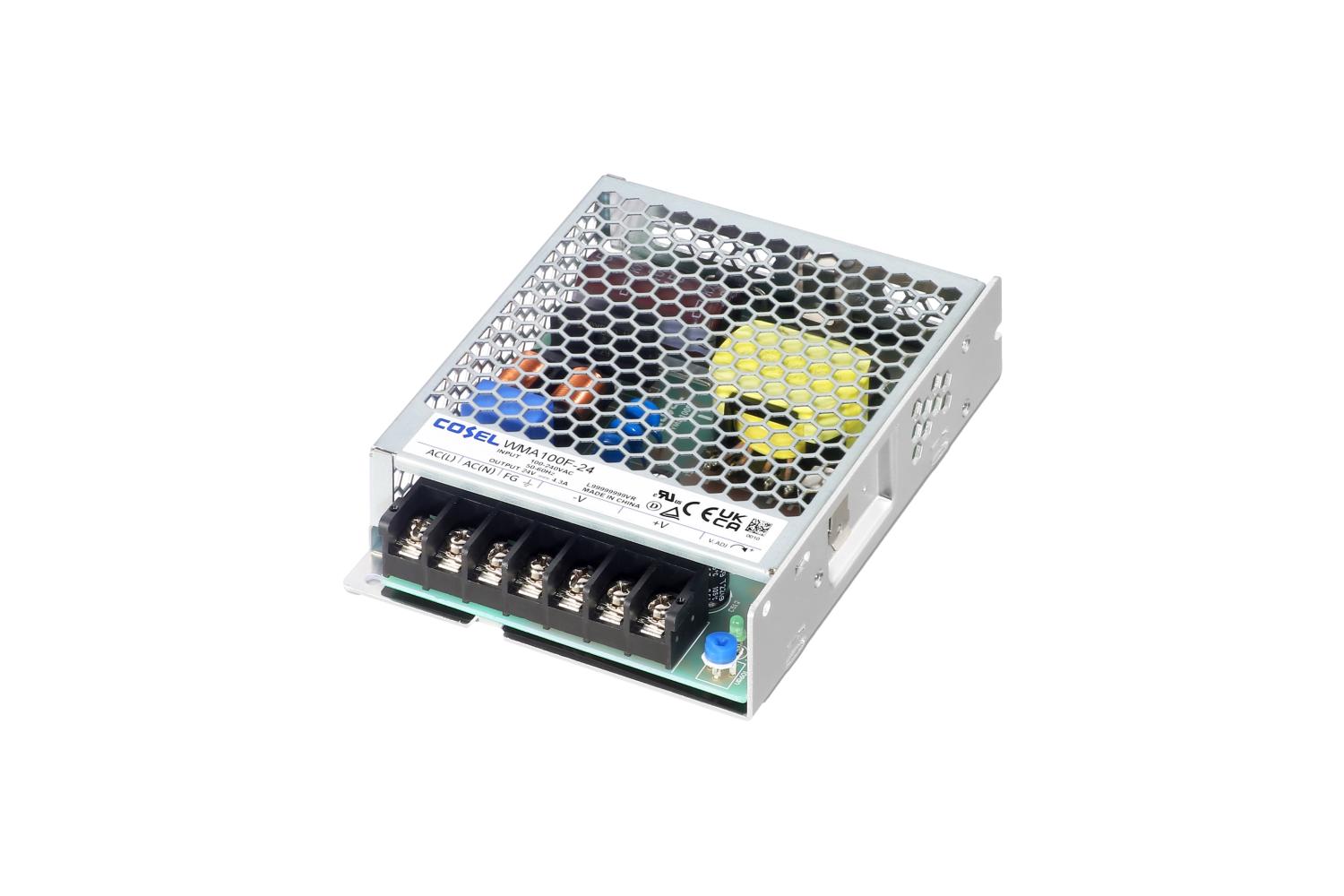

WMA100F

Key Product Features

・For medical electric equipment
(ANSI/AAMI ES60601-1, EN60601-1 3rd)
・Medical Isolation Grade 2MOPP
・4kV isolation
・Low-profile
・Economical design

Technical Features

Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

WM⁽¹⁾　A⁽²⁾　100⁽³⁾　F⁽⁴⁾　-　□⁽⁵⁾　-　□⁽⁶⁾　

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C：With Coating
G：Low leakage current
J1：VH(J.S.T.)connector type
J4：EP(Tyco)connector type
T1：Horizontal terminal block
See 5.1 in Instruction Manual.

string(493) "WM⁽¹⁾　A⁽²⁾　100⁽³⁾　F⁽⁴⁾　-　□⁽⁵⁾　-　□⁽⁶⁾　

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
  C：With Coating
  G：Low leakage current
  J1：VH(J.S.T.)connector type
  J4：EP(Tyco)connector type
  T1：Horizontal terminal block
See 5.1 in Instruction Manual."
