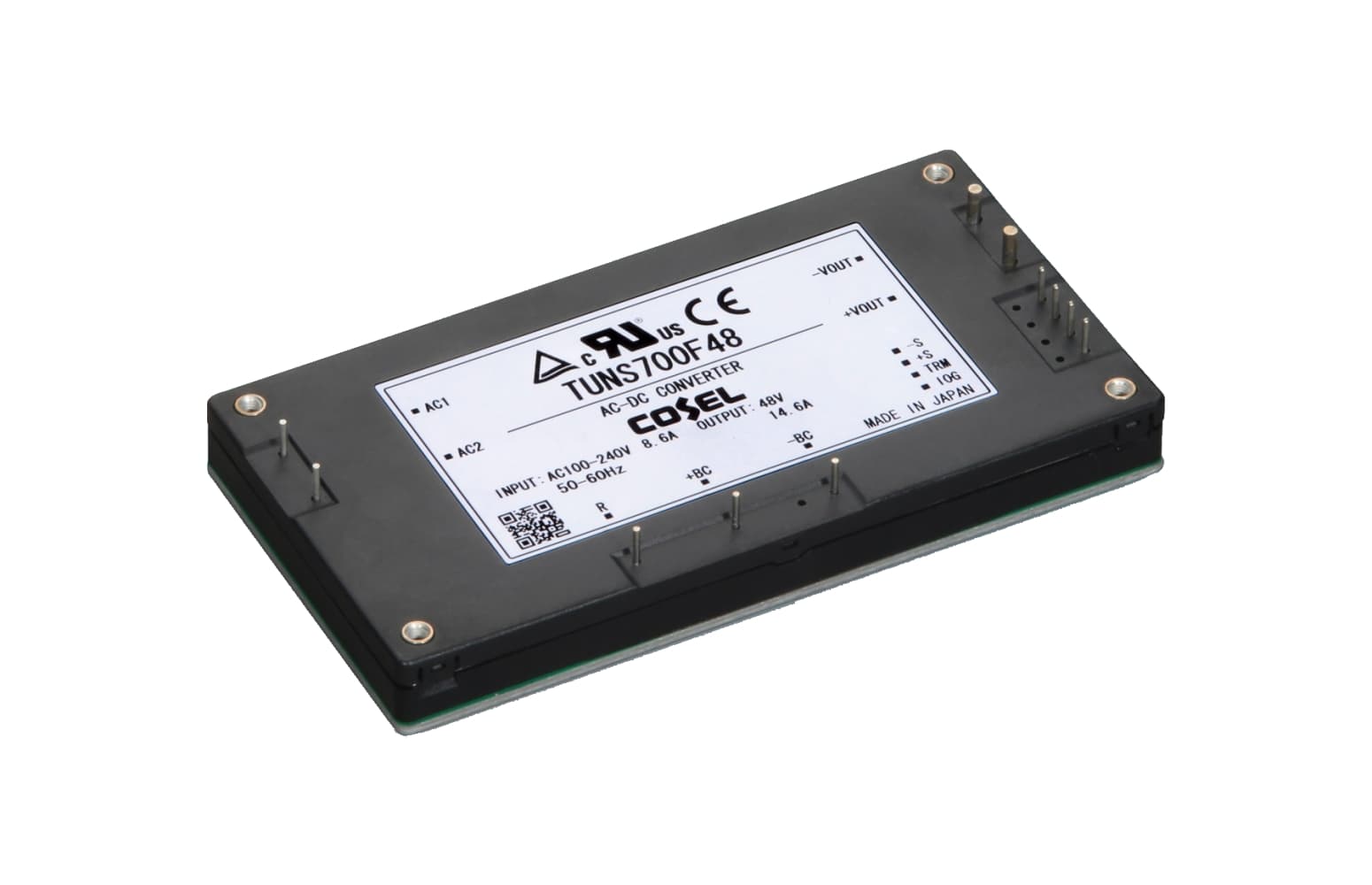

TUNS700F

TUNS700F

Key Product Features

  • TUNS50/100: NRND
  • AC-DC Power Module with built in PFC
  • Operating Temperature (-40 - +100 °C)
  • Peak Current (500W) Parallel Option (700W & 1200W)
  • 5 Year Warranty
  • EN & UL Approved
  • NOTE: This module requires external circuit & heat design. Please refer to the instruction manual. For plug & play ready made solutions please contact us.

Technical Features

  • < 1U High
  • Parallel Function
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

  T: with Mounting hole (φ3.4 thru)
  Y1: Outputvoltage adjustment range ±20% (Only 48V)
  R1: with Remote ON/OFF
  R2: with Remote ON/OFF
      (Low standby power)
 P: Parallel operation Refer to the TUNS700F-P
      (Output voltage variable, Remote sensing disabled)
string(848) "
TUN(1)  S(2)  700(3)  F(4)  48(5)  -  □(6)



(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  T: with Mounting hole (φ3.4 thru)
  Y1: Outputvoltage adjustment range ±20% (Only 48V)
  R1: with Remote ON/OFF
  R2: with Remote ON/OFF
      (Low standby power)
 P: Parallel operation Refer to the TUNS700F-P
      (Output voltage variable, Remote sensing disabled)"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • PCB Reference Design Data
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits (TUNS50/100)
  • Application Manual & Circuits (TUNS300/500/700)
  • Thermal Considerations



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

TUN(1)  S(2)  700(3)  F(4)  48(5)  -  □(6)



(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  T: with Mounting hole (φ3.4 thru)
  Y1: Outputvoltage adjustment range ±20% (Only 48V)
  R1: with Remote ON/OFF
  R2: with Remote ON/OFF
      (Low standby power)
 P: Parallel operation Refer to the TUNS700F-P
      (Output voltage variable, Remote sensing disabled)
Basic Specification TUNS700F12 TUNS700F28 TUNS700F48
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ
Output Voltage / Current 12V 58.4A 28V 25A 48V 14.6A
Output Power 700.8W 700.0W 700.8W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +100℃ (On aluminum base plate) , 20 - 95%RH (Non condensing) *
Cooling Method Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Dimensions (W x H x D) 117.3x12.7x61.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data TUNS700F12 TUNS700F28 TUNS700F48
Performance Data
EMC Data
Expected Life N/A N/A N/A
MTBF
Reliability Data
