PRODUCTS AC-DC TEPS SERIES TEPS45F

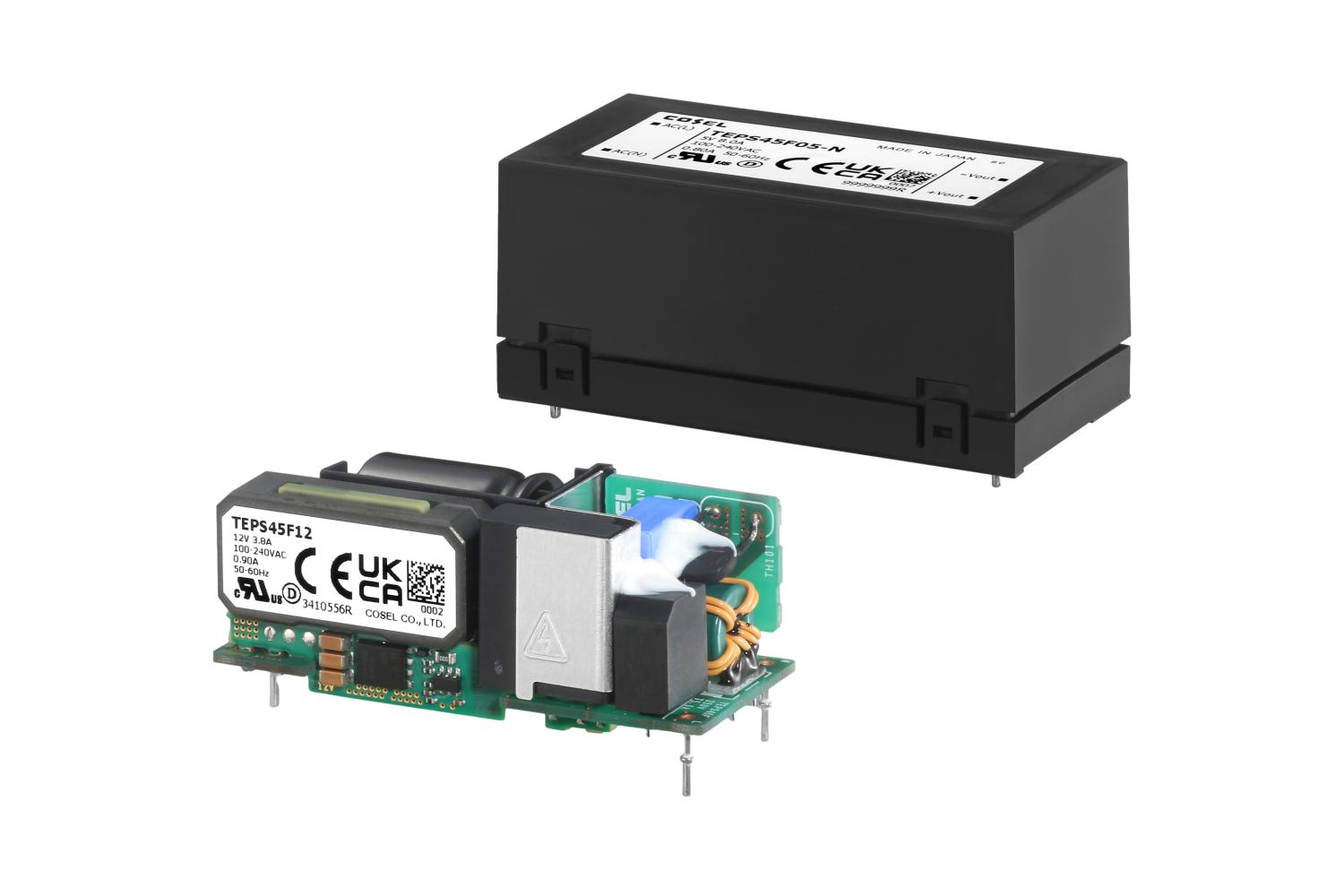

TEPS45F

Key Product Features

• Wide Band Gap Gallium Nitride (GaN) power stage and planar magnetics
• 1x2.3 inch high power density design (TEP45F, 65F)
• 45W and 65W interoperable footprint
• High efficiency up to 93.5%
• 140% peak output current on 12V and 24V models
• PCB mount and dust protective case
• Class Ⅱ: No FG connection is necessary
• 140% peak power available by -H option at 12V and 24V models

Options

(For detailed information, please refer to the instruction manual)

E2: Low leakage current
H: with output peak current (12V,24V)
N: with cover

string(450) "TEP⁽¹⁾  S⁽²⁾  45⁽³⁾  F⁽⁴⁾  □□⁽⁵⁾  -  □⁽⁶⁾
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Low leakage current
H: with output peak current (12V,24V)
N: with cover"

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

CAD Data (DXF)
3D CAD Data (STEP)
- Standard model
- N: with Cover
3D CAD Data (IGES)
- Standard model
- N: with Cover

Safety Certificates

Safety Approvals

TEP⁽¹⁾ S⁽²⁾ 45⁽³⁾ F⁽⁴⁾ □□⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Low leakage current
H: with output peak current (12V,24V)
N: with cover

Basic Specification	TEPS45F05	TEPS45F12	TEPS45F12-H	TEPS45F24	TEPS45F24-H
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	85 - 264VAC 1Φ			85 - 264VAC 1Φ
Output Voltage / Current	5V 8.0A	12V 3.8A	12V 3.8A（peak：5.45A）	24V 1.9A	24V 1.9A（peak：2.75A）
Output Power	40.0Ｗ	45.6Ｗ	45.6Ｗ（65.4W）	45.6Ｗ	45.6Ｗ（66.0W）
Output Voltage Adj Range
Operating Temp (°C)	-10 to +70℃, 20 - 90%RH (Non condensing) *			-10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method	Convection/Forced air *			Convection/Forced air *
Dimensions (W x H x D)	25.4×24.0×58.5㎜			25.4×24.0×58.5㎜
Safety Agency Approvals	UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1			UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1
Technical Data	TEPS45F05	TEPS45F12	TEPS45F12-H	TEPS45F24	TEPS45F24-H
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
