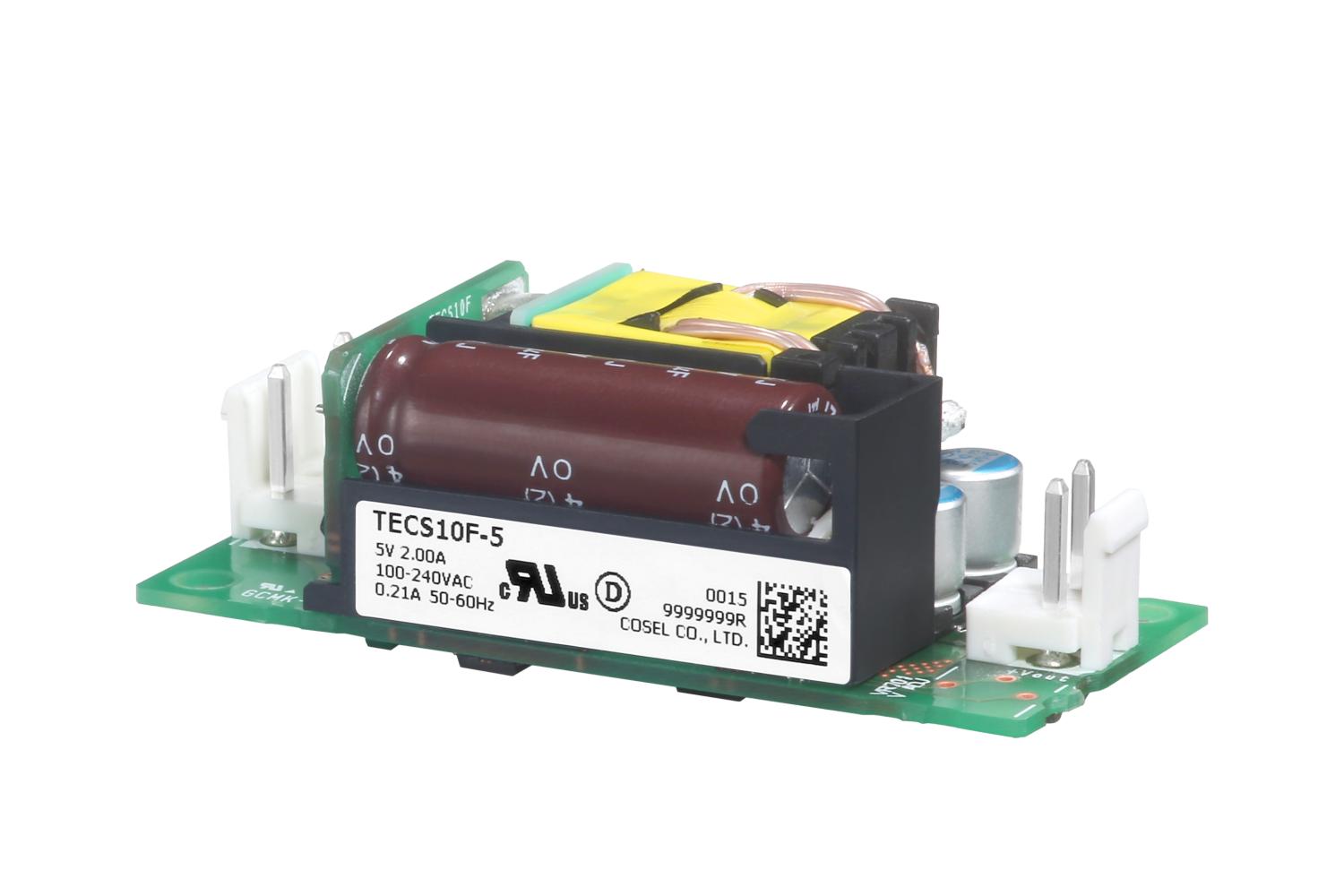

TECS10F

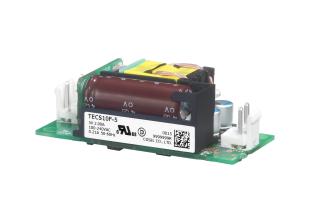

TECS10F

Key Product Features

• Wide Band Gap Gallium Nitride (GaN) power stage and planar magnetics
• 10W - 20W, 45W - 65W interoperable footprint
• High efficiency up to 93.5%
• Connector interface and dust protective case
• Class Ⅱ: No FG connection is necessary
• 140% peak power available by -H option at 12V and 24V models(45W, 65W)

Technical Features

  • Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

TEC(1)  S(2)  10(3)  F(4)  -  □□(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
string(372) "
TEC(1)  S(2)  10(3)  F(4)  -  □□(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals

TEC(1)  S(2)  10(3)  F(4)  -  □□(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
Basic Specification TECS10F-5 TECS10F-12 TECS10F-15 TECS10F-24
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range 85 - 264VAC 1Φ 85 - 264VAC 1Φ
Output Voltage / Current 5V 2.0A 12V 0.85A 15V 0.7A 24V 0.45A
Output Power 10.0W 10.2W 10.5W 10.8W
Output Voltage Adj Range
Operating Temp (°C) -20 to +85℃, 20 - 90%RH (Non condensing) * -20 to +85℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 25.4x21.1x58.5mm 25.4x21.1x58.5mm
Safety Agency Approvals UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1) ,
EN62368-1		 UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1) ,
EN62368-1
Technical Data TECS10F-5 TECS10F-12 TECS10F-15 TECS10F-24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
