SNTUNS100F

SNTUNS100F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  J: Connector type
string(408) "
SNTUN(1)  S(2)  100(3)  F(4)  05(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J: Connector type"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

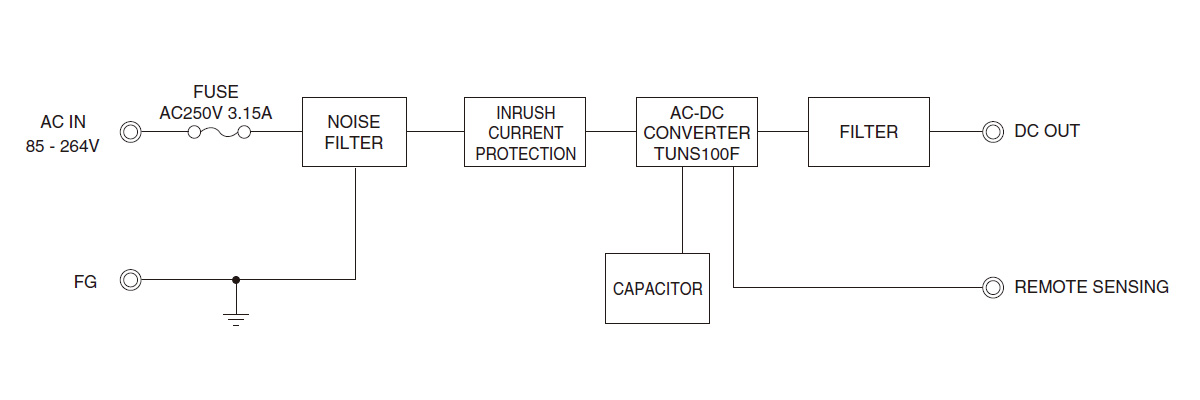

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SNTUN(1)  S(2)  100(3)  F(4)  05(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J: Connector type
Basic Specification SNTUNS100F05 SNTUNS100F12 SNTUNS100F24
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ
Output Voltage / Current 5V 20A 12V 8.4A 24V 4.2A
Output Power 100.0W 100.8W
Output Voltage Adj Range 4.50 - 5.50V 10.80 - 13.20V 21.60 - 26.40V
Operating Temp (°C) -20 to +95℃ (On aluminum base plate) , 20 - 95%RH (Non condensing) *
Cooling Method Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Dimensions (W x H x D) 74x37x150mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN
Technical Data SNTUNS100F05 SNTUNS100F12 SNTUNS100F24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
