PRODUCTS AC-DC RMC SERIES RMC50A

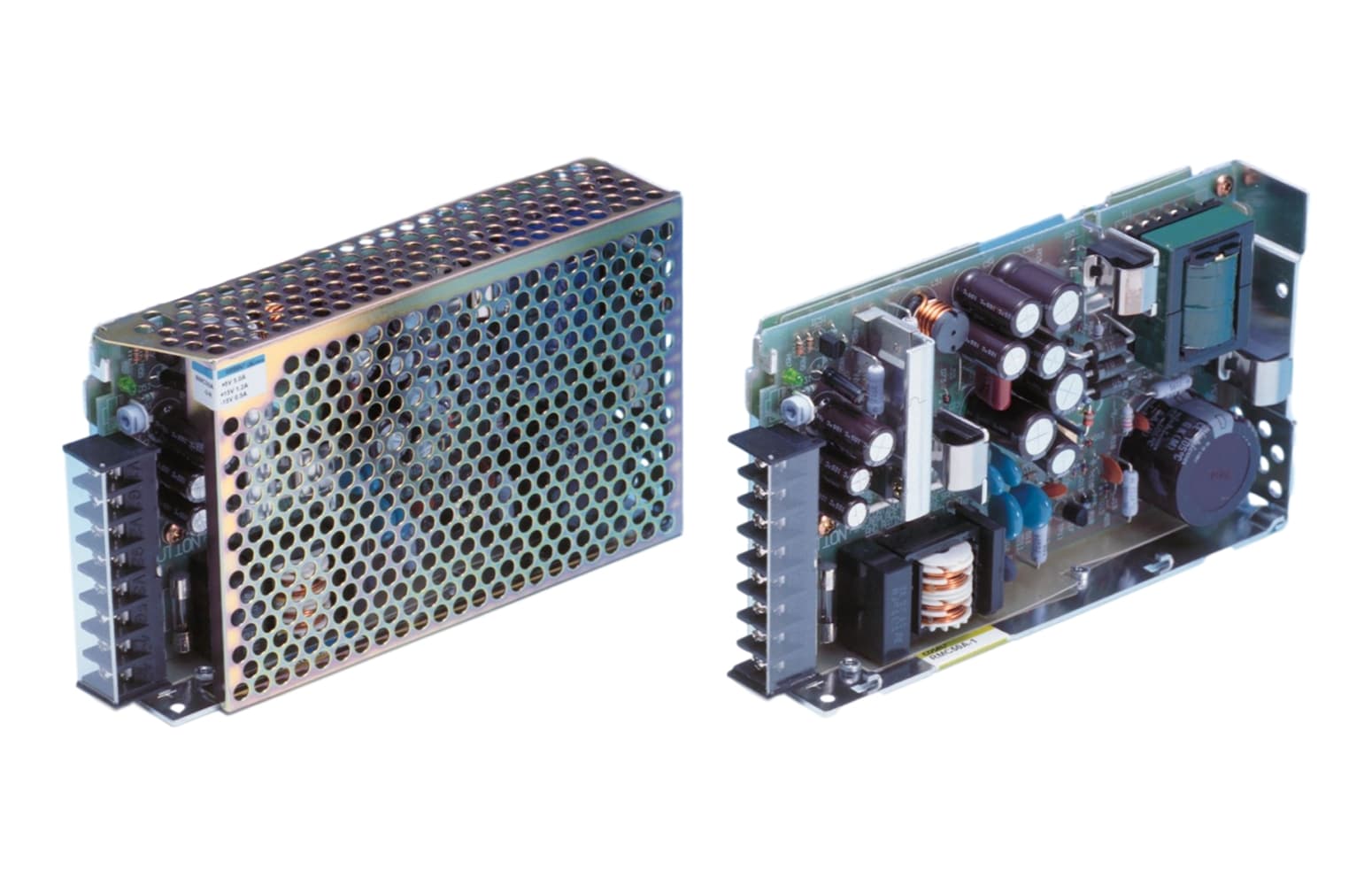

RMC50A

Discontinued

This series will be discontinued in Sep 2017. Please refer to the LDC Series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover

string(399) "RMC⁽¹⁾  50A⁽²⁾  -  1⁽³⁾  -  □⁽⁴⁾
(1) Series name
(2) Output wattage
(3) Output voltage combination
(4) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover"

Product Data

Datasheet
Instruction Manual
Accessories
Glossary of Technical Terms

Drawings

Safety Certificates

RMC⁽¹⁾ 50A⁽²⁾ - 1⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Output voltage combination
(4) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover

Basic Specification	RMC50A-1	RMC50A-2
	Check Stock	Check Stock
Input Voltage Range	AC85 - 132V 1Φ or DC110 - 170V
Output Voltage / Current	V1: +5V 5.0A V2: +12V 1.5A (Peak: 2A) V3: -12V 0.5A	V1 :+5V 5.0A V2 :+15V 1.2A V3 :-15V 0.5A
Output Power	49W (Peak: 55W)	50.5W
Output Voltage Adj Range	Refer to datasheet
Operating Temp (°C)	-10 to +60℃, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE)
Cooling Method	Convection
Dimensions (W x H x D)	31x93x155mm
Safety Agency Approvals	UL60950-1, C-UL Complies with DEN-AN
Technical Data	RMC50A-1	RMC50A-2
Performance Data
EMC Data	On request	On request
Expected Life
MTBF
Reliability Data
