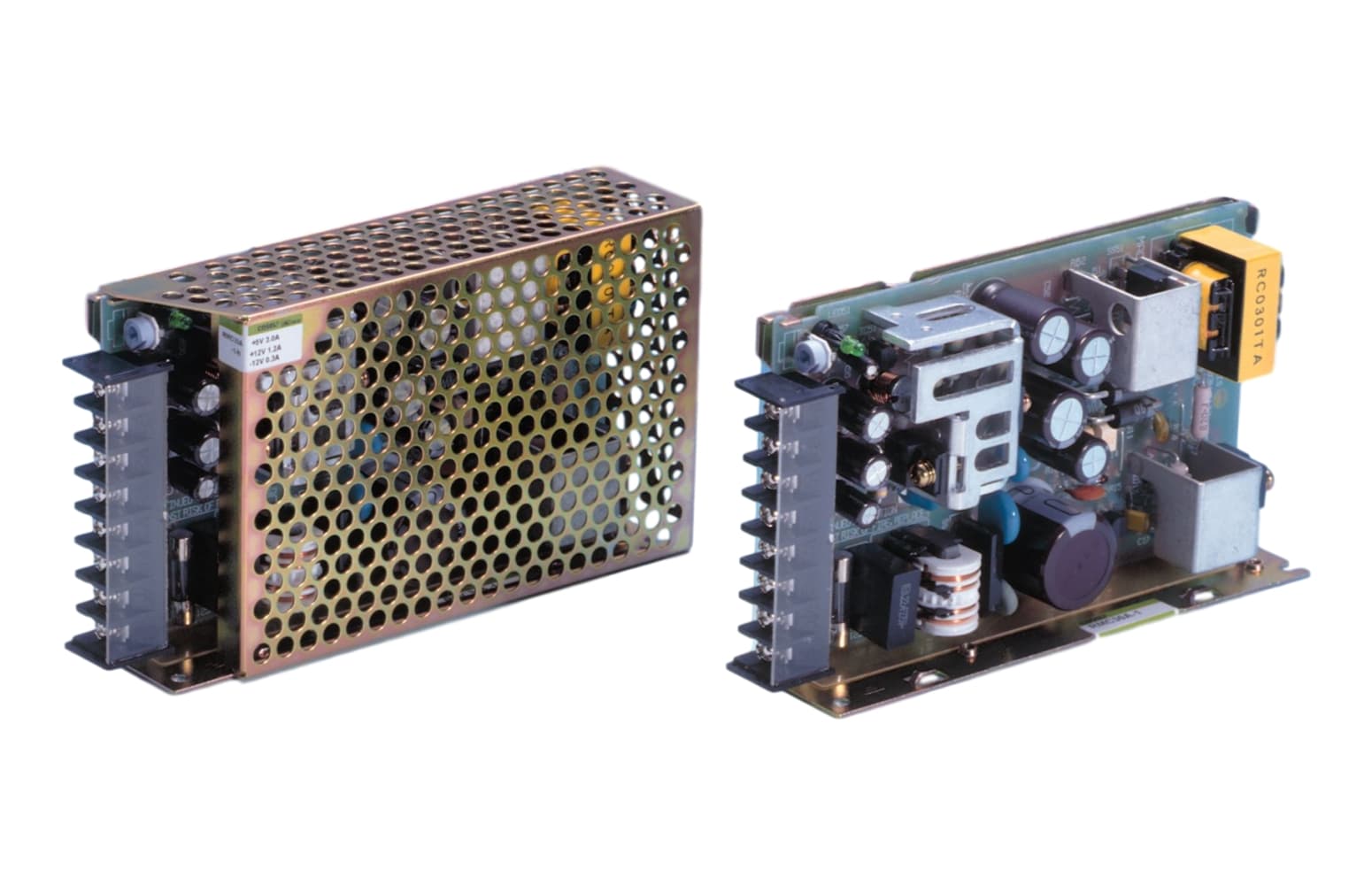

RMC30A
Discontinued
This series will be discontinued in Sep 2017. Please refer to the LDC Series as our recommended replacement.
Options
Drawings
Safety Certificates
RMC(1) 30A(2) - 1(3) - □(4)
(1) Series name(2) Output wattage
(3) Output voltage combination
(4) Optional
G: Low leakage current
J: Connector type
N: with Cover
| Basic Specification | RMC30A-1 | RMC30A-2 |
|---|---|---|
| Check Stock | Check Stock | |
| Input Voltage Range | AC85 - 132V 1Φ or DC110 - 170V | |
| Output Voltage / Current | V1 :+5V 3.0A V2 :+12V 1.2A V3 :-12V 0.3A |
V1 :+5V 3.0A V2 :+15V 0.5A V3 :-15V 0.5A |
| Output Power | 33W | 30W |
| Output Voltage Adj Range | Refer to datasheet | |
| Operating Temp (°C) | -10 to +60℃, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE) | |
| Cooling Method | Convection | |
| Dimensions (W x H x D) | 31x80x135mm | |
| Safety Agency Approvals | UL60950-1, C-UL Complies with DEN-AN | |
| Technical Data | RMC30A-1 | RMC30A-2 |
| Performance Data | ||
| EMC Data | On request | On request |
| Expected Life | ||
| MTBF | ||
| Reliability Data | ||
